User manual Version 1.3

4-Port DIN-Rail Serial Device Server SE5404D

Copyright © 2011 Atop Technologies, Inc.

All rights reserved. Designed in Taiwan.

- 12 -

2. Hardware Setup

NOTE:

1. SE5404D (RS-232/422/485 DB9 without isolation ),

2. SE5404D-TB (RS422/485 TB5 with isolation)

3. SE5404D-Sis (RS422/485 TB5 with isolation)

4. You can press the Default button of SE5404D to reset the settings to the default value

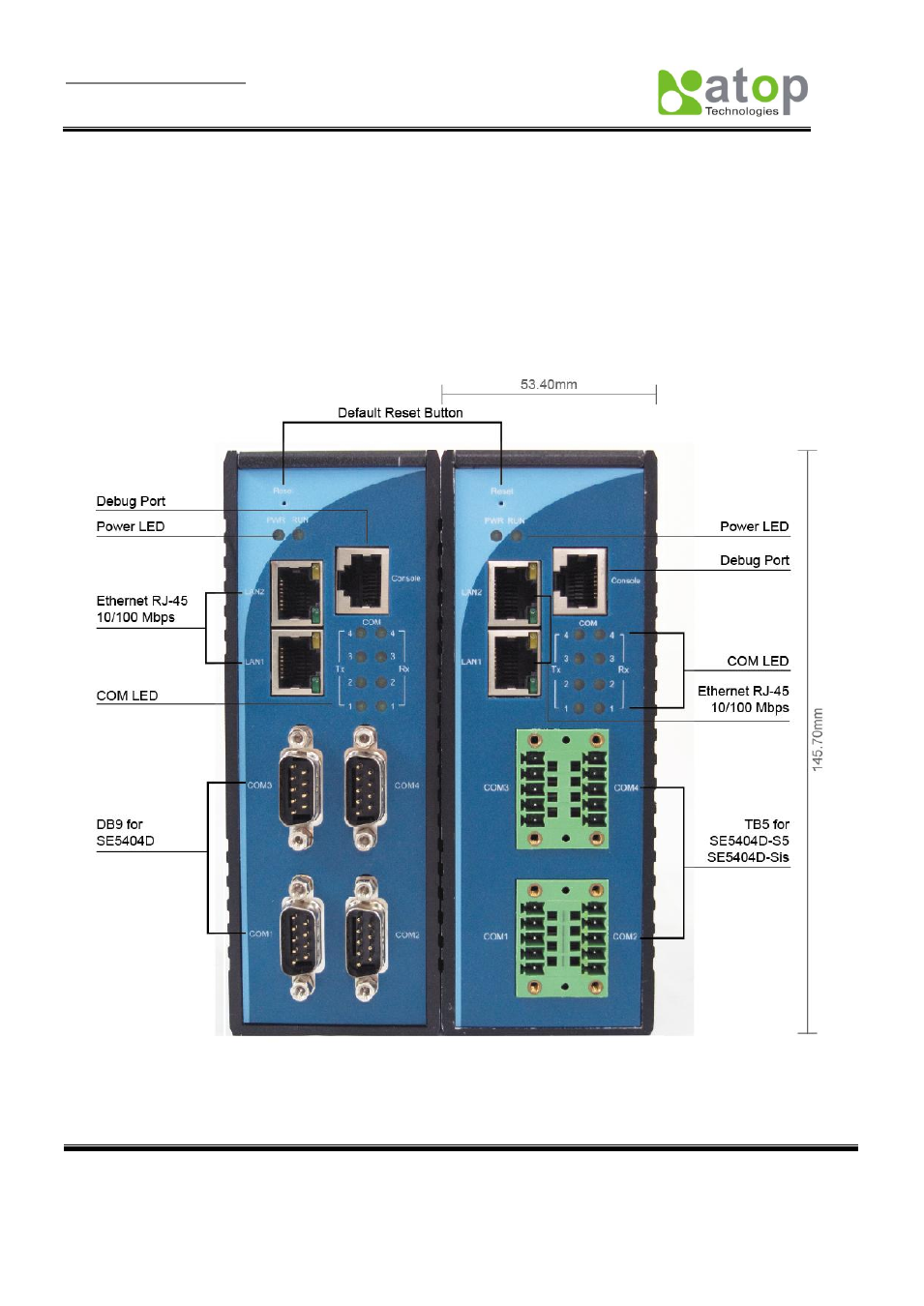

Figure 2.1 Show the names of SE5404D components.

Figure 2.1 Front Panel Interfaces
