User manual Version 1.3
4-Port DIN-Rail Serial Device Server SE5404D
Copyright © 2011 Atop Technologies, Inc.
All rights reserved. Designed in Taiwan.
- 64 -
7. Diagnostics
There are several ways you can check on the status and availability of SE5404D.
7.1 Use Standard TCP/IP Utility ping Command
From Windows Start menu, select Run and Enter
in “ping
If the connection is established, the Reply messages are displayed, otherwise it will indicate Request timed out.

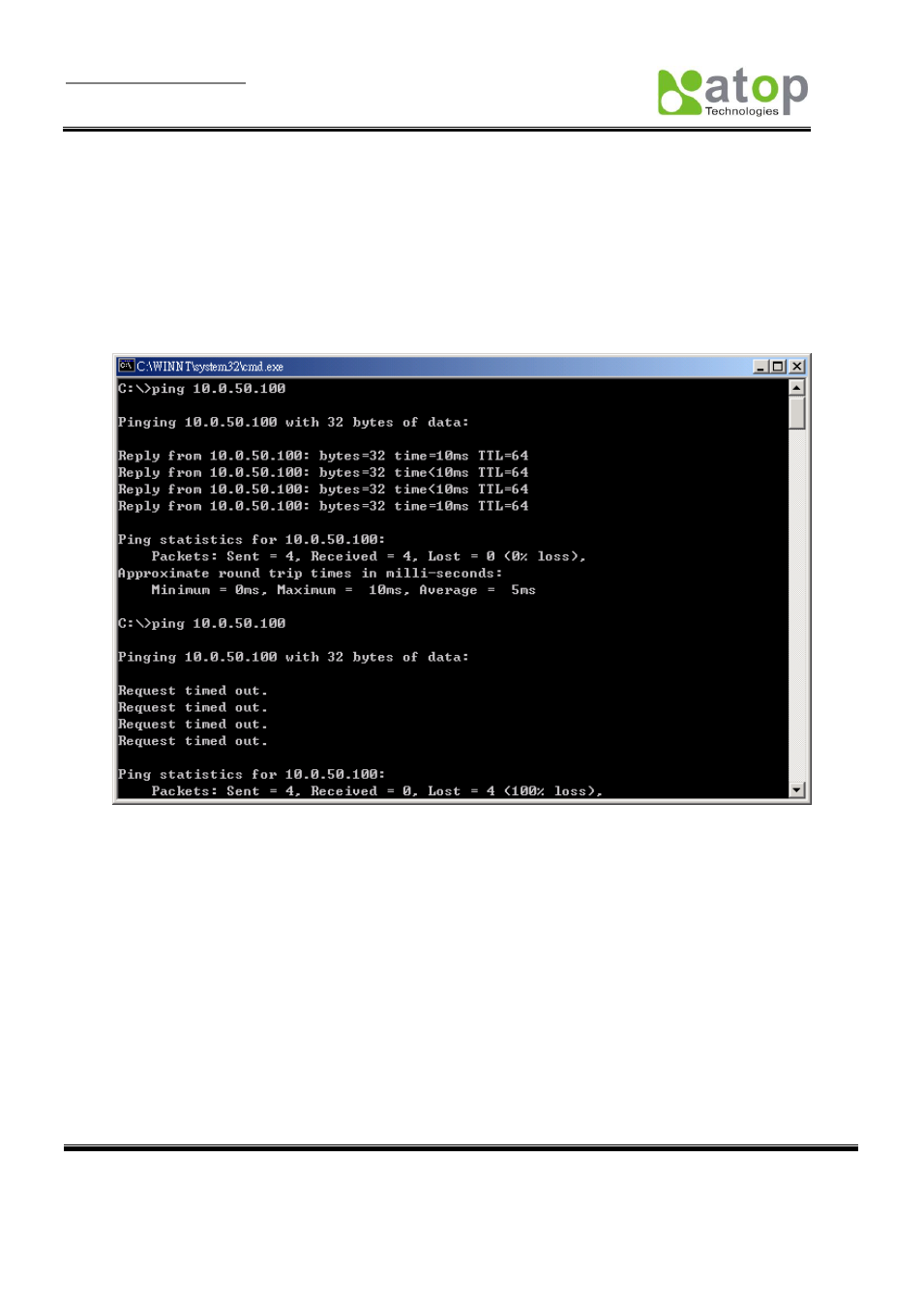

Figure 7.1 Standard TCP/IP utility ping command
7.2 Use Serial Manager Configuration Utility Program
Use Serial Manager Utility configuration program that comes with the product CD or diskette to check on the status
of SE5404D. The status and version can be read from the tool.
