User manual Version 1.3

4-Port DIN-Rail Serial Device Server SE5404D

- 16 -

3.1 Configuration by Serial Manager Utility

3.1.1.Static IP

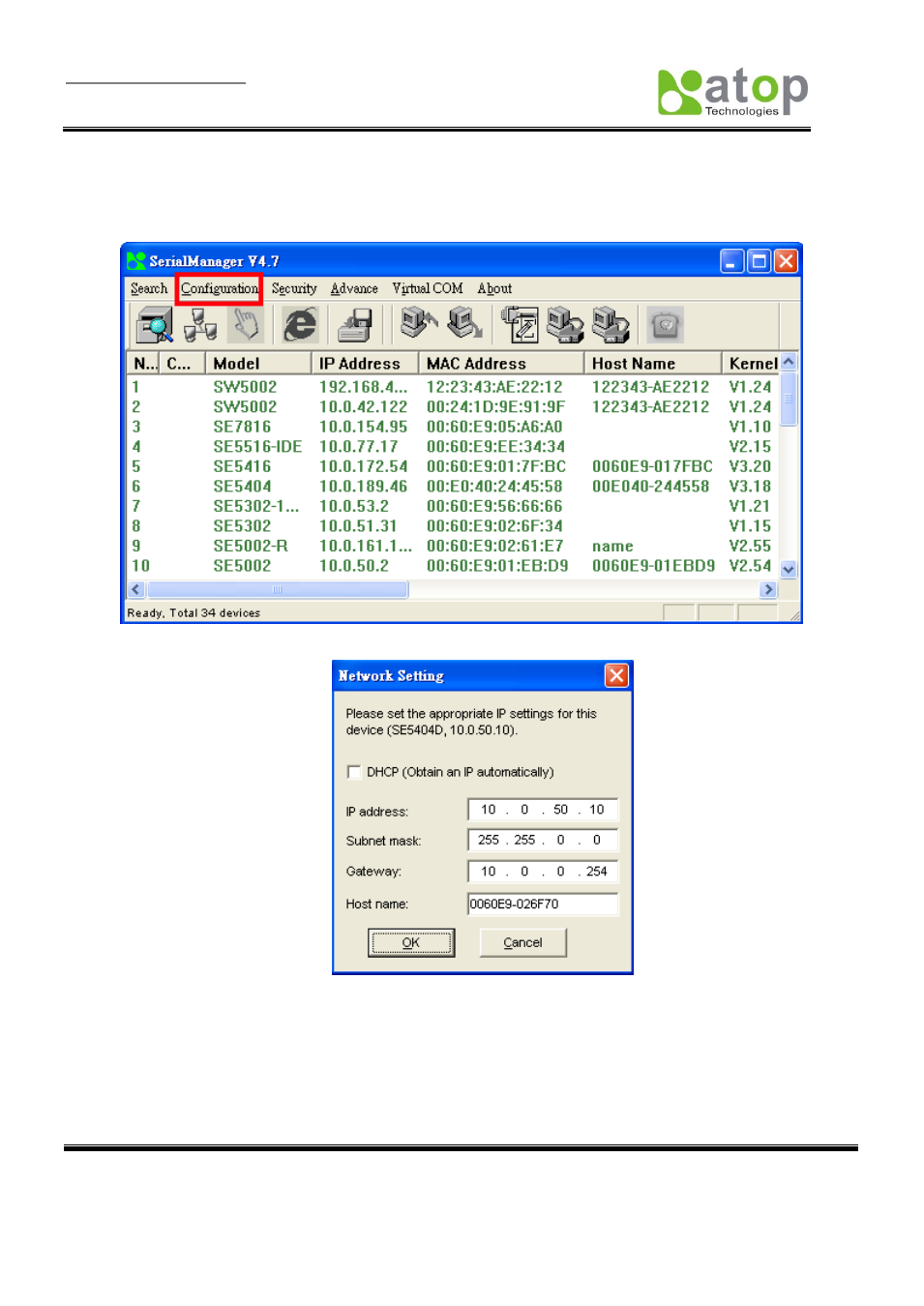

Figure 3.1 Configure by Serial Manager Utility

Figure 3.2 Static IP setup dialog window

3.1.2 DHCP client (Dynamic IP)

A DHCP server can automatically assign the IP address and network settings. SE5404D supports the DHCPclient
function. By default, the DHCP client function on SE5404D is disabled; one can client use Serial Manager Utility
software to search network information automatically by putting a check on Auto IP on Dialog window. (ref Figure
3.1)SE5404D (Figure 3.2) (ref Figure 3.3)SE5404D
