Atop Technology SE5001A User manual - Manual (Page 51)

User Manual Version 1.0
SE5001A Serial Device Server
49
4.2.2 Running Serial/IP in Windows
Find Serial/IP Control Panel from:
 Start->All Programs-> Serial/IP->Control Panel
 In the Windows Control Panel, open the Serial/IP applet.

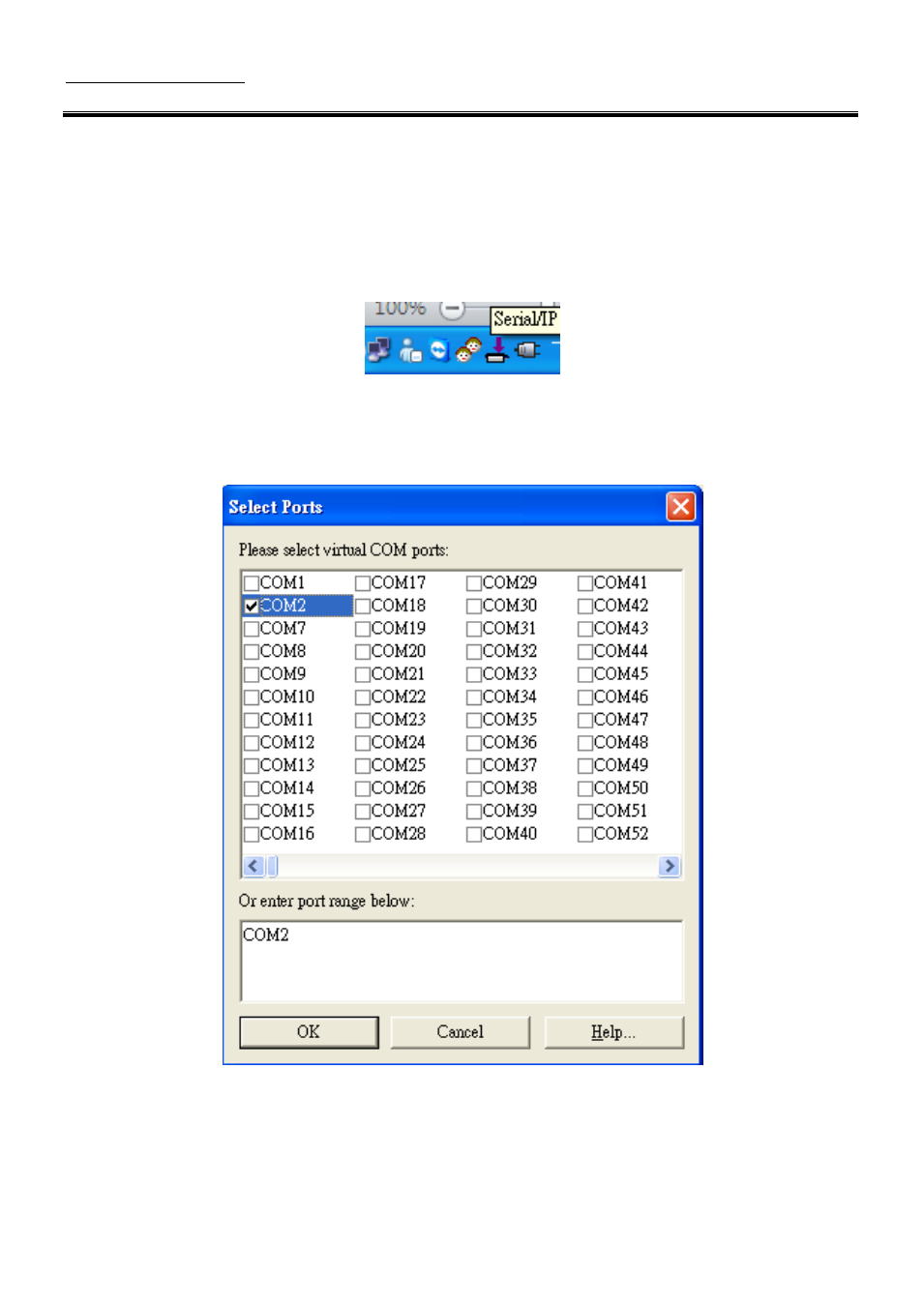

 In the Windows notification area (Figure 4.5), right click in the Serial/IP tray icon and click on Configure to
open the Control Panel.
Figure 4.5 Serial/IP Notification Tray Icon
If no Virtual COM port is selected, a dialog will pop up and asks to select at least one port as the Virtual COM port
before proceeding (Figure 4.6).
Figure 4.6 Select Virtual COM Ports
