User Manual Version 1.0
SE5001A Serial Device Server
20
3.2.6. Configure SE5001A as TCP Client

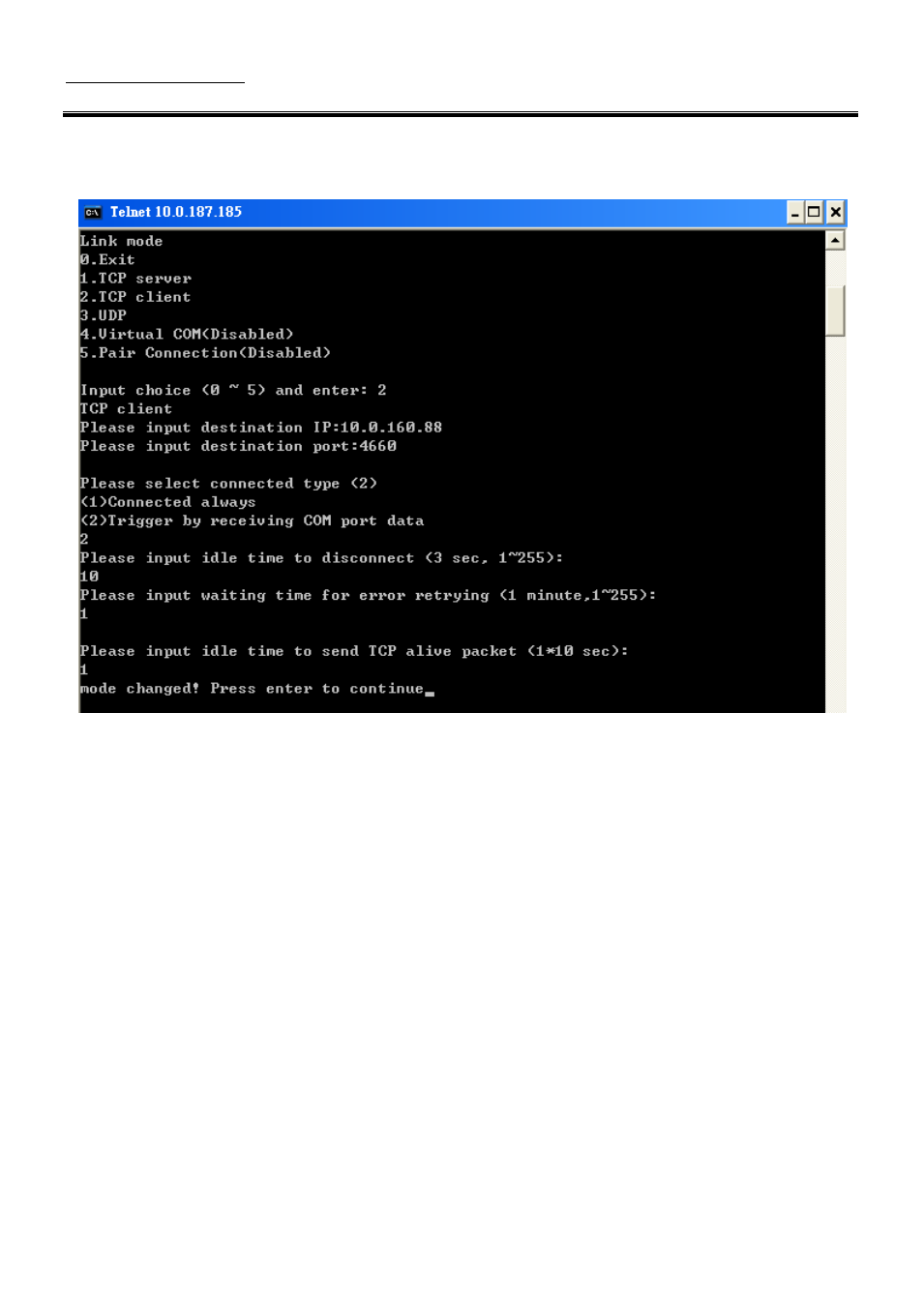

Figure 3.8 Link Mode: TCP Client Setup
 Type 2 in the “Input choice(1~5) and enter：“
 Input destination IP in the “Please input Destination IP：”
 Input destination port in the “Please input Destination port：”
 Select TCP connection behavior: 1 for connect always, 2 for connect on serial data
If 2 is selected, console will prompt for additional configurations.
 Input idle time to disconnect in the “Please input idle time to disconnect(0sec , 1~255)：” (Input 0 to
disable; Input 2 to disconnect TCP connection after 2 seconds of serial Inactivity)
 Input error retrying time in “Please input waiting time for error retrying(0 minute,1~255)：” (Input 0
to disable; Input 2 to try to connect to a TCP Server every 2 minutes)
 Input idle time in “Please input idle time to send TCP alive packet(x*10sec)：”(Input 2 to the send TCP
keep alive packet every 20 seconds)
