User Manual Version 1.0
SE5001A Serial Device Server
27
3.2.13. Accept Control Command from COM port
SE5001A can also accept serial control commands (RFC2217) directly from the COM port. For more details and
information about this function, please contact our Technical Support.
3.2.14. Backup EEPROM to Flash
Select “5” from “Input choice and enter (0~5):” the following screen should appear (Figure 3.16):

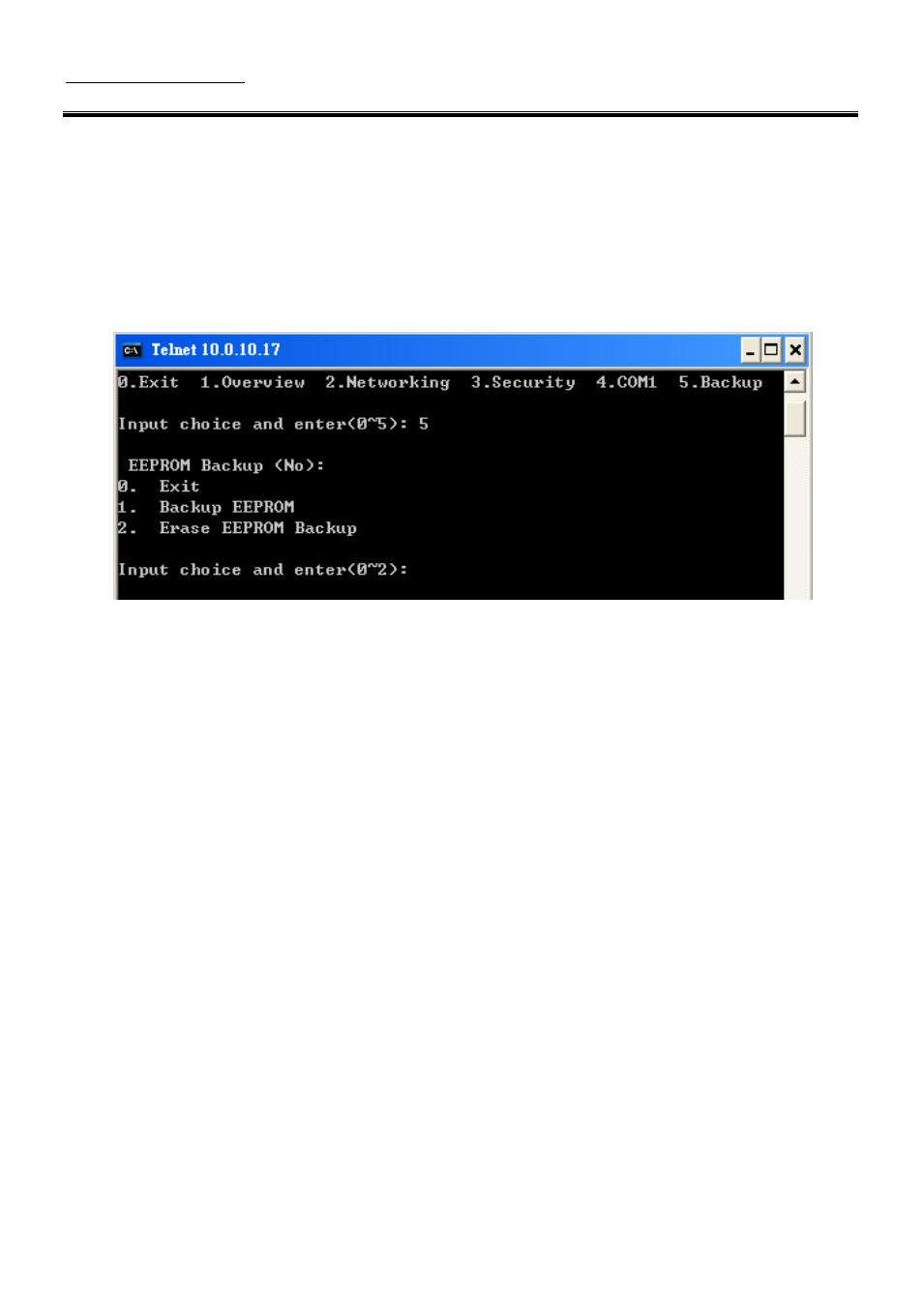

Figure 3.16 Backup EEPROM to Flash
Type 1
from “Input choice and enter (0~2):” to back up the settings from the EEPROM to the Flash.
SE5001A would then show
“EEPROM Backup (Yes)”.
Type 2
from “Input choice and enter (0~2):” to erase the settings stored in the Flash. SE5001A would
then show
“EEPROM Backup (No)”.
3.3 Configuration Using Web Browser
1. Make sure the PC is located in the same network sub-net as SE5001A
2. Open a web browser, then Enter in the IP address of SE5001A. Default user name is admin and default
password is null (leave it blank).
3. SE5001A
’s network, link mode and COM ports settings can be configured in different web pages.
4.
Click “Save Configuration” to save settings.
5.
Click ”Restart” button in “System” link to make the change effective if necessary.
