2 Straightening of the tent and laying of the baseplates
The main topology of the tent has to be straighten locally (e.g. road course,
front of houses etc.). It has to be carefully and exactly positioned, by lying
and straightening of the baseplates. The wrong placing of the baseplates will
incurr difficulties to the whole construction. Pay attention to the list of point
8.1, page 42. The borings of each baseplate for the given legs have to be
equivalent to the numbers of the earth anchors for placing.
Prepared assembling auxiliaries:
Construction tools:
Building components:
Measuring rod
All the provided baseplates 4-hole and 6-hole
Measuring tape For every baseplate equivalent number of earth-anchors
Directional cord For every baseplate a baseplate pin
Aboutsledge
2.1 Laying of the baseplates
Indentify and assign the components according pic. 3.
Note: Do not beat the earth-anchors at all, leave about 5 cm
providing for adjustment.
The safety brackets of the baseplates are facing to the inside of the tent.
2.1.1 Choose a front orientation.
2.1.2 Stretch the directional cord (tent‘s length + 2m each side).
2.1.3 Adjust 1. baseplate parallel to the directional cord of the right angle
and fix it with the 2 earth-anchors (do not beat in the earth-anchors
`all the way).

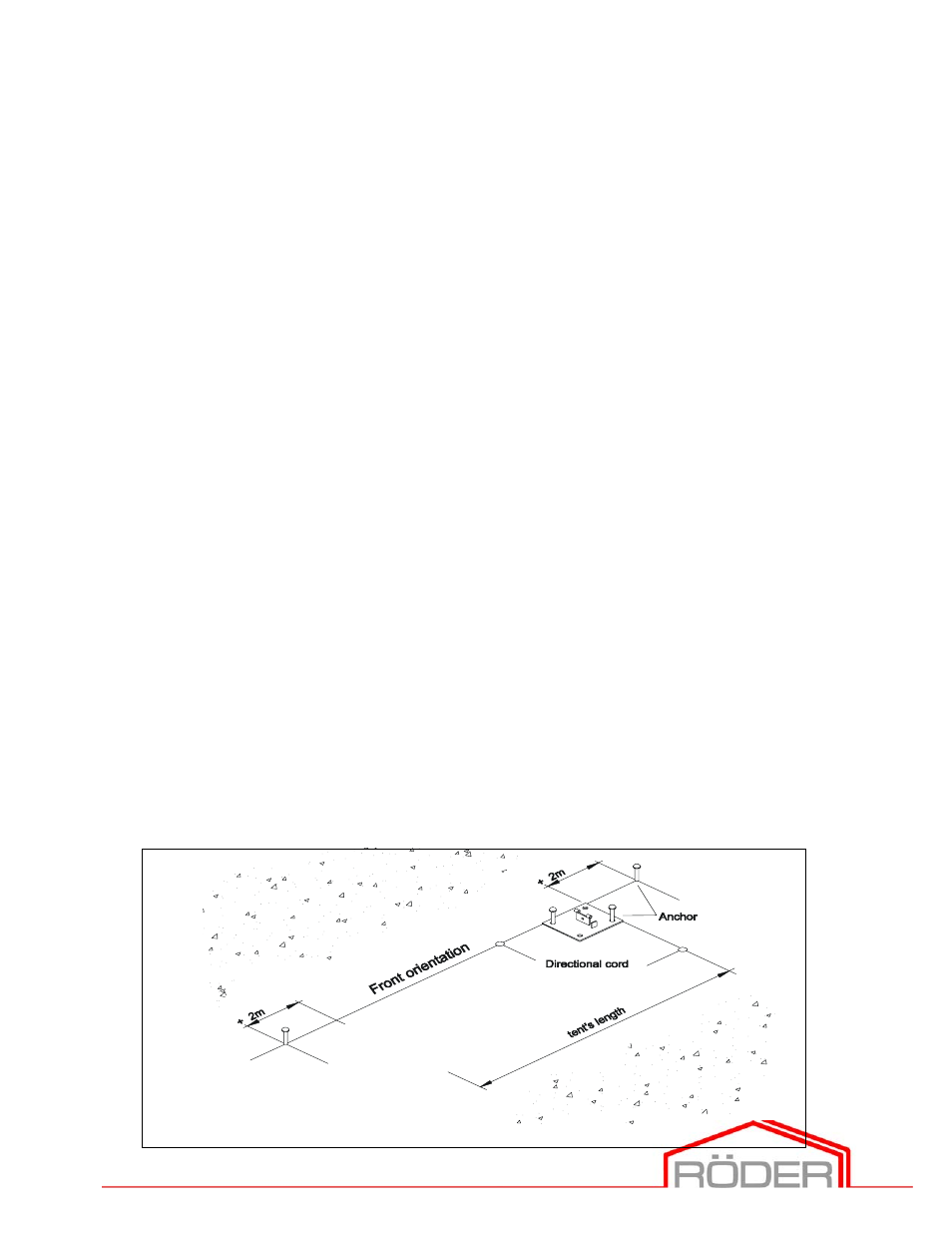

Pic. 2
