5.6 Mounting of the ground rail (if provided). The ground rails for the sides-
and gable walls are provided by RÖDER as an accessory.
5.6.1 Feed the ground rails into the ground rails kits of the side curtains (pic.
29).
5.6.2 Push the ground rails on to the 180 mm long flange pin and secure
them with a R-clip.
5.6.3 Feed the ground rail for the gable wall into the ground rail kit.
5.6.4 Hang up the ground rail to the bolt receiver of the ground rail holding
plate of the outer baseplate and fix it tight with a R-clip.

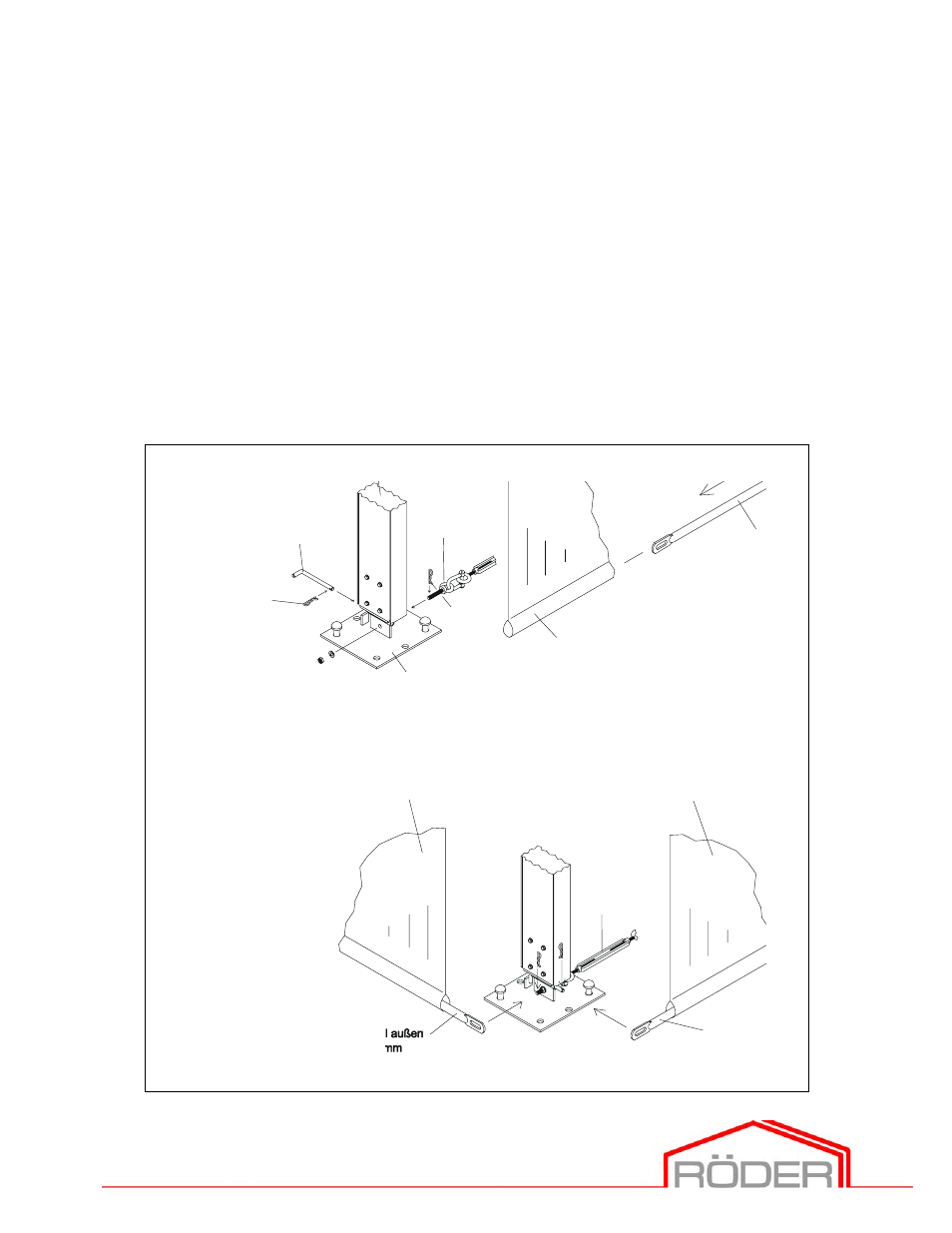

Pic. 29
Gable cover Side cover
Ground rail
outside
Ground rail side
L=5090 mm
Baseplate
Side cover
R- clip
Pin
R
Ground rail
side
Ring bolt
for ground
il
Wire for
leg
