3. Configure Hotspot to Network

AirLive WIAS-3200N v2 User’s Manual

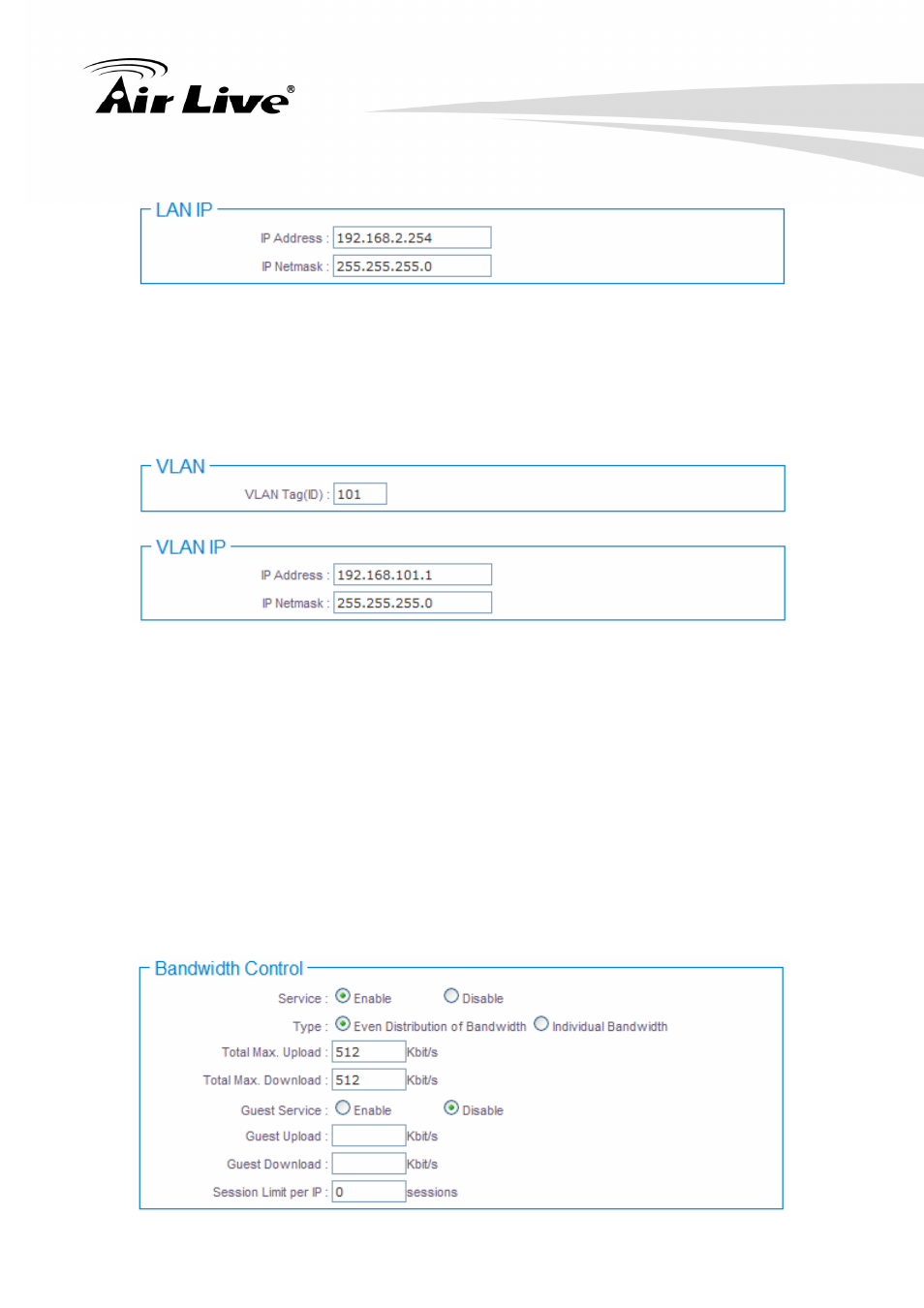

3.4.3 LAN Setup (Domain0)

IP Address: The IP address of the LAN port, and the he default LAN's IP address as

192.168.1.254,

IP Netmask : The Subnet mask of the VLAN port; default Netmask is 255.255.255.0

3.4.4 VLAN Setup (Domain1-3)

VLAN Tag (ID): Virtual LAN, the system supports 3 tagged VLAN port (VLAN1 ~

VLAN3). The valid values are from 1 to 4094. The default VLAN1's tag ~ VLAN3's tag
are from 101 to 103.

*Note: Some system and VLAN switch do not support VLAN tag 1

IP Address: The IP address of VLAN port, default VLAN1's ~ VLAN3's IP address as

192.168.101.1 ~ 192.168.103.1.

IP Netmask : The Subnet mask of the VLAN port; default Netmask is 255.255.255.0

3.4.5 Bandwidth Control
