3 Configure Hotspot to Network
19 AirLive WIAS-3200N v2 User’s Manual
3.4 LAN/VLAN
3.4.1 VLAN Setup
VLAN No. : Denote the system's VLAN port.
VLAN Tag (ID): Denote the VLAN tag of the respective VLAN port. Only for VLAN1 ~
VLAN3.
VAP0-VAP3: Select specify the LAN/VLAN port for VAP. The packets from VAP to LAN
will insert specify VLAN tag
WDS: Select specify the LAN/VLAN port for WDS. The packets from WDS to LAN will
insert specify VLAN tag
3.4.2 LAN/VLAN List
VLAN No. : Denote the system's VLAN port.
VLAN Tag (ID): Denote the VLAN tag of the respective VLAN port. Only for VLAN1 ~
VLAN3.
IP Address: Denote the IP address of the respective LAN/VLAN port.
Bandwidth Control(p/Down Kb):
(1) Individual: Denote the Individual Max. Upload/Download of the respective
LAN/VLAN port.
(2) Group: Denote the Group Upload/Download of the respective LAN/VLAN port.
(3) Distribution: Denote the Distribution Upload/Download of the respective
LAN/VLAN port.
(4) Session: Denote the Session of the respective LAN/VLAN port.
DHCP: Denote the DHCP server status of the respective LAN/VLAN.

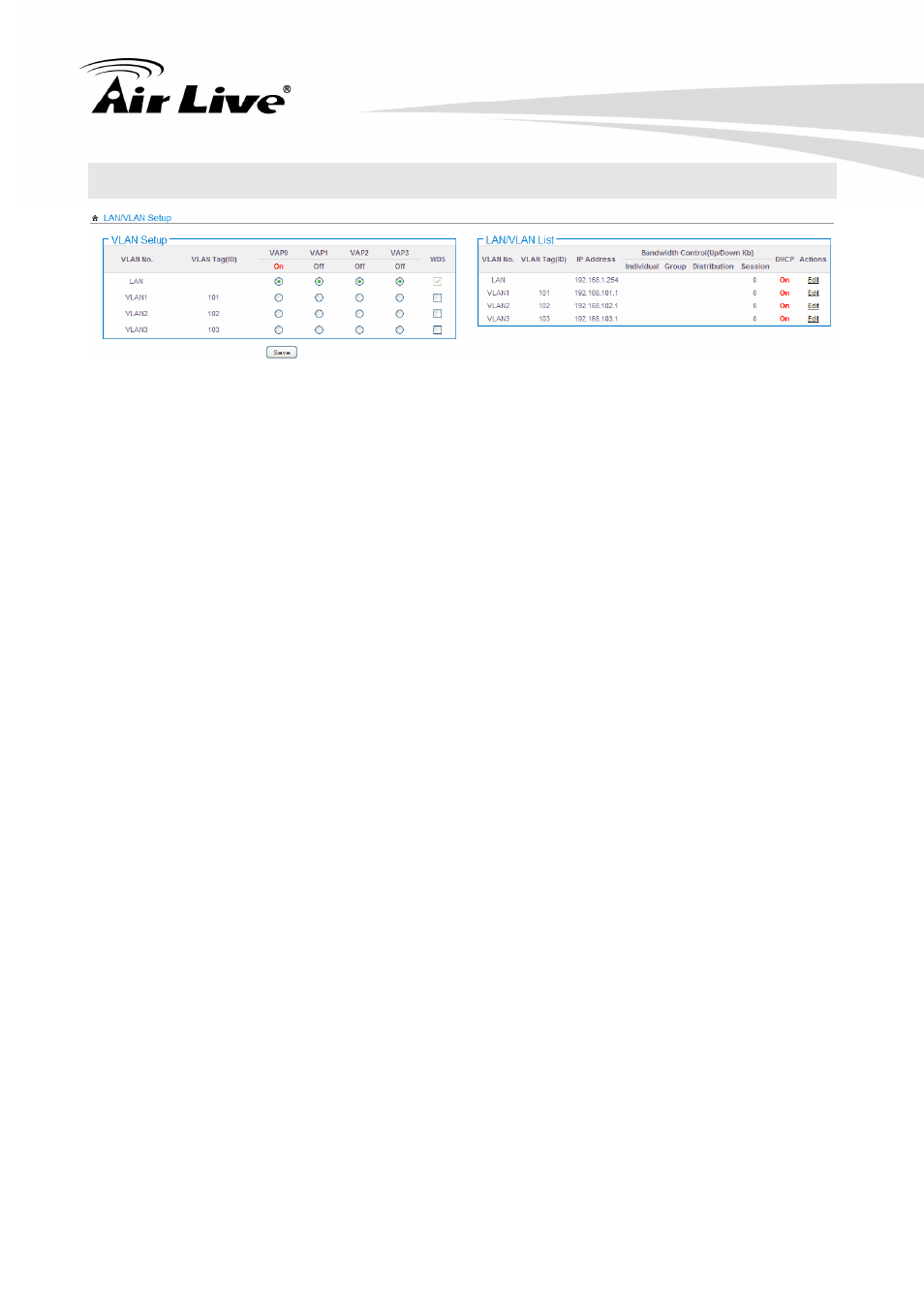

Actions: Click this option to configure LAN/VLAN's settings, the setup page should be
appear. Below depicts an example for LAN.
