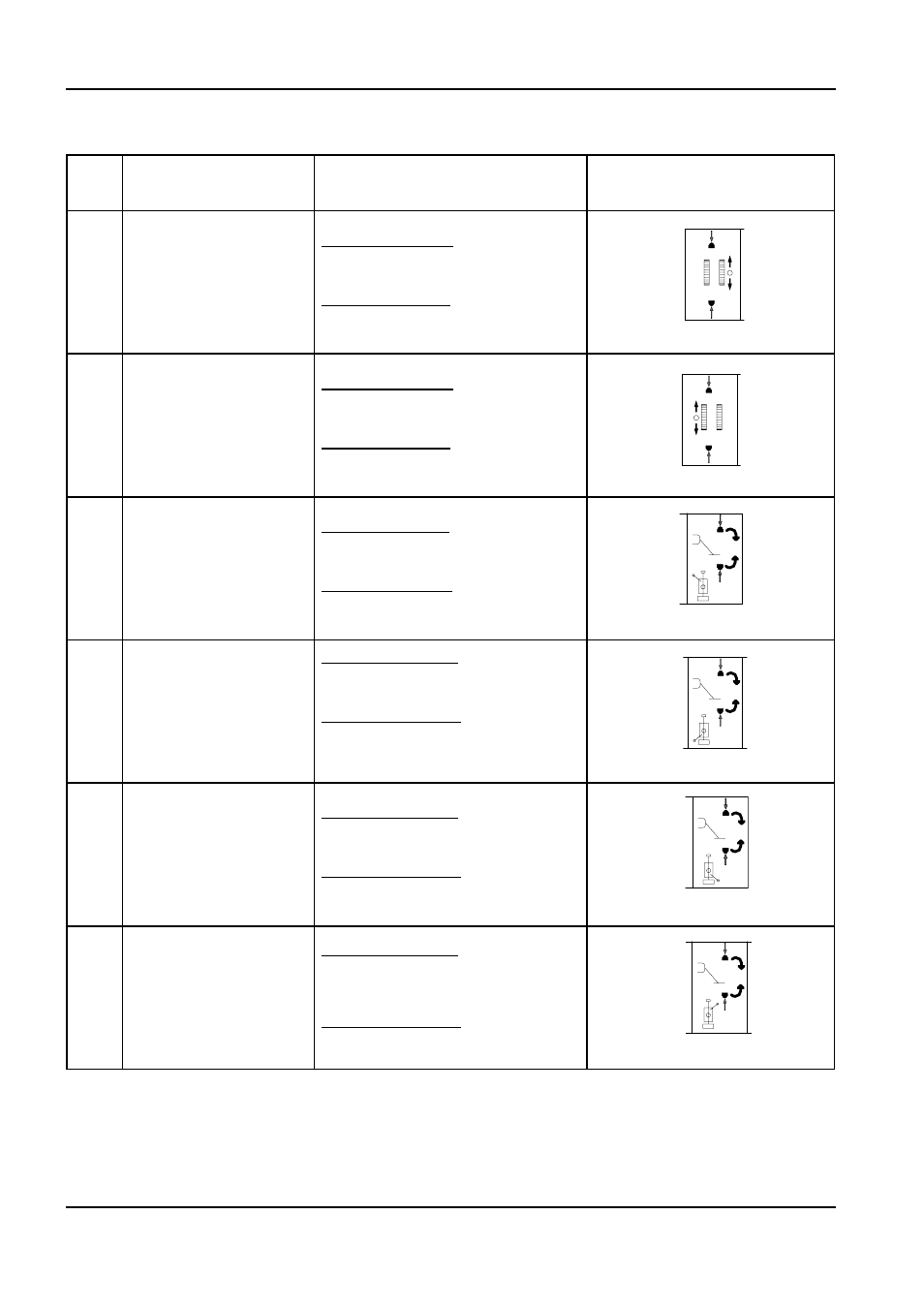

Ref. Descriptions
Activation
/movement Pictograms in
proximity of the control
7 Right travel control
Moving lever 7A:
moves right track forward
Moving lever 7B:
moves right track backward
8 Left travel control
Moving lever 8A:
moves left track forward
Moving lever 8B:
moves left track backward
9
Front left stabiliser
control
Moving lever 9B:
front L stabiliser down
Moving lever 9A:
front L stabiliser up
10
Rear left stabiliser
control
Moving lever 10B:
rear L stabiliser down
Moving lever 10A:
rear L stabiliser up
11
Rear right stabiliser
control
Moving lever 11B:
rear R stabiliser down
Moving lever 11A:
rear R stabiliser up
12
Front right stabiliser
control
Moving lever 12B:
front R stabiliser down
Moving lever 12A:
front R stabiliser up
