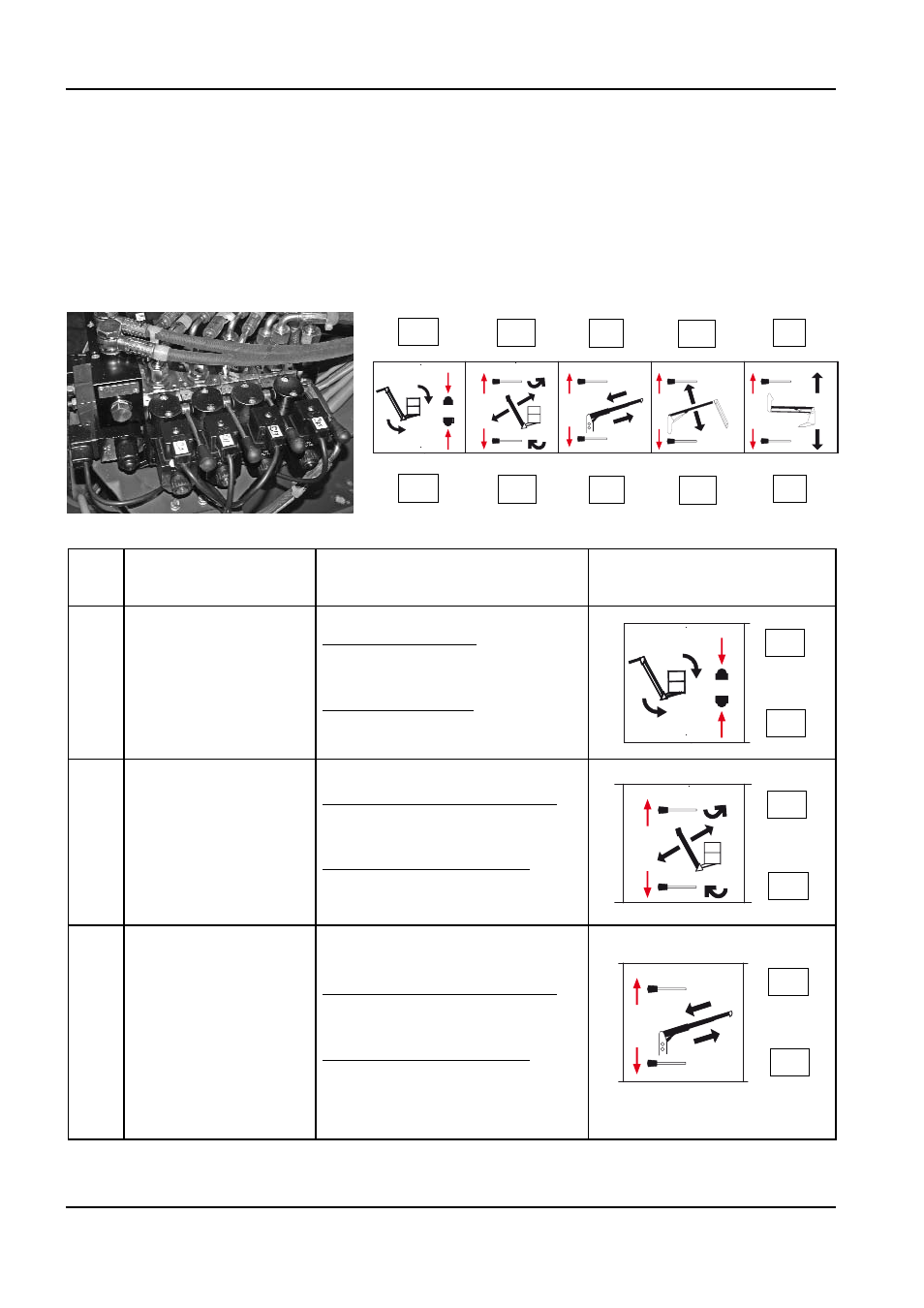

‑ AERIAL PART HYDRAULIC DISTRIBUTOR
The hydraulic distributor is fitted with levers and buttons for the selection of the required
movement, its direction and speed. The structure can be moved by using the levers after ope‑
rating the switch.
Ref. Description Lever/Movement obtained Pictogram near the control
1
Basket levelling
control
Pressing button 1A:
basket closes
Pressing button 1B:
basket opens
2 Jib control
Moving lever 2A downwards:
jib folds
Moving lever 2B upwards:
jib opens
3 Extension arm control
Moving lever 3A downwards:
extension arm out
Moving lever 3B upwards:
extension arm in
X14JR0420113 58
BOOM LIFT MODELS X14J
JLG
1A 2A 3A 4A 5A
1B 2B 3B 4B 5B
1608500018B
1A
1B
2A
2B
3A
3B
