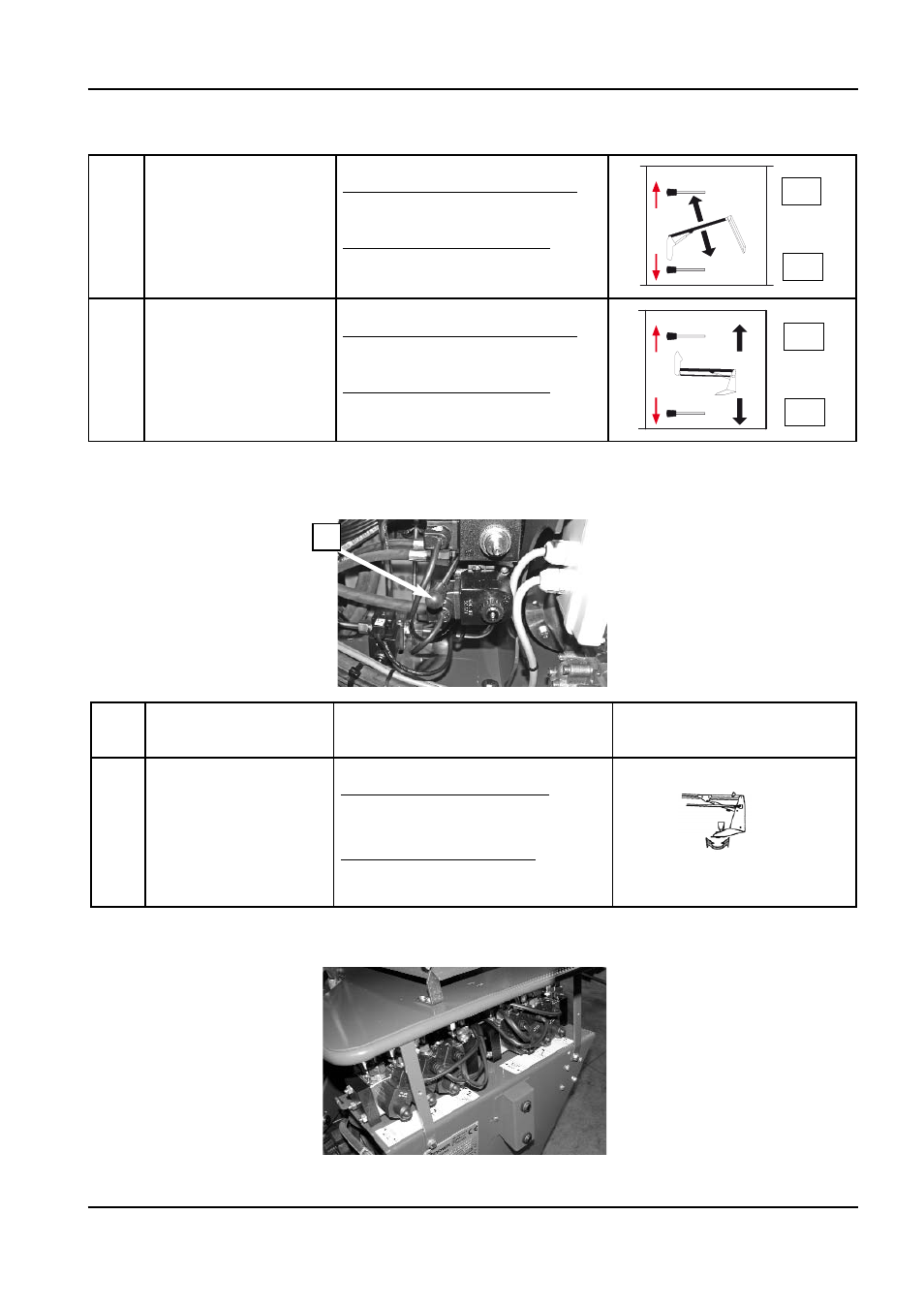

ROTATION HYDRAULIC DISTRIBUTOR
It is positioned in front of the electric motor at the collector.
TRACKED UNDERCARRIAGE HYDRAULIC DISTRIBUTOR
4 Second arm control
Moving lever 4A downwards:
2nd arm descends
Moving lever 4B upwards:
2nd arm ascends
5 First arm control
Moving lever 5A downwards:
1st arm closes
Moving lever 5B upwards:
1st arm opens
Ref. Descriptions
Activation
/movement Pictograms in
proximity of the control
6 Rotation control
Moving lever 6 to the right:
counterclockwise rotation
Moving lever 6 to the left:
clockwise rotation
