4.1.1 Display

The display is used to view the status of the machine and the operational information neces‑
sary or useful to the operator for use.
When the machine main control board is powered through the engine key, the information to
be seen on the display is sent to the remote control.

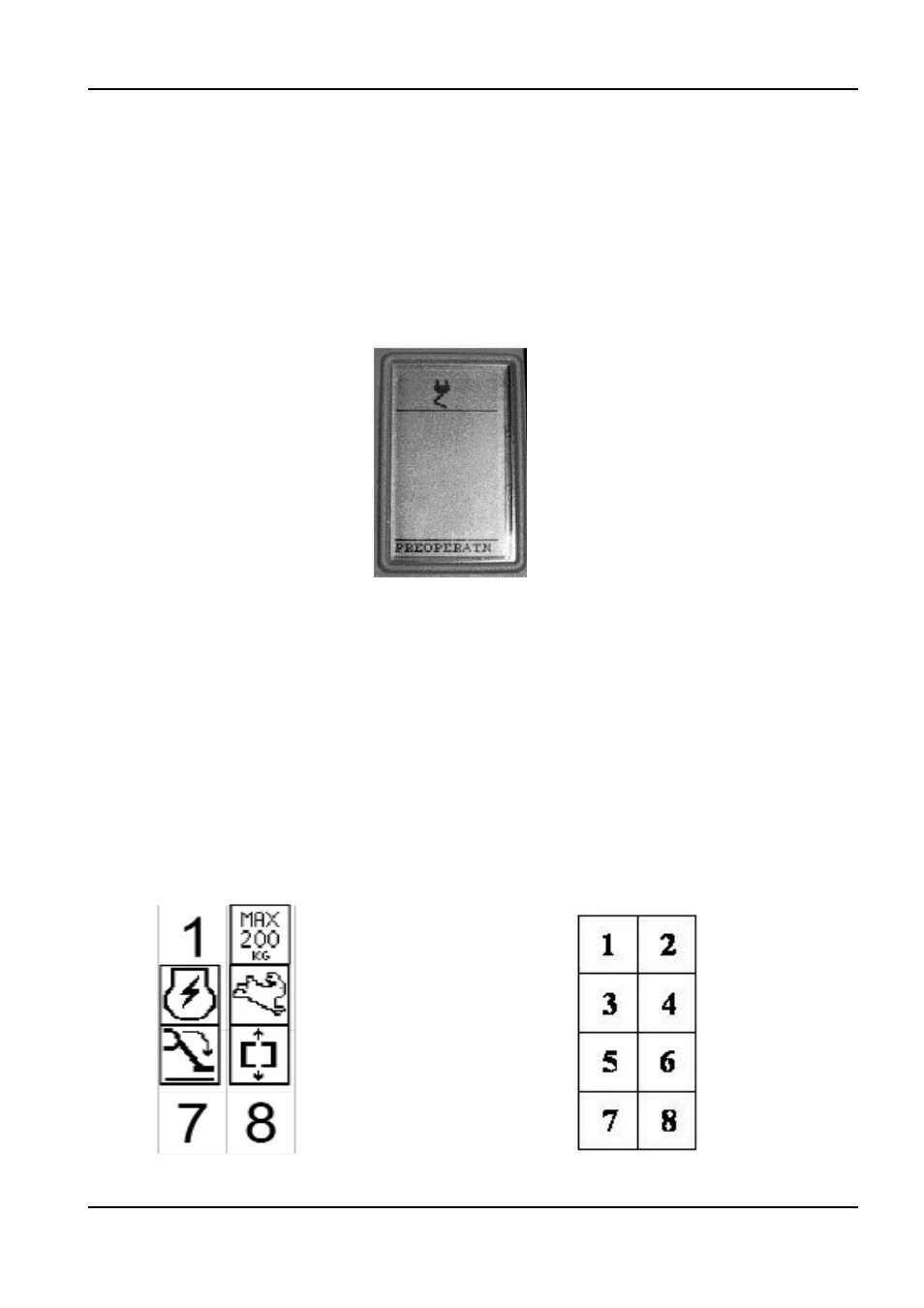

This operation has variable duration. Normally a few seconds are enough, but the following
screen may appear on the display:

In this case about 5‑10 minutes are needed to send all of the information from the main
board to the remote control. The machine cannot work during this period.
Do not stop the machine or operate on it during this period.

4.1.1.1 Display main screen

Once the machine have been started, the main screen giving a general overview of the
machine status will appear. For the sake of simplicity and clarity a layout is provided with 8
icon display positions.

Example of the main screen:

Icon position diagram:

X14JR0420113
