Page 157

9-15
G10-55A, G12-55A
Electrical System
9.7.1
Windshield/Rear Window Washer
Reservoir

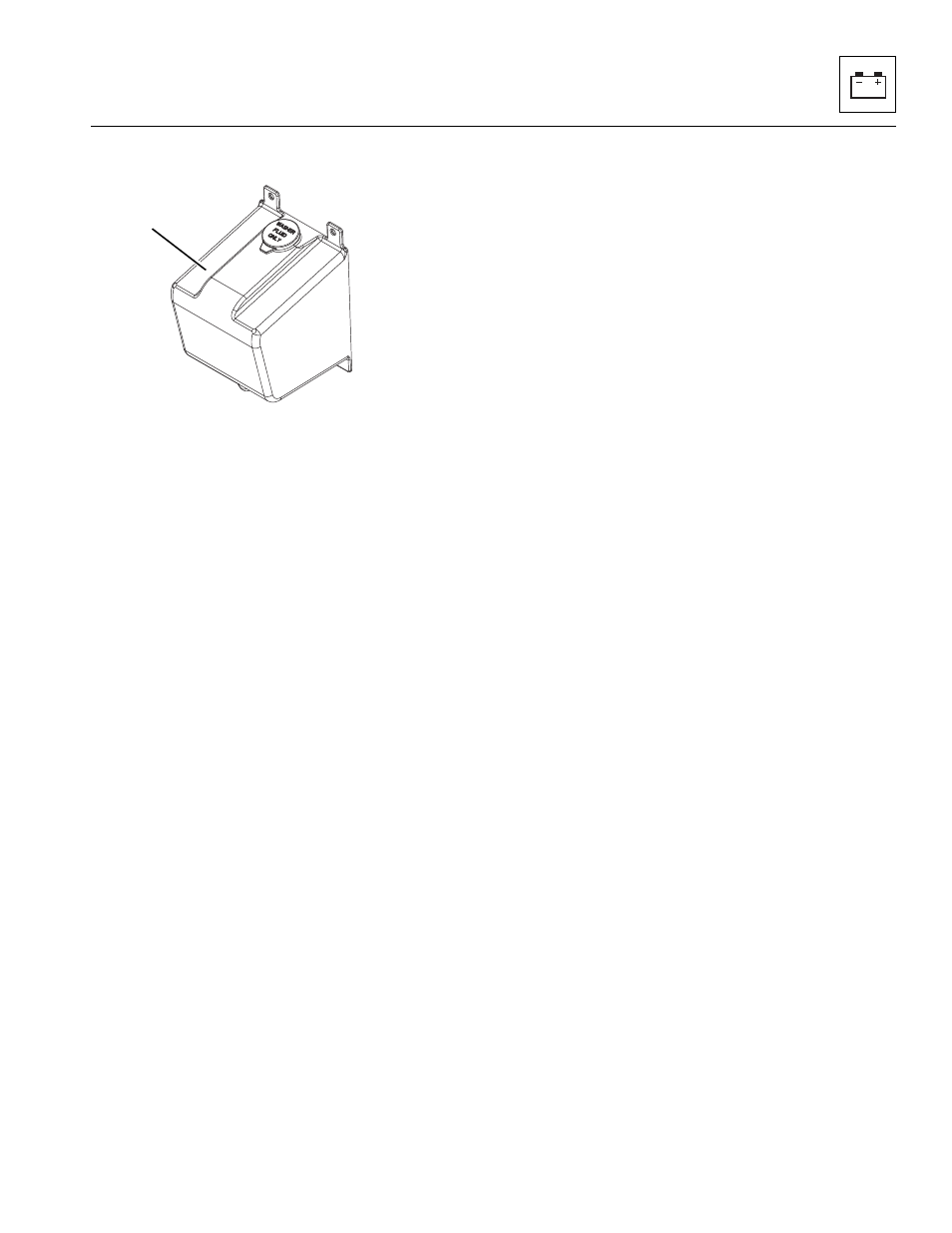

Windshield washer motor and reservoir (5) is located in
cab behind the seat. It is labeled as a unit and cannot be
serviced separately.
a. Removal
1. Park machine on a firm, level surface, level machine,
fully retract boom, lower boom, place transmission
control lever in (N) NEUTRAL, engage park brake
and shut engine OFF.
2. Place a Do Not Operate Tag on both ignition key
switch and steering wheel.
3. Open engine cover. Allow system fluids to cool.
4. Properly disconnect the batteries.
5. Remove nuts and lock washers from washer
mounting bolts.
6. Pull the washer reservoir out and away from the
mounting bracket.
7. Rotate the washer reservoir, label and remove
the cab harness connectors from the washer
reservoir connectors.
8. Remove windshield washer hoses from reservoir.
b. Disassembly
DO NOT disassemble the pump. The pump is not
serviceable. Replace pump if found to be defective.
c. Installation and Testing
1. Connect windshield washer hoses to reservoir.
2. Connect the cab wiring harness connectors to the
reservoir connectors.
3. Install reservoir tank onto mounting bracket.
4. Install lock washers and nuts and secure.
5. Fill the washer fluid reservoir with washer fluid.
6. Properly connect the batteries.
7. Turn ignition key switch to RUN position and press
washer switch. Verify that fluid is sprayed on both
windshield and rear glass.
8. Close and secure the engine cover.
9. Remove the Do Not Operate Tags from both the
ignition key switch and the steering wheel.
MY1220
5
