Electrical System
9-4
G10-55A, G12-55A
9.2
SPECIFICATIONS
Electrical system specifications are listed in Section 2,
“General Information and Specifications.”
9.3
SAFETY INFORMATION
9.4
FUSES AND RELAYS

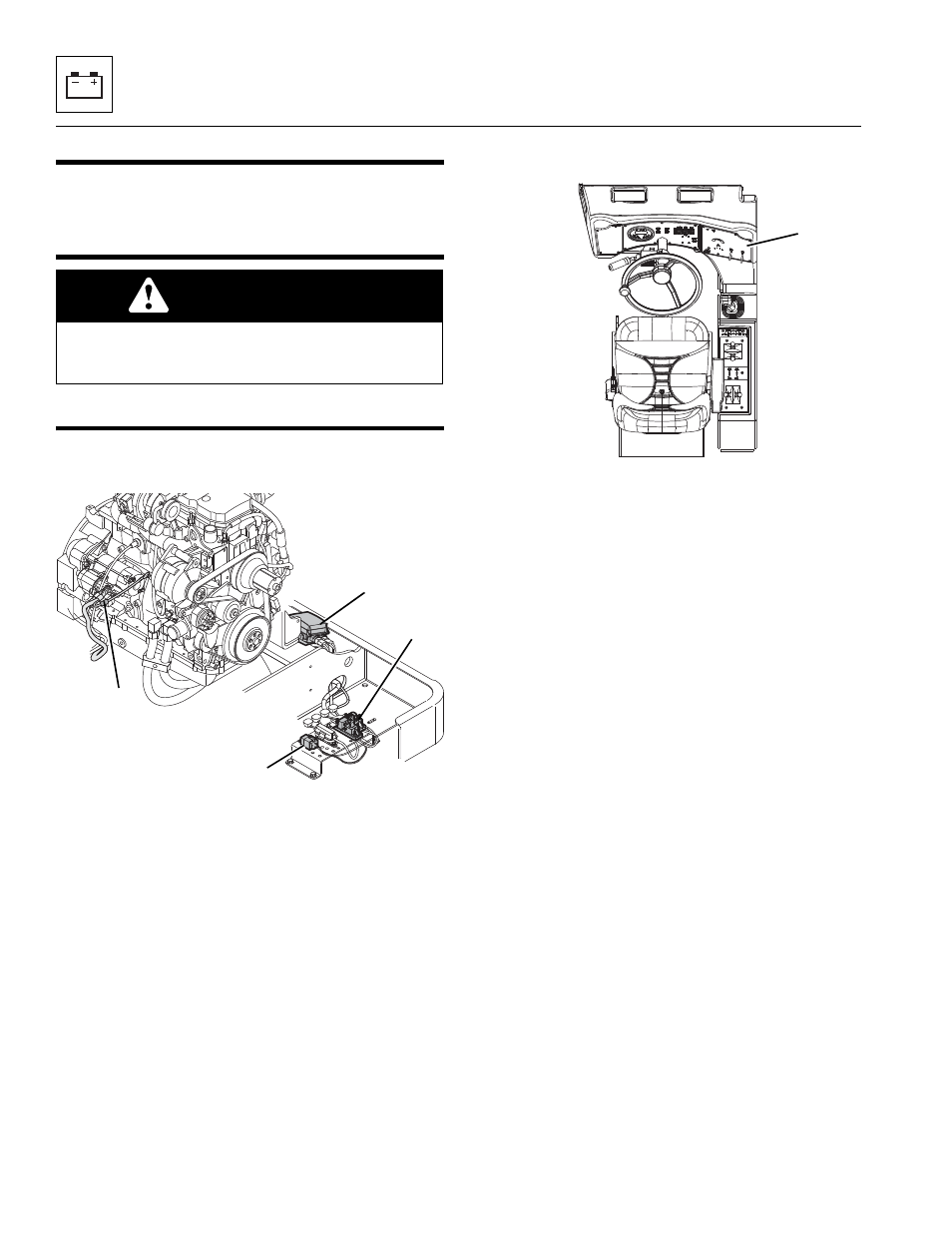

9.4.1
Engine Compartment
Starter relays (1), Fuse module (2) and 150 amp fusible
link (3) are located in engine compartment.
9.4.2
Cab
The optional power distribution unit is located in the cab.
For access, remove the screws securing the load chart
panel (4) to the dash.
WARNING
DO NOT service the machine without following all
safety precautions as outlined in Section 1, “Safety
Practices,” of this manual.
MY7180
1
2
3
1
MY7420
4
