SECTION 3 - CHASSIS & TURNTABLE
3-44 – JLG Lift – 3121253
cover and other components into place with a final
torque of 25-30 ft. lbs. (34-41 N m).

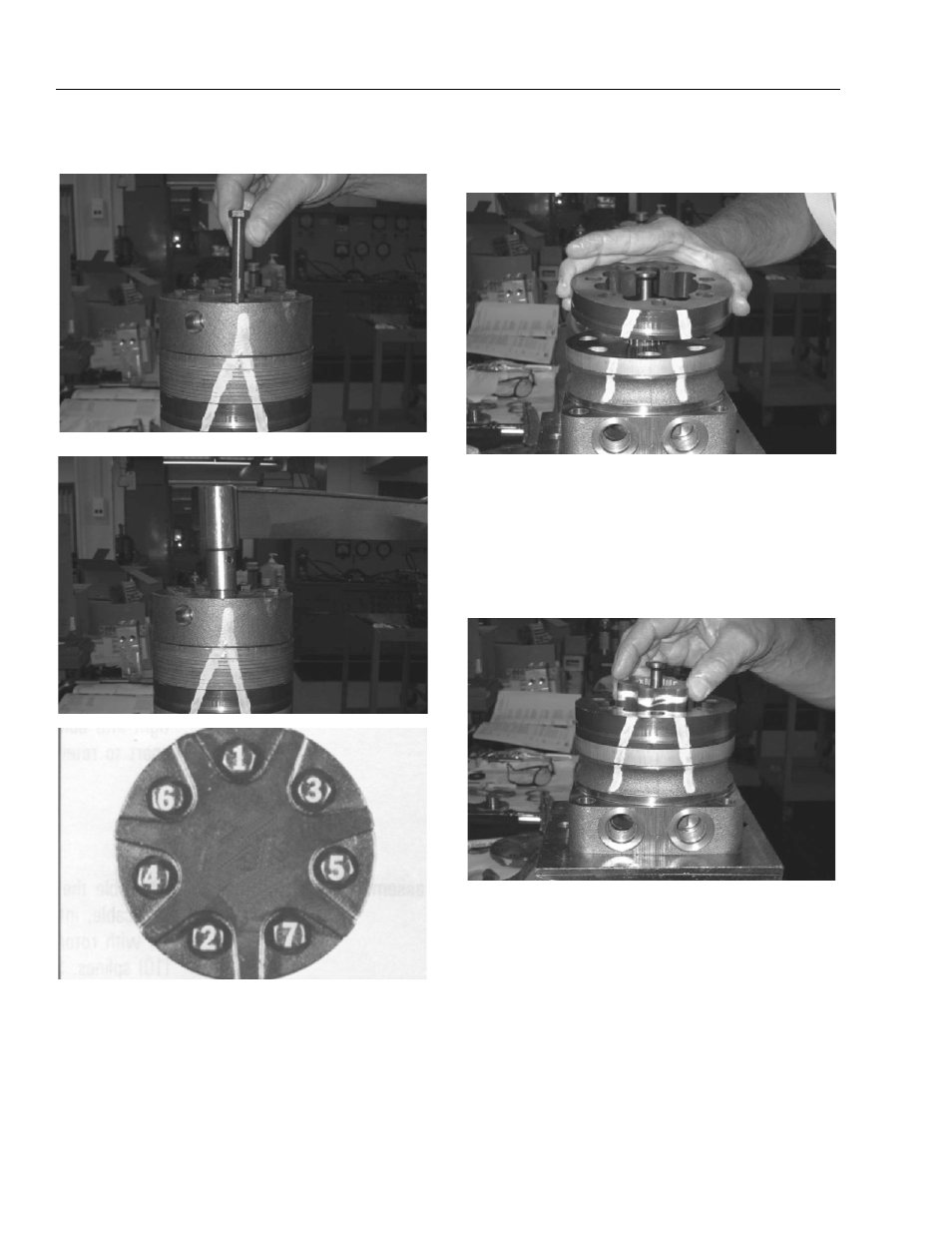

One Piece Stator Construction
A disassembled rotor stator and vanes that cannot be
readily assembled by hand can be assembled by the fol-
lowing procedures.
1. Place stator onto wear plate (9) with seal ring (4)
side down, after following assembly procedures 1
through 13. Be sure the seal ring is in place.
2. If assembly alignment studs are not being utilized,
align stator bolt holes with wear plate and housing
bolt holes and turn two bolts (1) finger tight into bolt
holes approximately 180 degrees apart to retain sta-
tor and wear plate stationary.
3. Assemble the rotor, counterbore down if applicable,
into stator, and onto wear plate (9) with rotor splines
into mesh with drive link (10) splines.
