SECTION 5 - HYDRAULICS
3121253 – JLG Lift – 5-23
2
2
2 6
1
9
3
7
8
11 11
11 11
11 11
11 11
11 11
13
AJP
ONLY
16
E300AJP
6
12
10
13
16
12 13
13
13
13
13
3
4
3
5
13
15
13
E300AJ
Table 5-4. Boom Function Valve Torques
# Description Ft. Lbs. Nm # Description Ft. Lbs. Nm # Description Ft. Lbs. Nm
1 Solenoid Valve 20 27 7 Manual Valve 25 34 13 Port Plug 15 20
2 Solenoid Valve 20 27 8 Hand Pump 30 40.5 14 Port Plug 25 34
3 Relief Valve 20 27 9 Check Valve 20 27 15 Valve 20 27
4 Relief Valve 25 34 10 Check Valve 20 27 16 Screw 5 7
5 Relief Valve 20 27 11 Coil 5 7
6 Valve 20 27 12 Orifice Plug 4 5

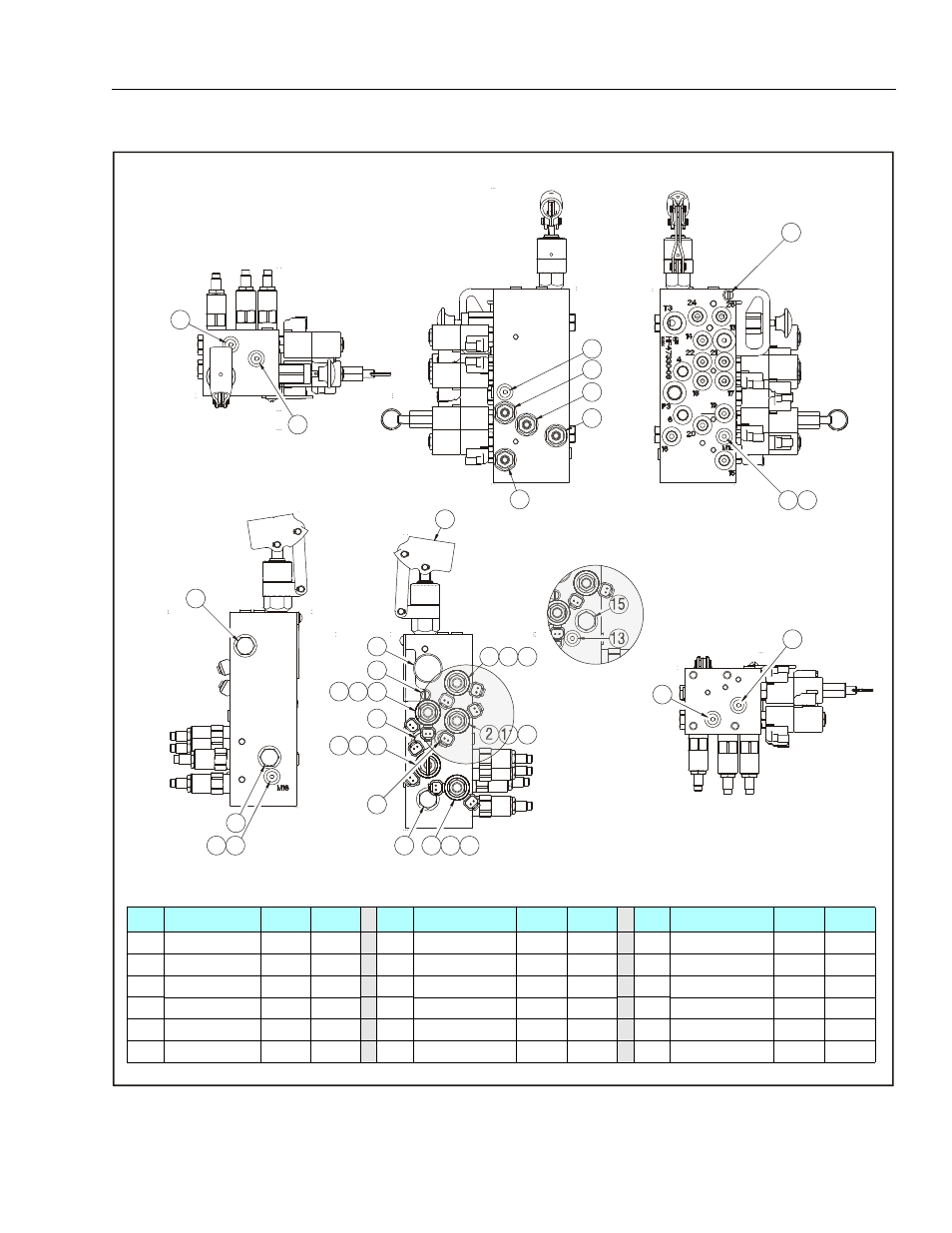

Figure 5-12. Boom Function Valve - Sheet 2 of 2
