SECTION 5 - HYDRAULICS
3121253 – JLG Lift – 5-21
5 11 11
3 11
2 11 11
7
8
6
4
4
4
9
1
10
10
10
12
14
14
13
14
14
Table 5-3. Main Valve Torques
# Description Ft. Lbs. Nm # Description Ft. Lbs. Nm
1 Pressure Switch 15 20 8 Relief Valve 20 27
2 Solenoid Valve 20 27 9 Relief Valve 20 27
3 Solenoid Valve 20 27 10 Coil 5 7
4 Solenoid Valve 25 34 11 Coil 5 7
5 Solenoid Valve 20 27 12 Valve 20 27
6 Relief Valve 20 27 13 Load Sense Valve 20 27
7 Relief Valve 20 27 14 Port Plug 15 20

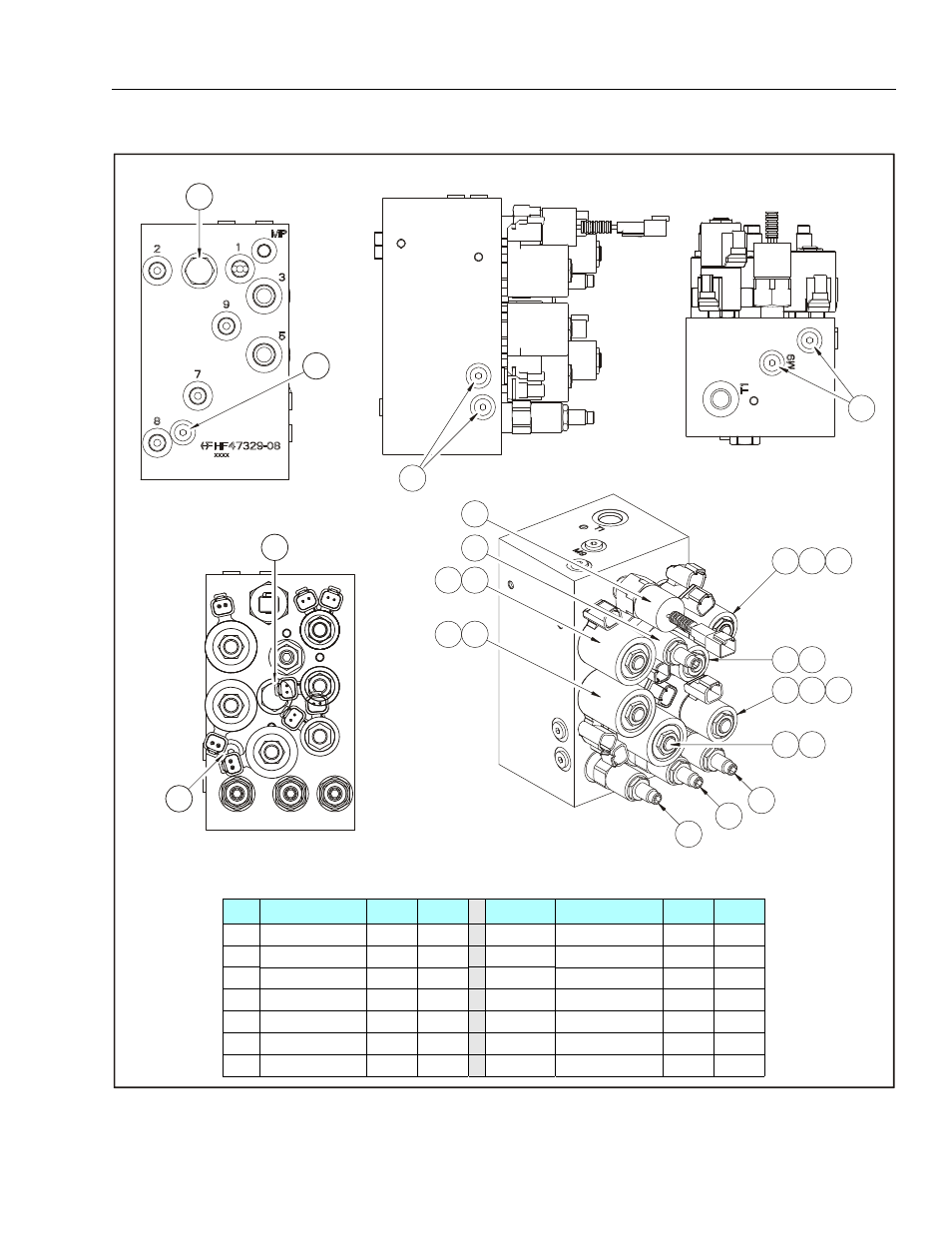

Figure 5-11. Main Control Valve - Sheet 2 of 2
