SECTION 6 - JLG CONTROL SYSTEM
6-12 – JLG Lift – 3121253
CONNECTOR PIN TAG NAME FUNCTION TYPE
J2
1 N/C N/C N/C N/C
2 CANH CAN HIGH SERIAL I/O
3 CANL CAN LOW SERIAL I/O
4 SHD CAN SHIELD POWER DRAIN
CONNECTOR PIN TAG NAME FUNCTION TYPE
J3
1 N/C N/C N/C N/C
2 CANH CAN HIGH SERIAL I/O
3 CANL CAN LOW SERIAL I/O
4 SHD CAN SHIELD POWER DRAIN
CONNECTOR PIN TAG NAME FUNCTION TYPE
J4
1 FSWIN FOOR SWITCH INPUT DIGITAL INPUT
2 ING 12V POWER INPUT POWER INPUT
3 GND PCB GROUND COONECTION POWER OUTPUT
CONNECTOR PIN TAG NAME FUNCTION TYPE
J5
1 GND GROUND RETURN POWER INPUT
2 ARMB ARMATURE B POWER OUTPUT
3 ARMA ARMATURE A POWER OUTPUT
CONNECTOR PIN TAG NAME FUNCTION TYPE
J1
1 ENCPWR POWER OUTPUT (12V) POWER OUTPUT
2 SPD SPEED DIGITAL INPUT
3 GND GROUND RETURN POWER INPUT
4 DIR DIRECTION DIGITAL INPUT
5 N/C N/C N/C N/C
6 N/C N/C N/C N/C

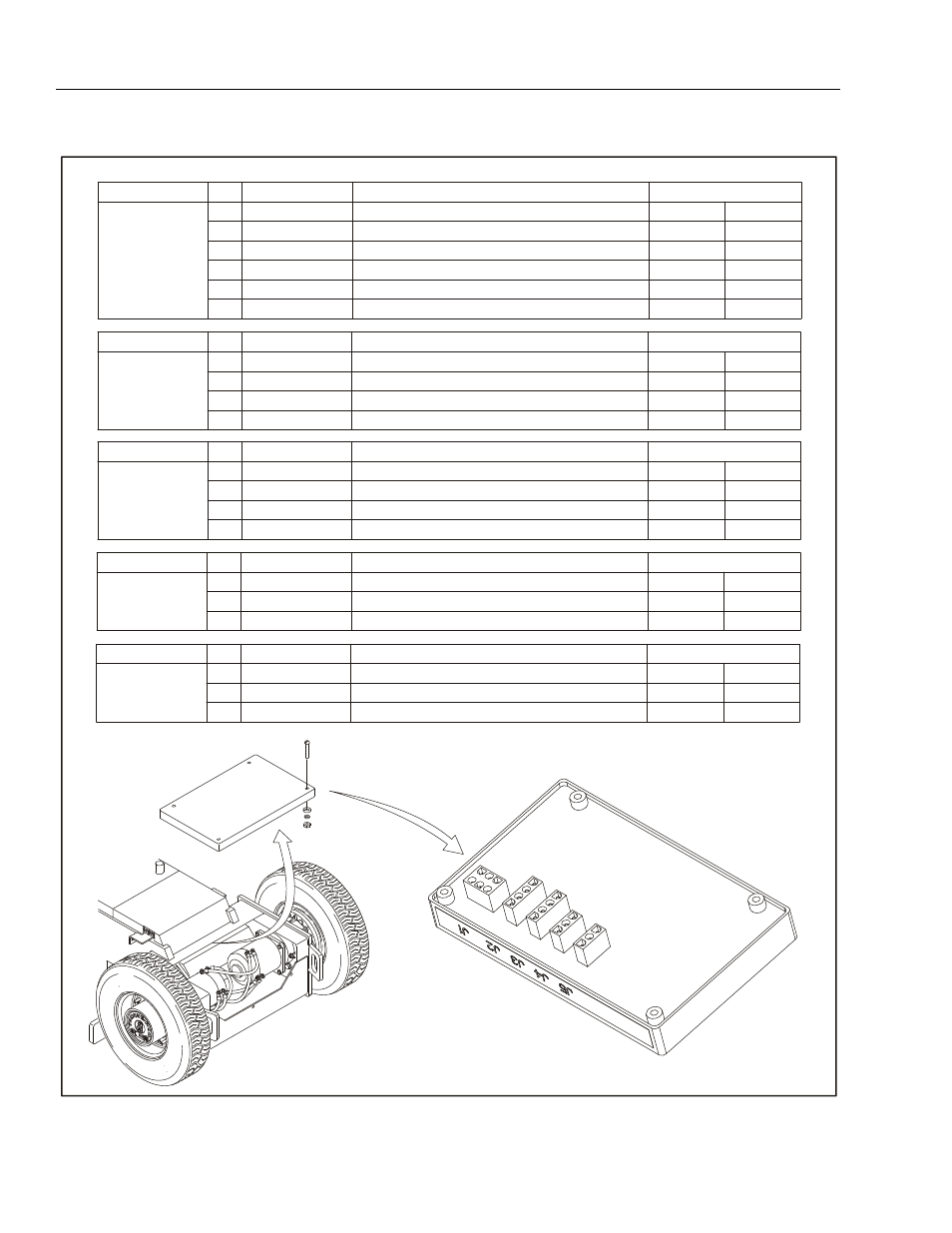

Figure 6-8. Tilt Module Location
