SECTION 1 FRAME
Kit Options: Ref.
7010429 Bearing Kit (Includes Items 4 and 5) 1
2900034 Seal Kit (Includes Items 3, 11, 12 and 29) 1
Cover Kit Options: 1
Use 70001111 Original Equipment Cast Cover (was p/n
7001989)
Use 70001111 Aluminum Replacement for Original Equip-
ment Cast Cover (Includes 29, 31 (Spacer),
40, 41 (Dowel Pins), 101, 102 & 104-108)
(was p/n 7017099)
Use 70001349 Service Replacement Aluminum Cover
(Includes 29, 101 & 104-107) (was p/n
7017090)

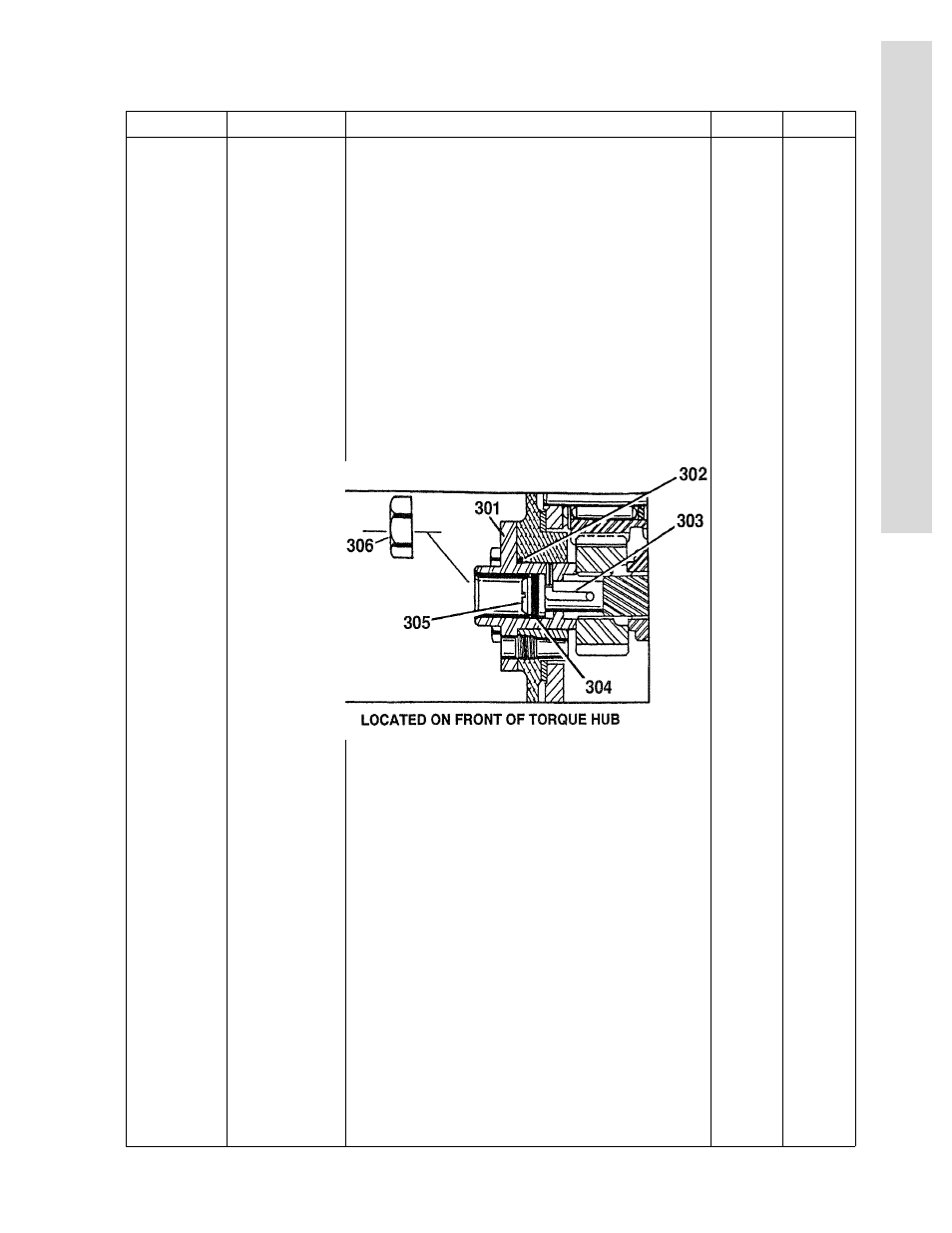

2901157 DISCONNECT HUB ASSEMBLY (OPTIONAL) Ref.
301 7002025 Cover 1
302 7000215 O-Ring 1
303 7007669 Pin, Spring 1
304 7010446 Seal 1
305 7010444 Rod, Disconnect 1
306 7010447 Cap, Dust 1
7010448 O-Ring 1
FIGURE 1-7. DRIVE HUB ASSEMBLY (CONTINUED)
FIG & ITEM # PART NUMBER DESCRIPTION (CONTINUED) QTY. REV.
