6HWWLQJ XS DQG SODFLQJ LQ VHUYLFH
IKA  -WERKE C 5000 control/duo-control Ver. 10 04.07
3DJH
6\VWHP VHWWLQJV
A few system settings must still be made for the experiment procedure, the method
of working, the initialization of the experiment, the reference gross calorific value
and the unit of measure for the gross calorific value. To do this, place the cursor in
the menu line on &RQI , open the menu window and call up the 6HWWLQJV dialog box.
€ sr r v ¨‚¦ƒ 1§ "& ¨© 5 &Y

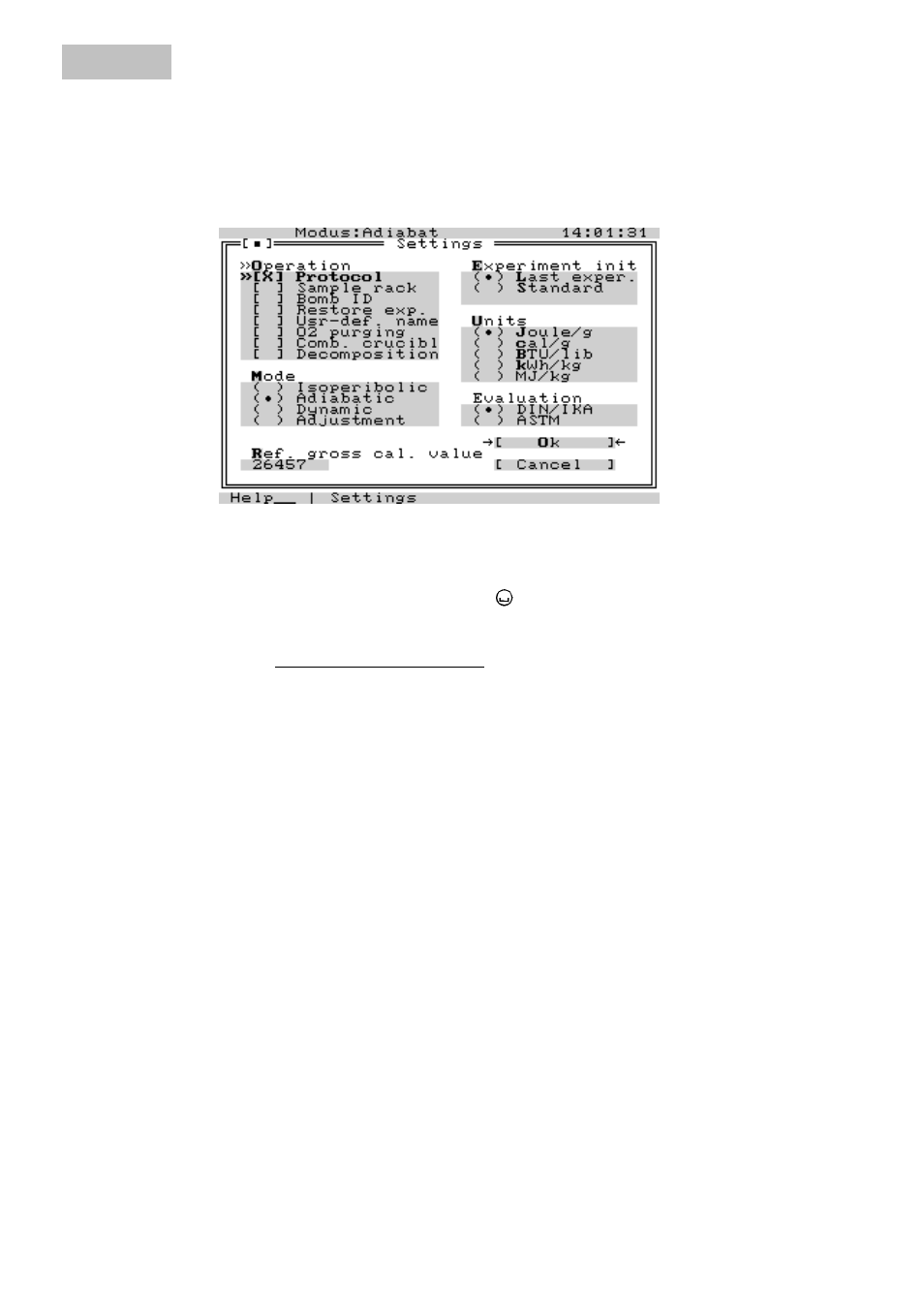

The window shows the configuration boxes of the calorimeter. You can move the
cursor to the next configuration box with 7DE To make settings in the 2SHUDWLRQ
configuration box, you must place the cursor on the desired line with the 8S'RZQ
DUURZ and then press the space bar . Your entry is confirmed with “x”. If you press
the space bar again, the “x” will be deleted.
2SHUDWLRQ configuration box
> @ 3URWRFRO
If you check this option, a protocol, or record, will be printed out for each ex-
periment. This also applies to the individual temperature measurement val-
ues taken during the measurement. In addition, the temperature protocol is
displayed in the info-window for test parameters, see Section 11.1, “5-Info”.
> @ 6DPSOH UDFN
A sample rack is connected and will be used. The 6DPSOH dialog box can no
longer be called manually; instead placing samples on the sample rack, or
removing them from it activates the same dialog box. This ensures secure
management of even a large number of samples.
For more information on working with the sample rack, please refer to the
C 5020 Operating Instructions.
> @ %RPE ,'
Decomposition vessels are automatically identified by their coding. There is
no manual entry of the code number of decomposition vessel. See Section 9,
“Coding decomposition vessel”.
> @ 5HVW H[SHULP
The experiment can be restarted at another time if it is interrupted before the
ignition. The experiment parameters are retained. Even if a test is interrupted
after ignition with the error message 1R WHPSHUDWXUH LQFUHDVH , the test can
still be restarted. To restart the experiment, the decomposition vessel must
be removed from the measurement cell and then reinserted again.
