DO NOT operate near energized electrical
conductors. Maintain the (M.S.A.D.),
Minimum Safe Approach Distance to
energized power lines. See the "Electrical
Hazard" section, in this manual for a
complete explanation of the hazards
c o n c e r n i n g e l e c t ri c i t y . M a i n ta i n t h e
clearances shown on the decal attached to
the platform.
Be certain that the space into which you are
about to move the platform, boom, turntable,
and/or chassis is free of obstructions.
ALWAYS look in the direction of movement.
When you operate from the platform control
box, be sure that the lanyard of your fall
restraint is attached to an anchor point on
the platform mount. Also, be sure that
platform gate is closed behind you.
❑
From Ground Control Box

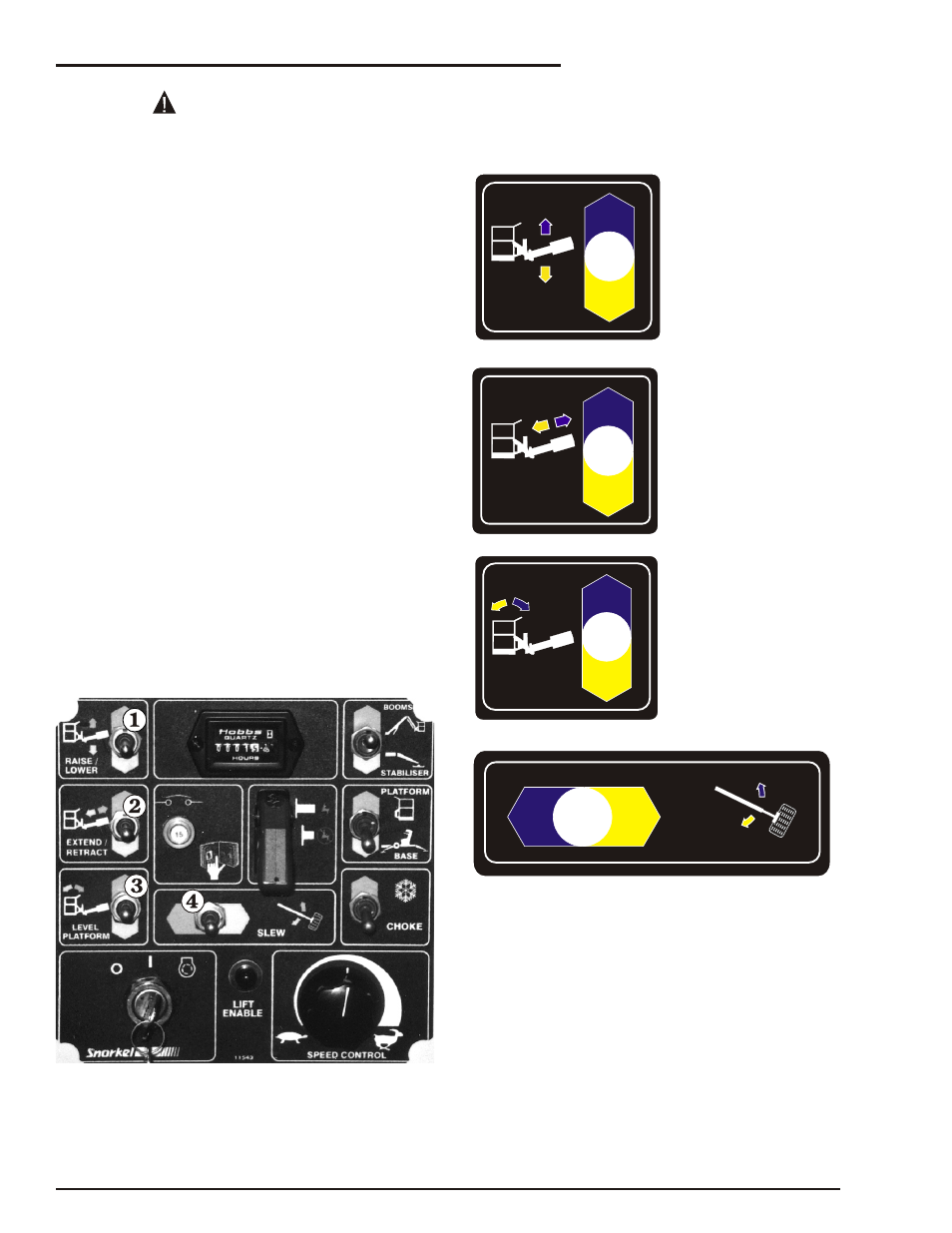

Each of the ways the plat form can move is shown in
the fol low ing pho to graph and switch il lus tra tion:
The pho to graph shows the plat form switches that
cause the plat form or booms to move.
These plat form mov ing switches, ( through ‚),
will pro duce the move ment as in di cated by the il -
lus tra tion's to the right.
Figure 8.7 - Movement Control, Ground
Control Box
Figure 8.8 - Ground Control Box Operation,
Platform Moving Switch Illustration
page 8 - 4 MHP16/47 – 11544A
8. Operation
RAISE /
LOWER
EXTEND /
RETRACT
LEVEL
PLATFORM
SLEW
1. Boom
Raise / Lower
2. Boom
Extend / Retract
3. Level Platform
4. Slew
UP
UP
LEFT
UP
DOWN
DOWN
RIGHT
DOWN
DANGER
