■ AC outlet RCD/ELCB (option)

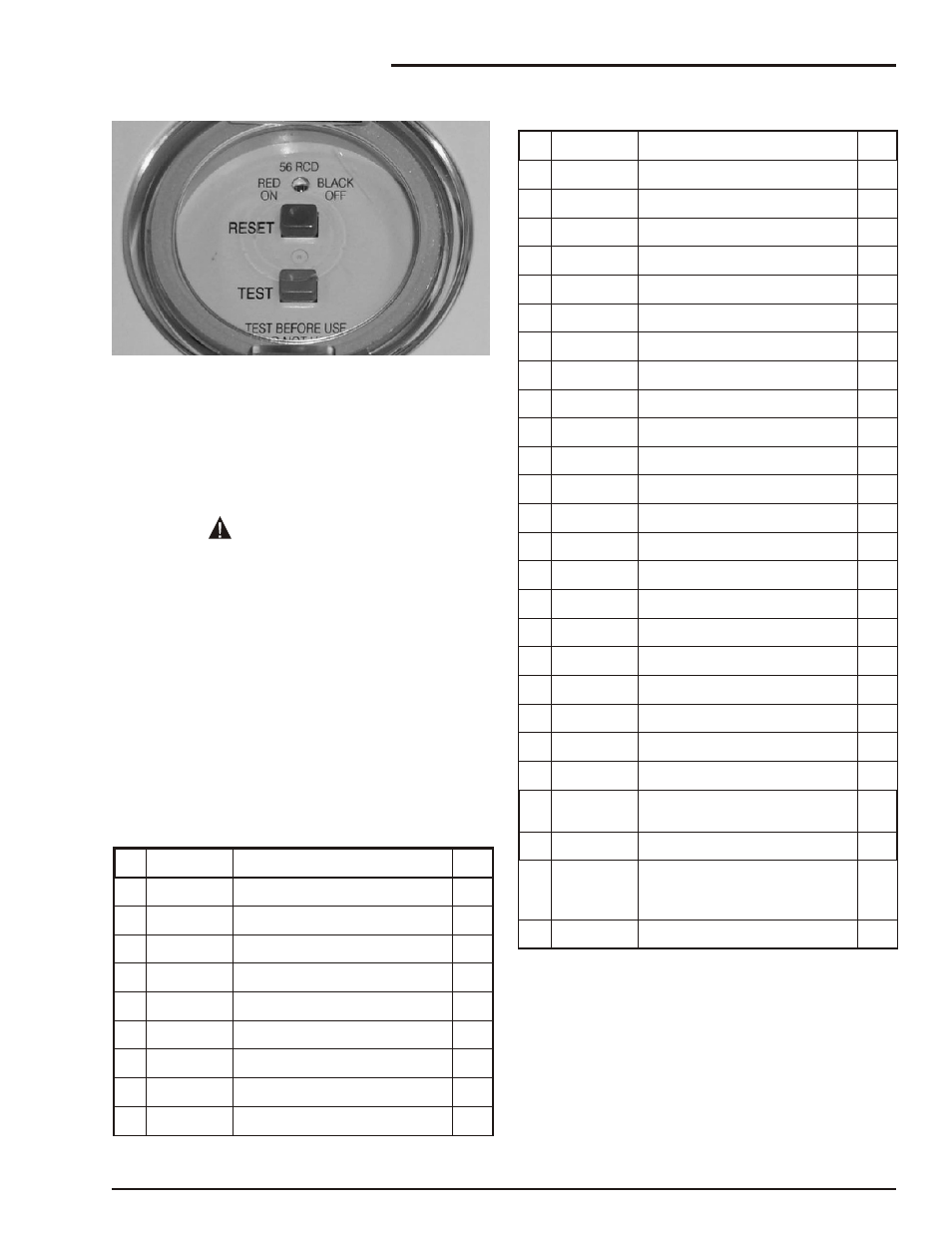

Figure 7.24 - AC Outlet RCD/ELCB
If the MHP16/47 has this op tion fit ted check the
RCD works by con nect ing a power source to the
base in let and an ap pli ance to the plat form out let.
Push the test but ton on the RCD/ELCB de vice and
the power out let at the plat form should not work.
RCD/ELCB devices should only be replaced
by a qualified electrician.
■ Placards and decals
Look to see that all plac ards and de cals are in place
and leg i ble. Re place any miss ing or il leg i ble plac -
ards or de cals be fore plac ing the Snorkelift into
ser vice for the daily work shift.
De cal and plac ard kits for the MHP16/47 are avail -
able from Snor kel deal ers.
❑
Standard placards and decals
See page 7 - 8 for the fol low ing items:
MHP16/47 – 11544A page 7 - 7
7. Daily Inspection and Maintenance
No Part No Description Req
10 018-1040 Decal - Ground control stripe 8
11 560239 Decal - Snorkel 2
12 11227-16 Decal - MHP16/47 2
13 007-1925 Decal - Gasoline 1
14 300699 Decal - Operator checklist 1
15 0130025 Decal - Warning 1
16 0323897 Decal - Danger 2
17 476706 Decal - Danger explosive gas 1
18 11543 Decal - Lower control box 1
19 0323899 Decal - Electrocution hazard 2
20 0150602 Decal - Descending boom 2
21 451986 Decal - Limit switches 2
22 9223-3 Decal - Chevron 4
23 10110 Decal - Outrigger control 1
24 8945 Decal - Vin plate 1
25 11543-1 Decal - Upper controls 1
26 2025-215E Decal - Safe working load 1
27 99228 Decal - Caution 1
28 11287-3 Decal - Chevron 4
29
30 10036 Decal - Cradle latch 1
31 9210 Decal - Lower control station 1
32 0101629 Decal - Descending boom &
outrigger 1
33 1696 Decal - Boom instruction 1
34 1843
9428
Decal - Warning (N.Z. Only)
Decal - Danger (Aust Only)
1
1
35 10554 Decal - Emergency lower 1
CAUTION
No Part No Description Req
1 9972 Serial number plate 1
2 451776 Decal - Hydraulic fluid level 1
3 10817-2 Decal - Snorkel 2
4 302950 Decal - Hydraulic oil level 1
5 7856 Decal - Tyre pressure 2
6 7855 Decal - Towing speed 1
7 9207 Decal - Hydraulic oil 1
8 9209 Decal - Emergency lower inside 1
9 007-0418 Decal - Snorkelift 2
