RCD/ELCB AC outlet

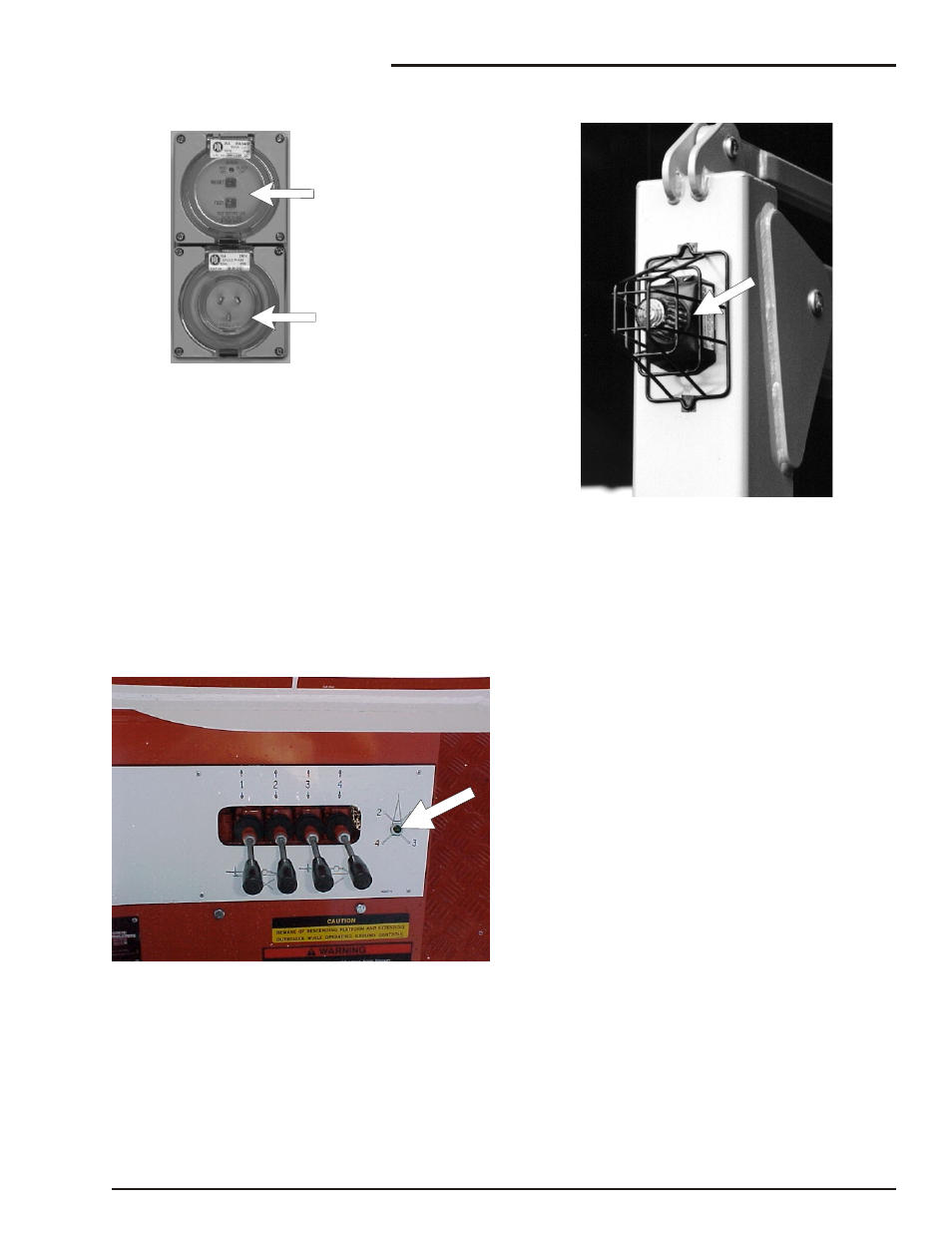

Figure 2.8 - RCD / ELCB AC Outlet
The RCD (Re sid ual Cur rent De vice) is lo cated at
the base and will pro tect against short cir cuits to
earth. When there is a short cir cuit the RCD will
shut down the 230v AC power to the plat form out -
let.
To re set the out let dis con nect the power tool lead
from the plat form box and re set the RCD at the
base.
If the prob lem per sists call a trained ser vice tech ni -
cian.
❑
Lift enable light
Figure 2.9 - Lift Enable Light
A lift en able light is lo cated ad ja cent to the out rig ger
con trols. The platform can only be raised when this
light is lit. When this light is not lit the platform will
not raise because the outriggers are not properly
set.
There is also a du pli cate lift en able light lo cated on
the ground con trol box.(See chap ter 6 page 2).
❑
Flashing light
Figure 2.10 - Flashing Light
The flash ing light alerts peo ple that the MHP16/47
is mov ing. The light flashes at about one flash per
sec ond any time the MASTER KEY switch is on.
There is no ON/OFF switch for the flash ing light, it
can not be turned off while the MHP16/47 is run -
ning.
MHP16/47 – 11544A page 2 - 3
2. Safety Devices
RCD
Power Input
Connector
