13. CHANGING FUNCTIONS USING THE DIP SWITCHES
84

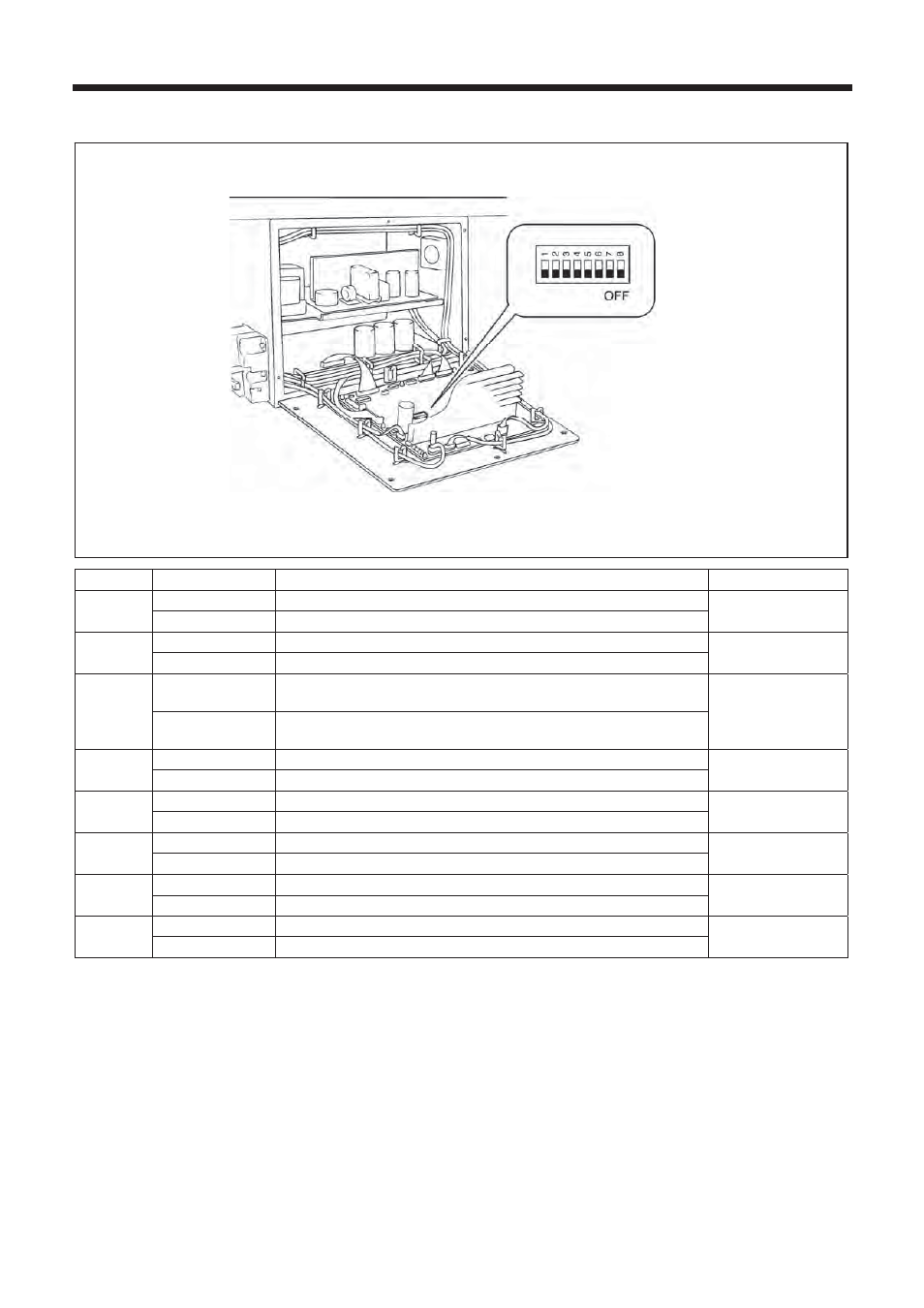

Circuit board DIP switch 2
No. ON/OFF Setting items Default
ON Pedal: for standing operation
1
OFF Pedal: for seated operation
OFF
ON Starting possible only when work clamp is lowered
2
OFF Starting possible regardless of work clamp position
OFF
ON
During standing pedal operation, the work clamp lowers only
while the work clamp pedal is being depressed.
3
OFF
During standing pedal operation, the work clamp keeps
lowering when the work clamp pedal is released.
OFF
ON -
4
OFF -
OFF
ON -
5
OFF -
OFF
ON 100V, 110V specifications
6
OFF 200V, 220V, 230V, 380V, 400V specifications
ON/OFF
ON -
7
OFF -
OFF
ON -
8
OFF -
OFF
Note:
Move the switches properly.
