HE-800A
5. OPERATION
36

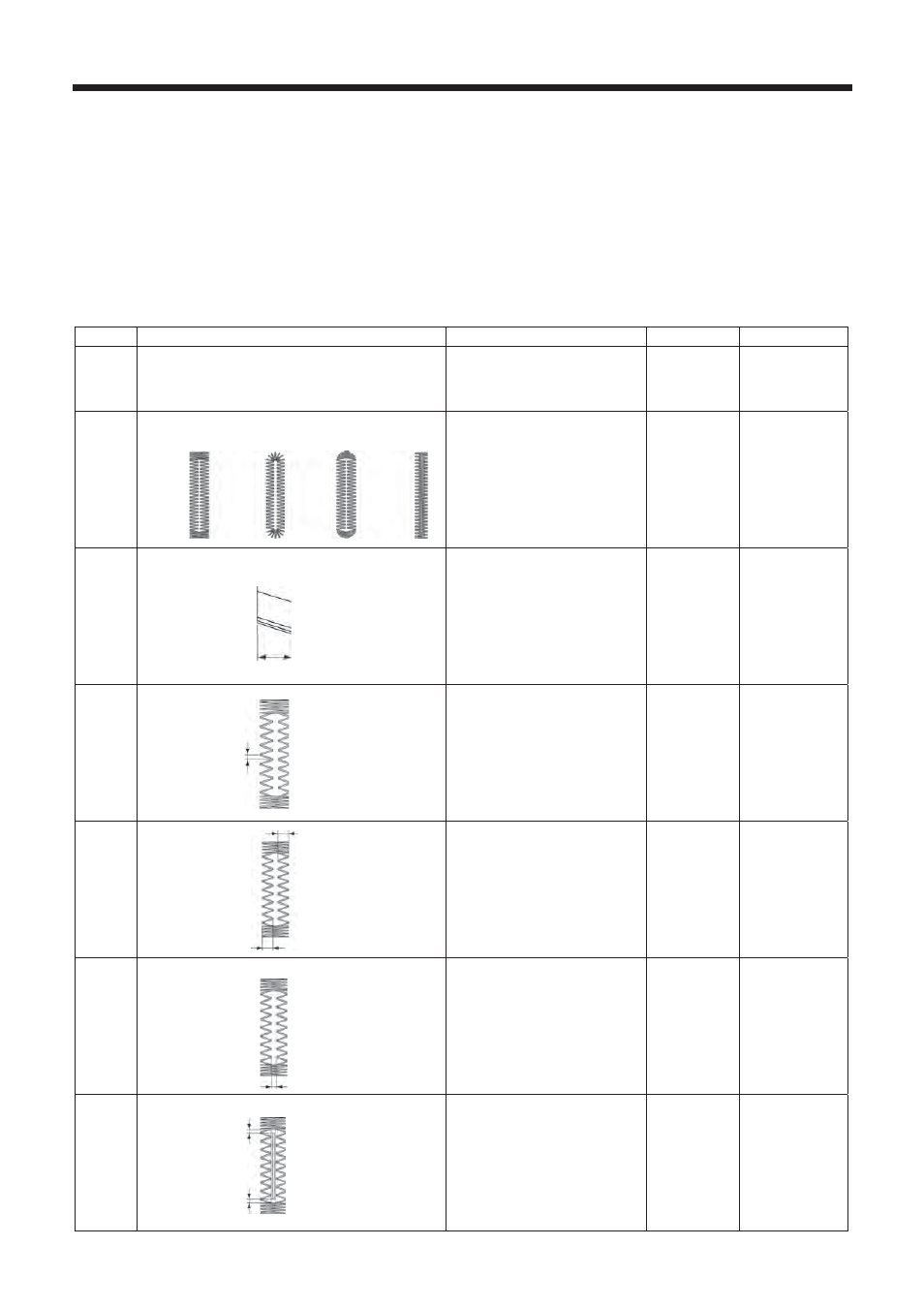

ዑ-ዑ. Parameter table
ƒ The parameter values can be stored independently for each program.
ƒ The allowable setting range for some parameters may vary from the range specified, depending on the settings of
other parameters. (Refer to “5-5-4. Main restrictions when setting parameters”.)
• Depending on the needle zigzag amount and feed amount settings, it may not be possible to carry out sewing at
some setting speeds.
ƒ The zigzag width ratio cannot be set when the rear tack pattern is set to an eyelet pattern.
ƒ If all underlays have been set, the order of sewing is underlays sewn together, then saw-shape underlays and then
rectangle underlays.
• Parameters that are not applicable to a particular program will be skipped and not displayed.
No. Setting items Setting range Unit Default
00 Sewing speed (zigzag part) 1,000 - 4,000 sti/min 100
specifications>
3,600
3,200
Buttonhole stitch/Straight tack stitch 01
0: 1: 2: 3: 4:
0: Buttonhole (free)
1: Buttonhole (rectangle)
2: Buttonhole (radial)
3: Buttonhole (round)
4: Bar tack
1 1
02 Length of knife
4.0 - 32.0mm
However, when panel DIP
switch B – No. 3, No. 4 and
No. 5 are at OFF, OFF and
ON respectively when
initialization is carried out, the
initial value will be set to 6.0. 0.1 13.0
ዄ6.0ዅ
04 Zigzag pitch 0.10 - 2.00mm 0.025 0.350
05 Zigzag width 1.0 - 3.0mm 0.1 1.5
06 Knife X space
-0.4 - 1.0mm 0.1 0.4
07 Knife Y space
0.00 - 2.00mm 0.05 1.00
