HE-800A
4. INSTALLATION
16

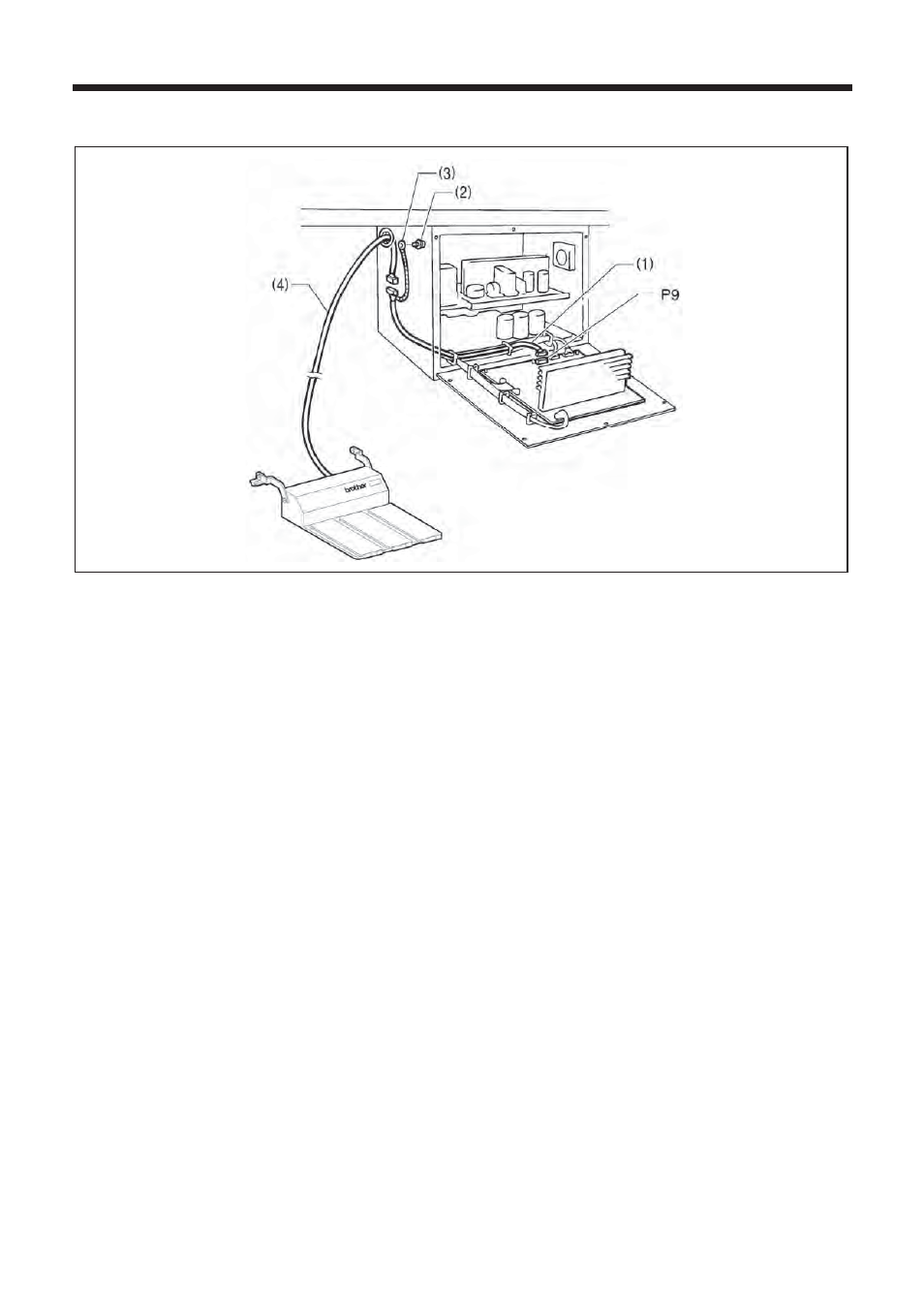

ዐ-ውው-ዑ. Connecting the standing operation pedal harness (option)
1. Pass the marked tube of the standing operation pedal harness (1) into the control box through the hole in the control
box.
2. Connect the standing operation pedal harness (1) to connector P9 on the main circuit board.
3. Remove the screw (2) which is securing the ground wires, and then add the ground wire (3) of the standing
operation pedal harness (1) and re-tighten the screw (2). (The green-and-yellow wire is the ground wire.)
4. Connect the harness (4) to the standing operation pedal harness (1).
* Connect the harness (4) and the standing operation pedal harness (1) inside the control box.
4111M
