5. OPERATION
45
No. Setting items Setting range Unit Default
67 Sewing end tension apply timing
-5 - 0 stitches 1 0
Rear tack width (rectangle only) 68
OFF: Condense stitch 0.1 - 1.5mm
OFF: Condense stitch
0.1 - 1.5mm
(Normally set to 1.0)
0.1 OFF
69 Program copy OFF,
1 – 90 (Specify copy source) 1 OFF

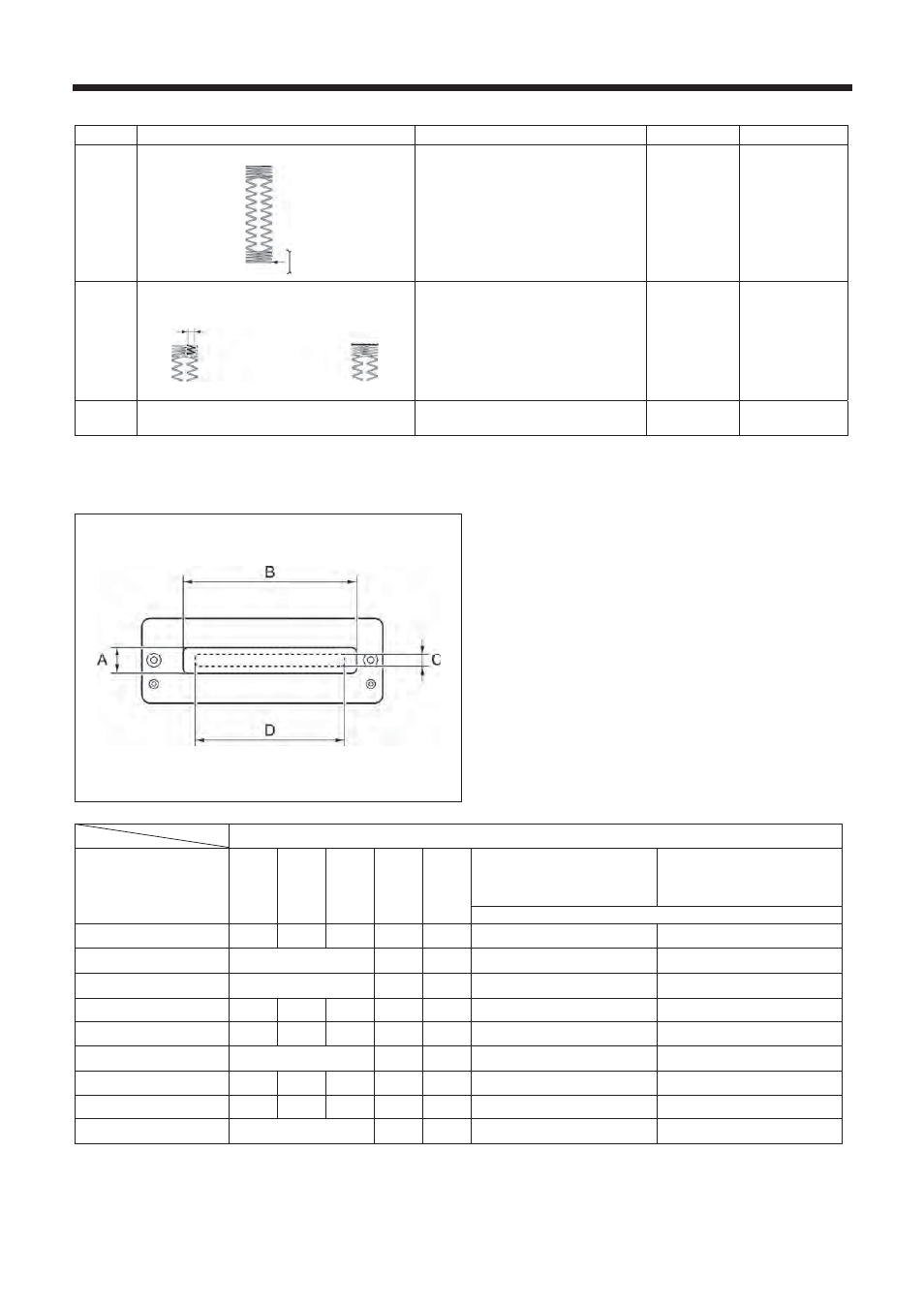

ዑ-ዑ-ው. Available sewing area
The available sewing area (C x D) is determined by a
combination of the work clamp size (A x B) and the
needle plate hole size. Set panel DIP switch B correctly
in accordance with the work clamp and needle plate
being used. (Refer to "13-1. Panel DIP switches".)
If DIP switch B is not set correctly, it will not be possible
to set the normal values for the parameter. In addition,
the needle and cutter may touch the work clamp and
needle breakages or damage to the cutter may result.
DIP switch B setting
No.6
ዙON
ዄNeedle plate hole size
5.4mm ዅ
No.6
ዙOFF
ዄNeedle plate hole size
7.3mm ዅ
Work clamp size
(A X B)
No.3 No.4 No.5 No.7 No.8
Available sewing area (C x D)
5.4 X 19.0 OFF OFF ON N/A N/A 4.0 X 15.0 4.0 X 15.0
5.4 X 24.5 OFF ON 4.0 X 20.0 4.0 X 20.0
5.4 X 36.0 OFF OFF 4.0 X 32.0 4.0 X 32.0
6.8 X 24.5 OFF ON ON N/A N/A 4.0 X 20.0 5.4 X 20.0
6.8 X 36.0 ON OFF OFF N/A N/A 4.0 X 32.0 5.4 X 32.0
6.8 X 47.0 ON OFF 4.0 X 40.0 5.4 x 40.0
7.3 X 24.5 ON OFF ON N/A N/A 4.0 X 20.0 6.0 X 20.0
7.3 X 36.0 ON ON OFF N/A N/A 4.0 X 32.0 6.0 X 32.0
7.3 X 47.0 ON ON 4.0 X 40.0 6.0 X 40.0
ON, ON, ON or OFF, ON, OFF or OFF, OFF, OFF
