Page 28
HE-800A
4. INSTALLATION
20

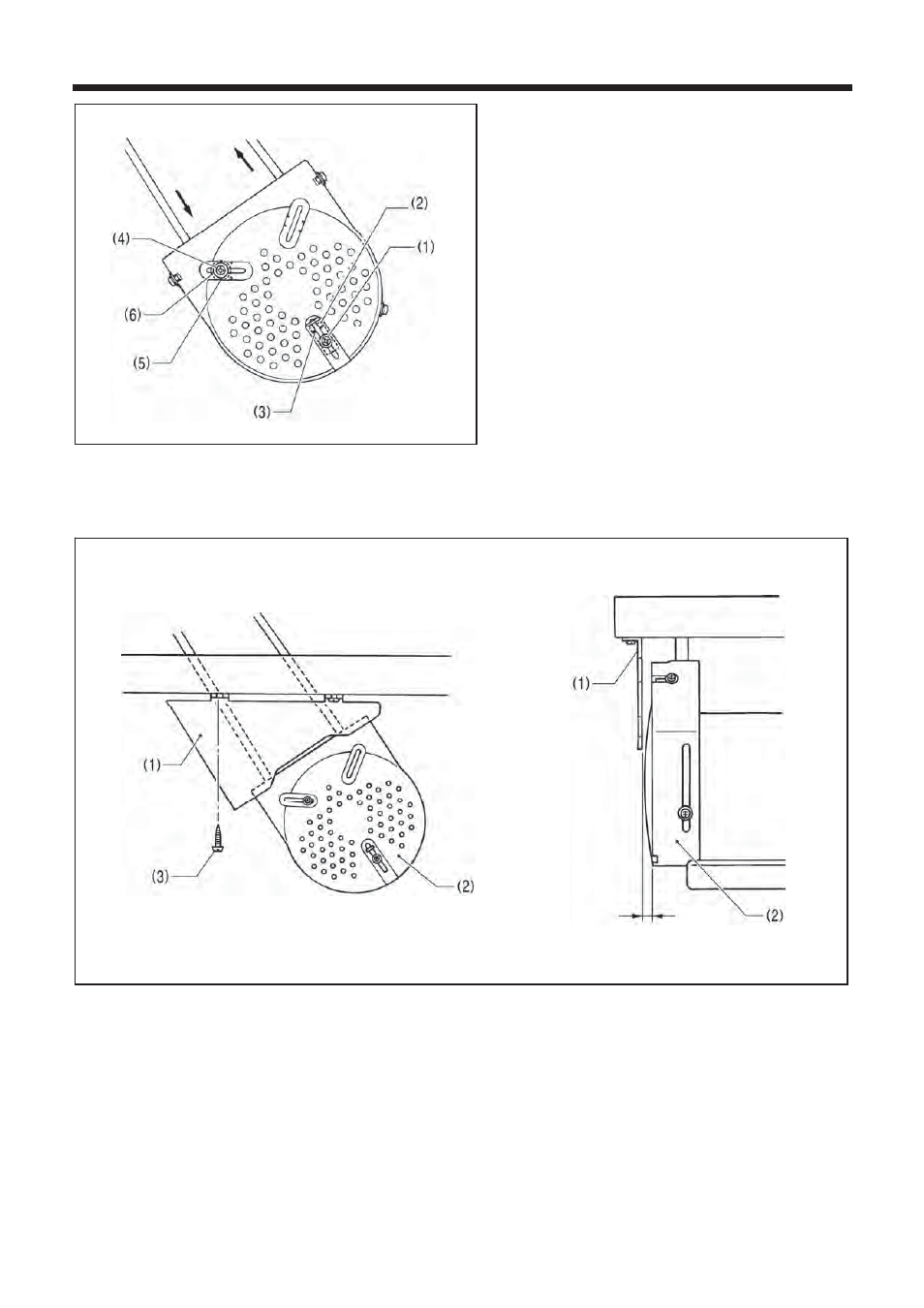

Adjusting the belt holder
1. Loosen the screw (1).
2. Align the boss of the belt holder (2) with the mark
(3).
3. After adjusting, tighten the screw (1).
Adjusting the finger protector
1. Loosen the screw (4).
2. Align the center of the screw (4) with the mark (5) to
adjust the position of the finger protector (6).
3. After adjusting, tighten the screw (4).
ዐ-ውዏ. Installing the belt cover plate
Note: If the machine head is positioned horizontally, there is no need to install the belt cover plate.
Install the belt cover (1) with the two wood screws (3) so that it does not touch the motor belt cover (2).
* Set the belt cover plate (1) so that there is a gap of 3 mm or more in the longer motor direction, and also should not
be projected out from the edge of the work table.
3885Q
3887Q
3886Q
3 mm or more
