Apple Xserve (Early 2008) DIY Procedure for Enclosure User Manual
Page 81
Xserve (Late 2006/Early 2008) Power Distribution Board Cable Replacement Instructions
3
Removing the Installed Power Distribution Board Cable

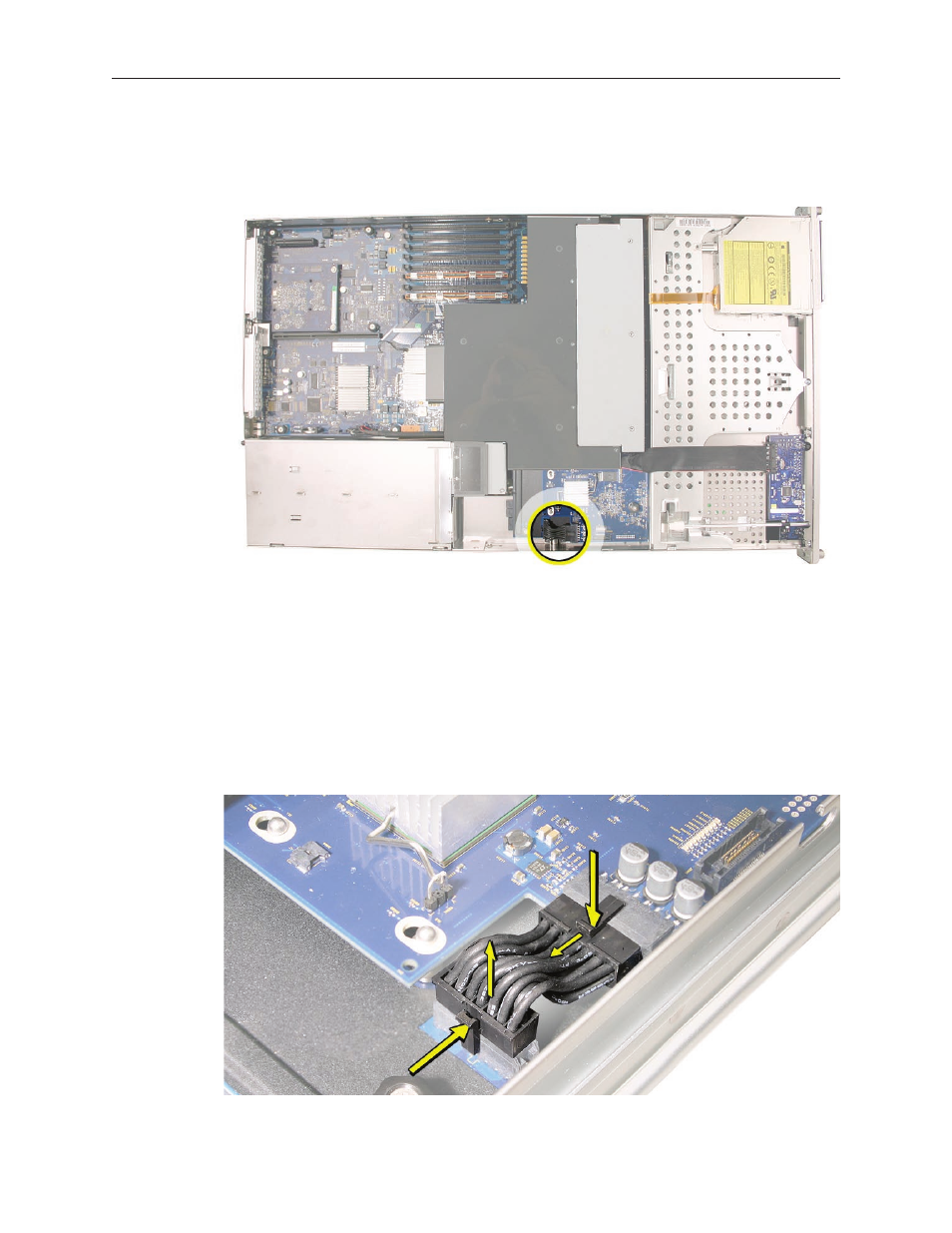

Locate the power distribution board cable.
1.
Caution:
2.
The power distribution board cable connectors are tight and can be difficult
to disconnect. You may want to use small flatblade screwdriver to gently yet firmly pry
outwards on the cable connector while depressing the cable connector latch with your
thumb and forefinger to separate the connectors.
Disconnect the cable from its connector on the drive interconnect backplane.
Disconnect the other end of the cable from the power distribution board and remove the
3.
cable from the Xserve.
