Xserve (Late 2006/Early 2008) Logic Board Replacement Instructions

24

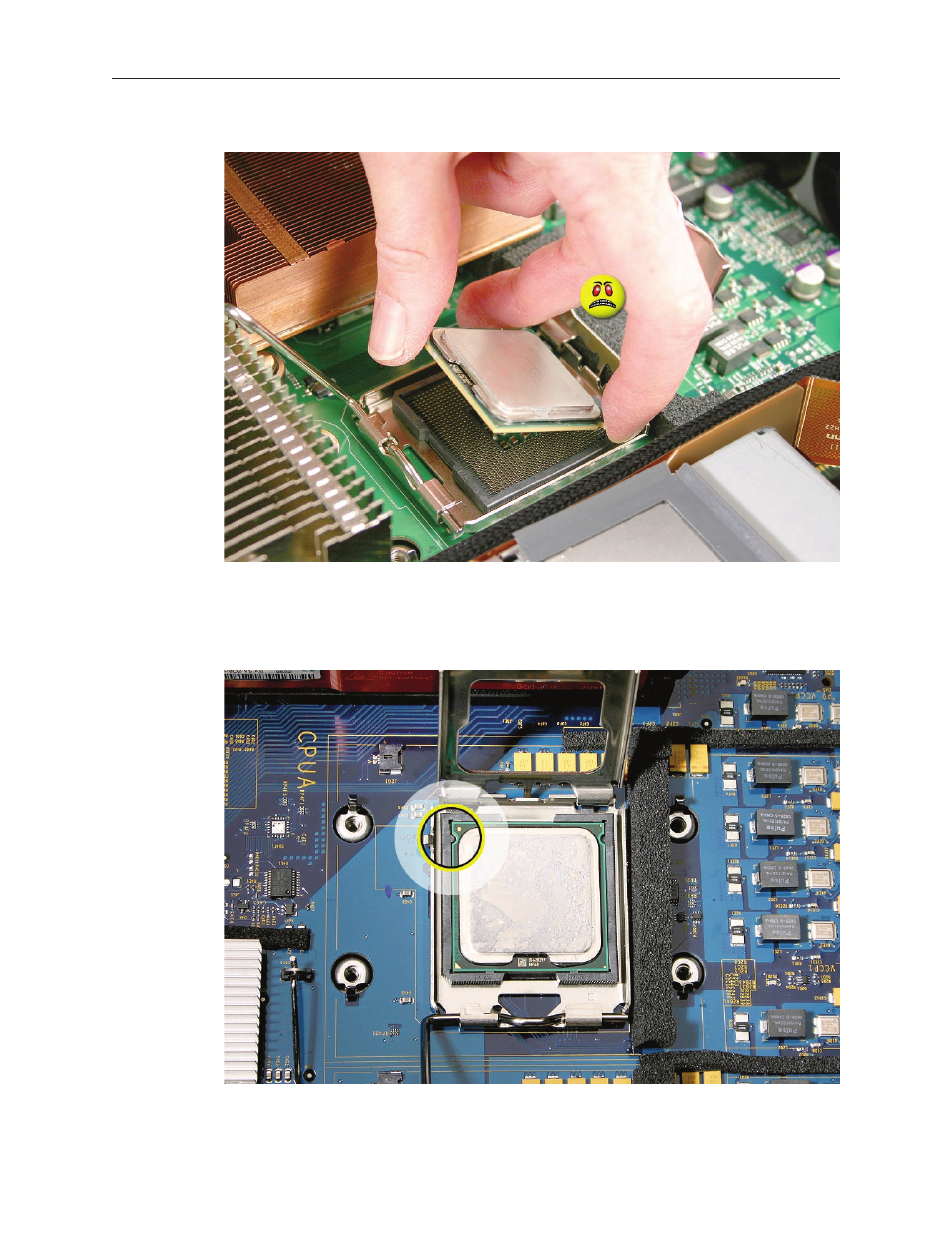

Note: When installing the processor on the logic board, align the processor notch with the
tab on the processor holder, as shown. Then lower the processor straight down onto the
socket.
