Xserve Optical Drive Replacement Instructions

Important: To minimize the possibility of damage to Xserve components due to static discharge,
wear an antistatic wrist strap, if possible, while you work inside the Xserve.

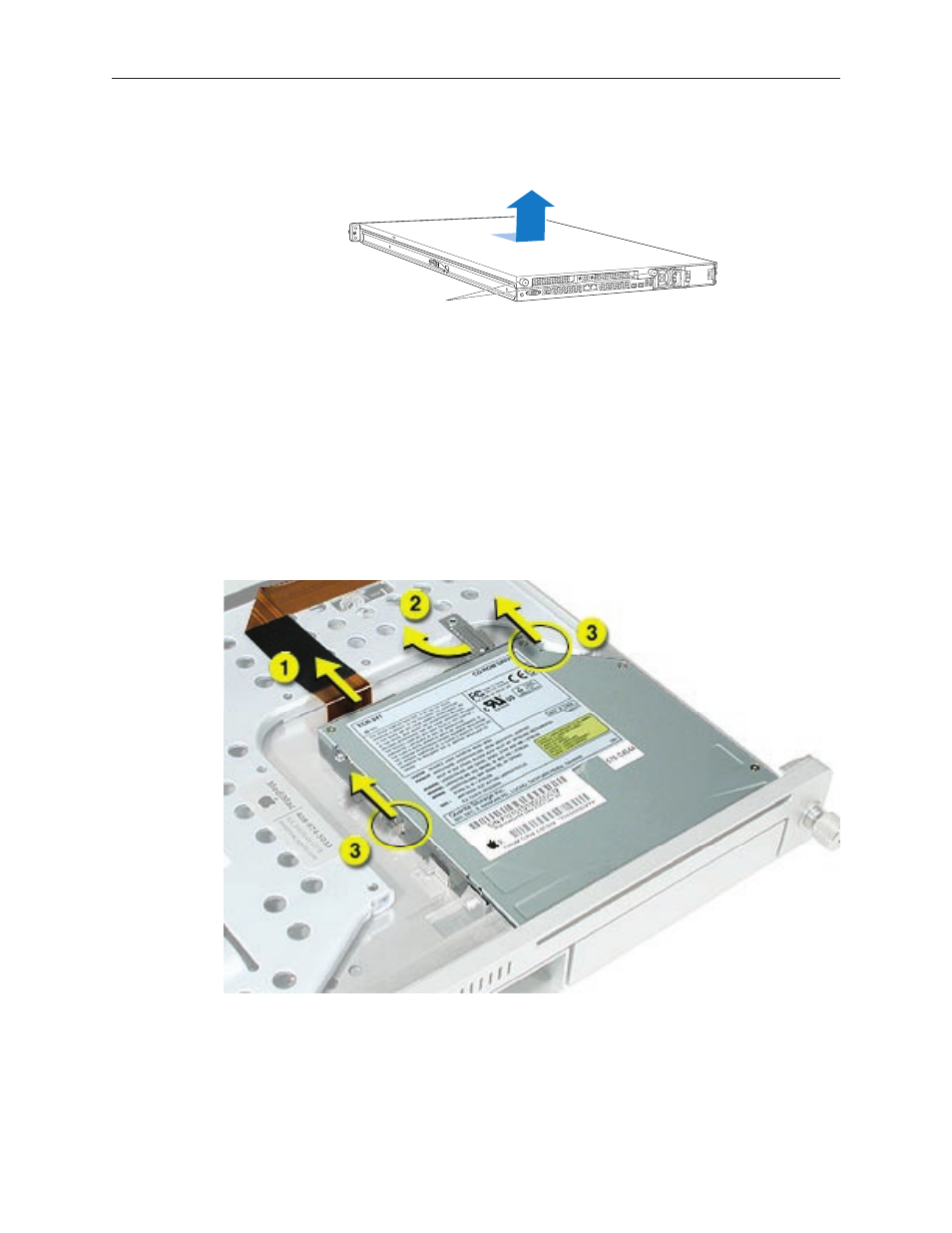

Unscrew the two
captive thumbscrews.

Slide the cover back and lift it off.

Removing the Installed Optical Drive

Disconnect the optical drive cable from the optical drive.

Rotate the optical drive clip clockwise to release it.

Placing your thumbs on the tab on either side of the drive, carefully slide the drive back from

the front bezel.

Important: When removing or replacing the optical drive, be careful not to put pressure on
top of the drive or front bezel that covers the optical drive slot.

Lift the drive out of the server.
