Xserve (Late 2006/Early 2008) Optical Drive Cable Replacement Instructions

5

Optical Drive Cable

Note: The optical drive cable is attached to the enclosure with adhesive on the underside of the
cable.

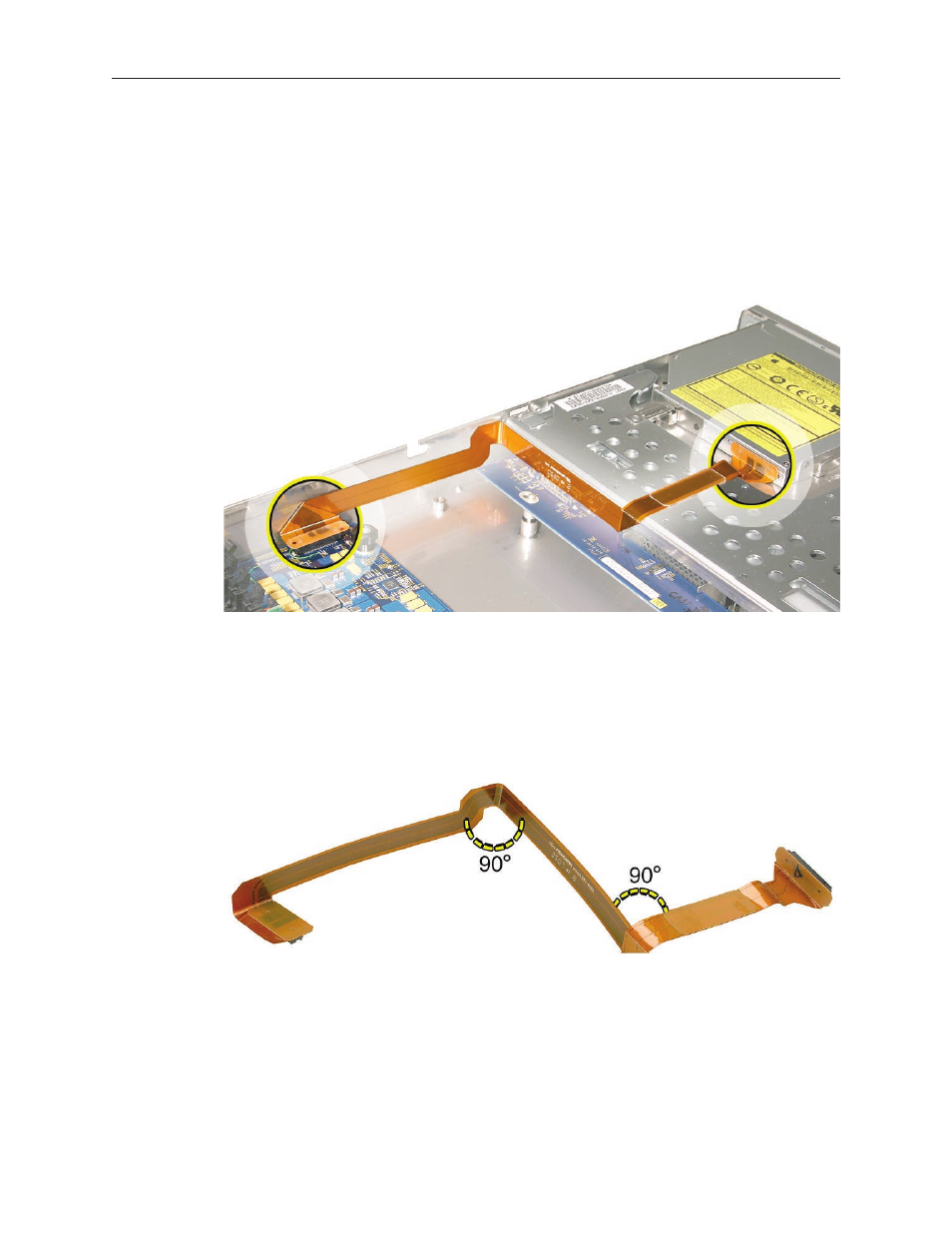

Disconnect the optical drive cable from the optical drive.

1.

Disconnect the optical drive cable from the logic board.

2.

Carefully pry the cable’s adhesive from the enclosure and remove the cable from the Xserve.

3.

Installing the Replacement Optical Drive Cable

Fold the replacement optical drive cable to 90-degree angles along its creases.

1.
