Apple Xserve (Early 2008) DIY Procedure for Enclosure User Manual
Page 44
Xserve (Late 2006/Early 2008) Backplane-to-Logic Board Cable Instructions
5
Installing the Replacement Backplane-to-Logic Board Cable

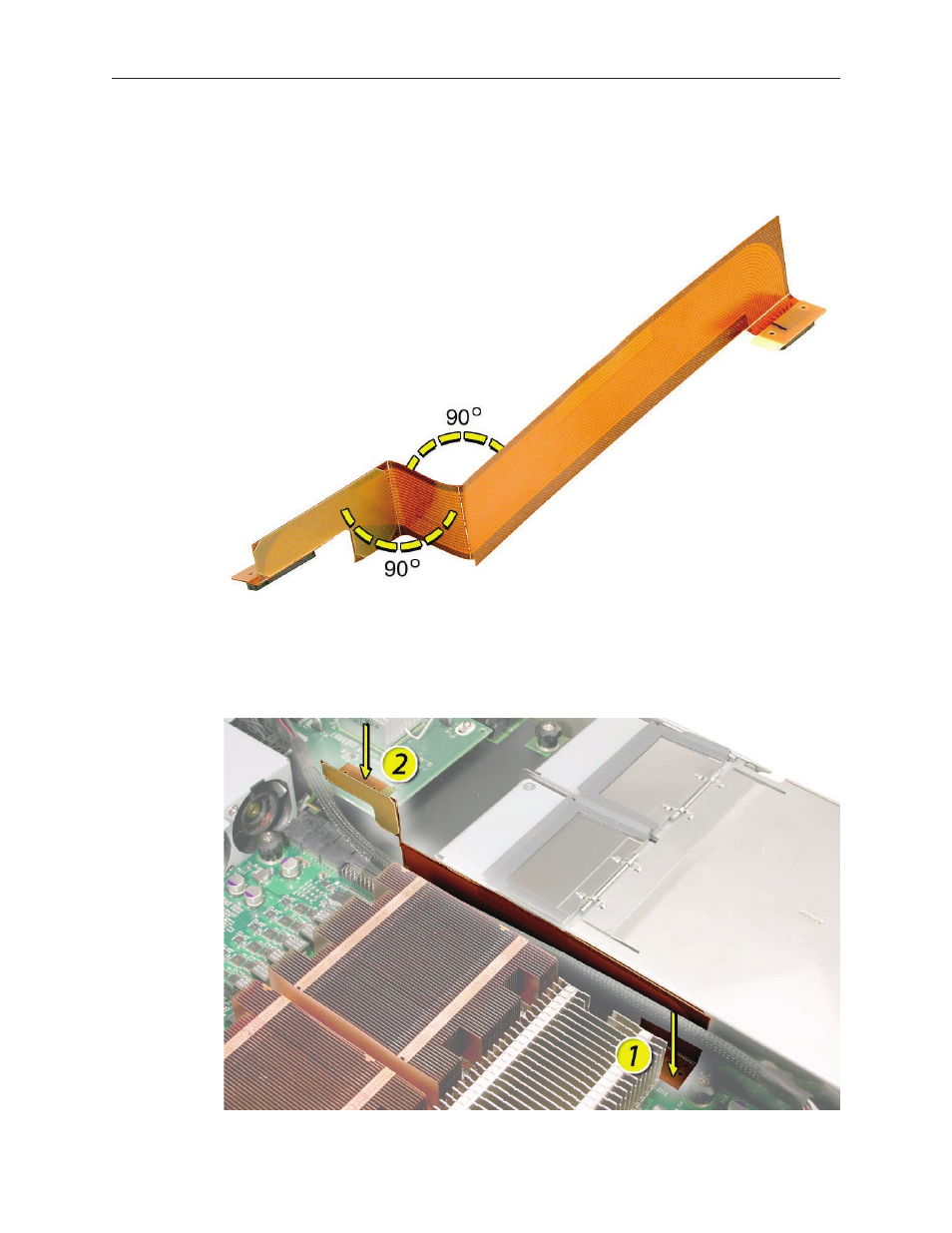

Fold the replacement cable to a 90-degree angle along its creases.
1.
Connect the cable to the logic board first. Then press the adhesive section of the cable onto
2.
the enclosure before connecting the other end of the cable to the backplane.
Caution: Make sure the cable is fully seated.
