How many injectors do you want to control with the F/IC?

The F/IC has 6 Injector drivers with two wires per driver. The wires for the

unused drivers can be eliminated.

Do you want to control the primary injectors on the engine, or control additional
secondary injectors?

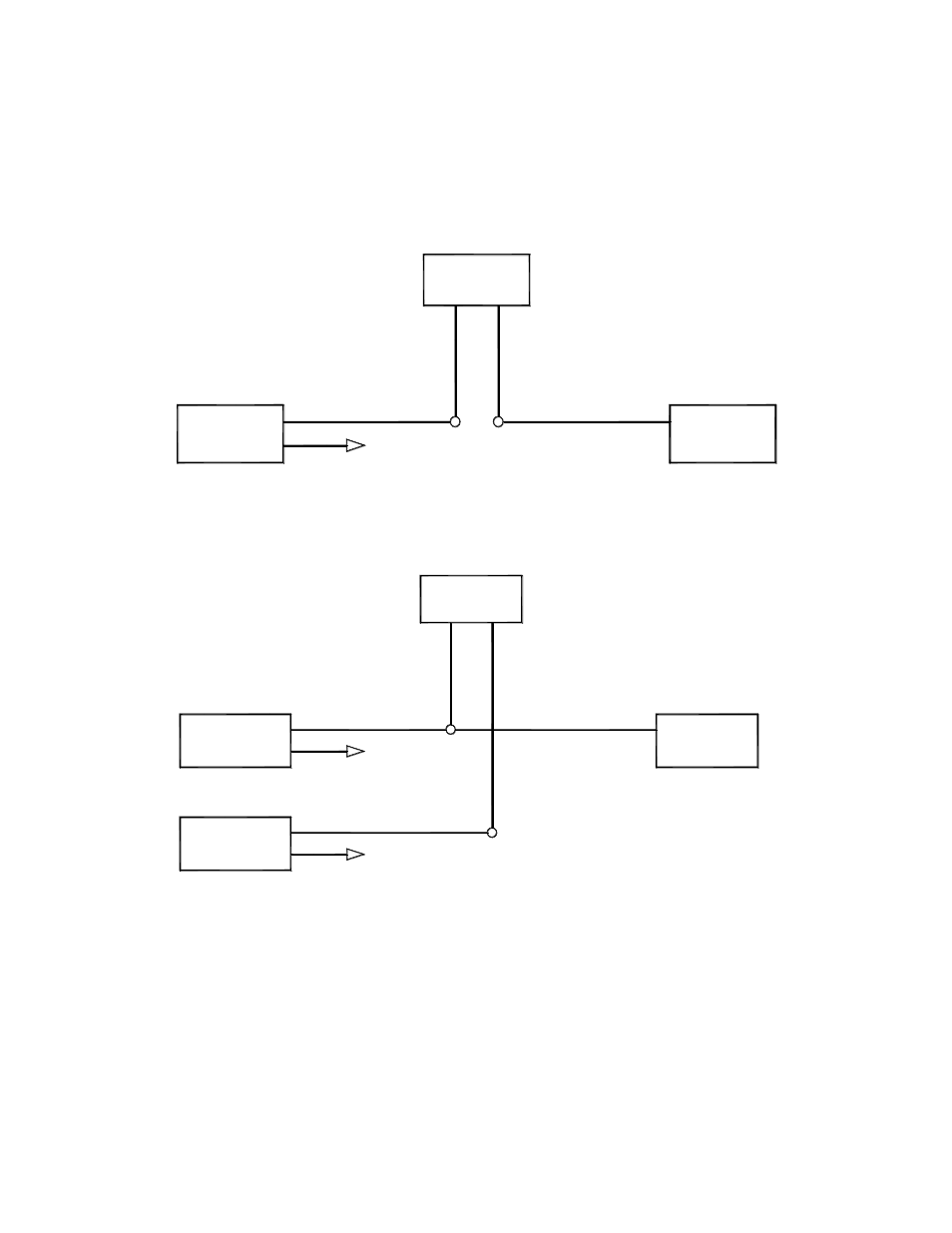

Connect the injectors as shown below in Figure 11 or 12.

INJ

1 O

UT

FIC

FUEL

INJECTOR 1

TO +12V

INJ

1 I
N

FUEL INJ 1

ECU

Figure 11: Primary fuel injector connection

INJ 1

IN

FIC

TO +12V

SECONDARY

FUEL INJECTOR 1

PRIMARY FUEL

INJECTOR 1

TO +12V

INJ

1 O

UT

FUEL INJ 1

ECU

Figure 12: Secondary fuel injector connection
