AEM 30-1913 Universal Fuel Ignition Controller 6 Channel User Manual
Page 12

Page 12
Or

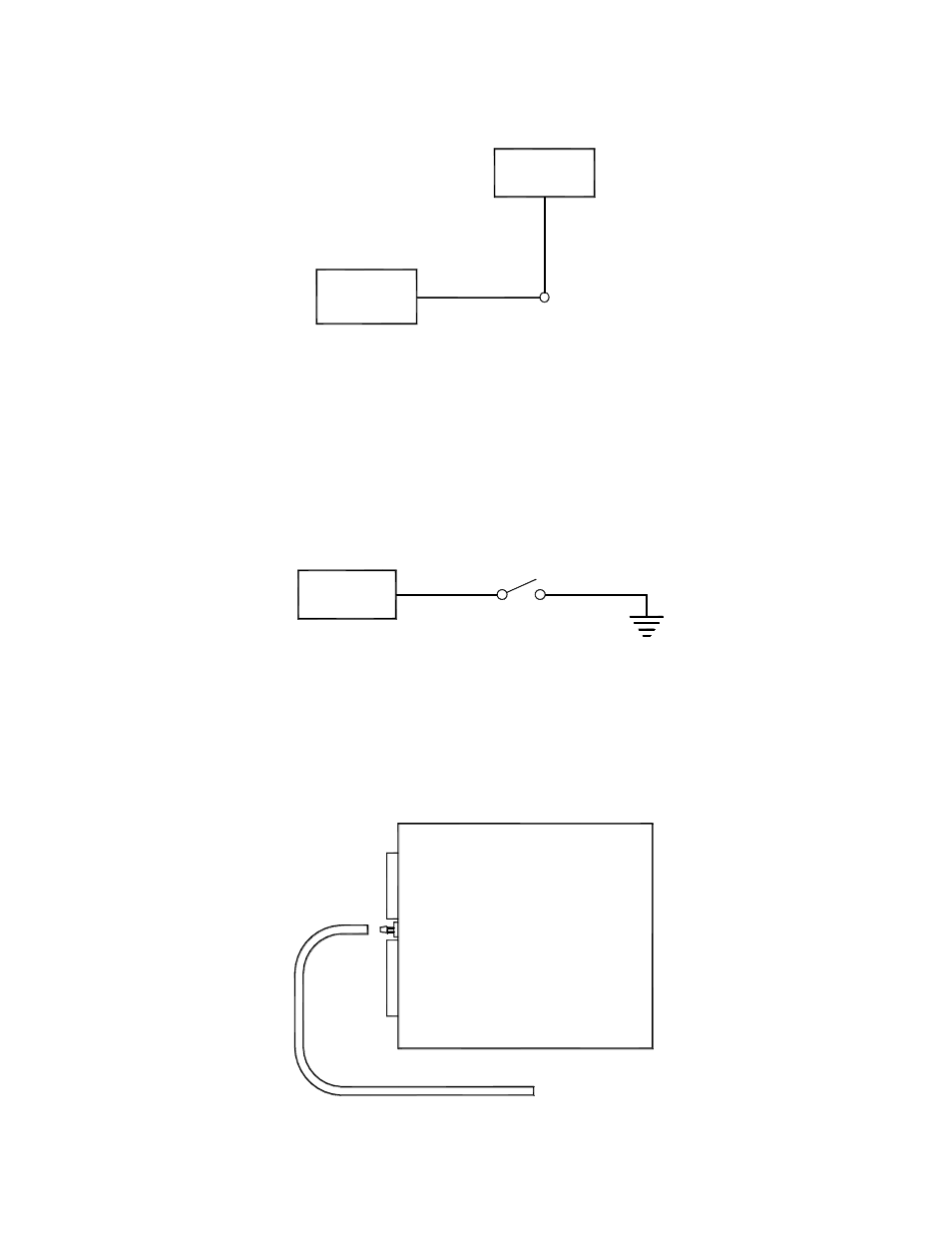

connect the “Auxiliary Input” as shown below. See Figure 23.
FIC
0-5V OUT
UEGO
AU
X IN
Figure 23: Auxiliary gauge connection
Do you want to use the F/IC’s Internal Data Logger or the Dual Calibration mode?
If so, connect the
“Switch Input” as shown below in Figure 24.
FIC
SW IN
Figure 24: Switch input connection
Connect the
“Boost Line” to manifold pressure (After Throttle Body) as shown
below in Figure 25.
FIC
TO MANIFOLD PRESSURE
Figure 25: Boost connection
