Page 26

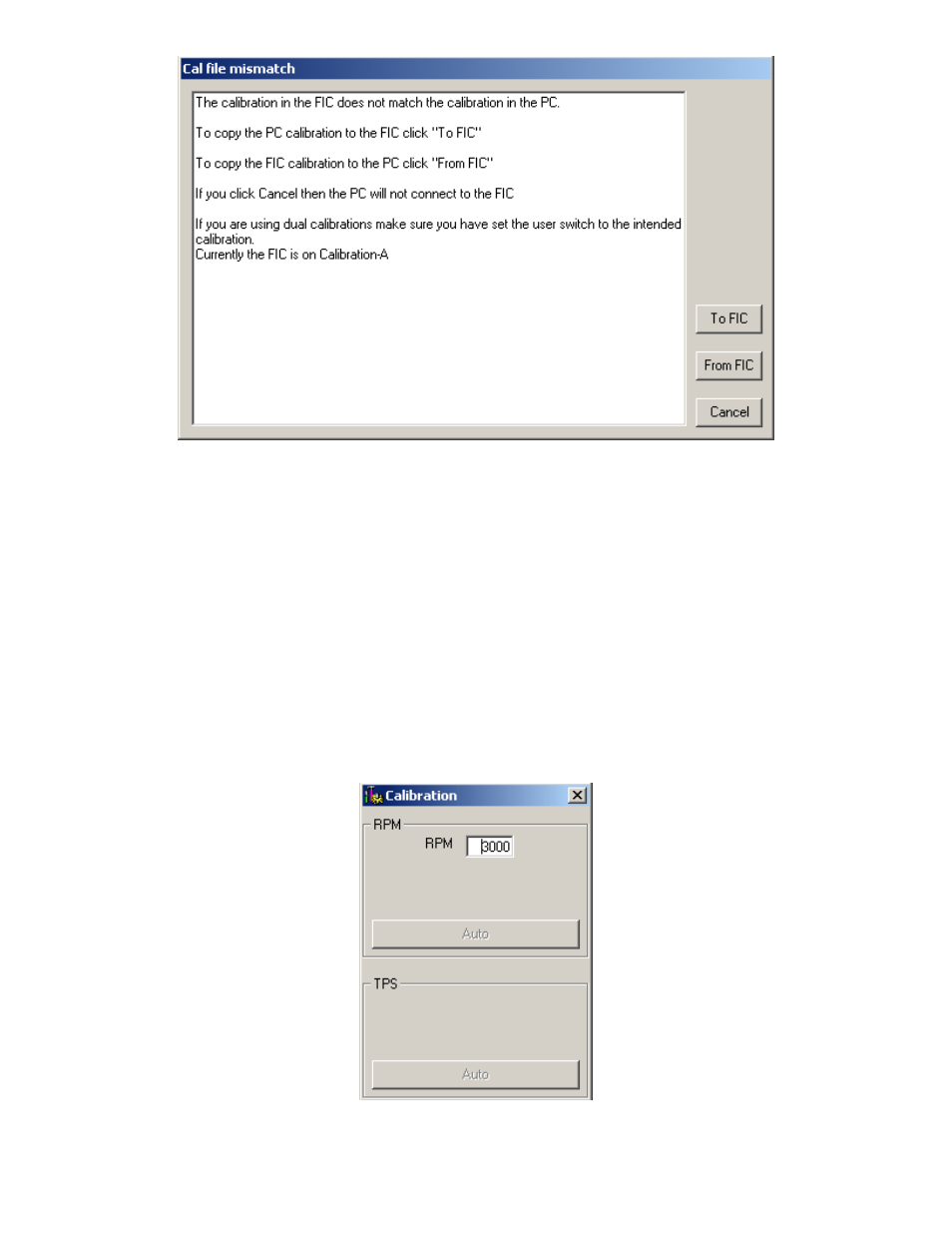

Figure 39: Connecting to the F/IC


To verify the connection status of the F/IC, the footer in the lower left corner of the
software will display either “On-line” or “Off-line”.

Uploading a Cal File:

This function is used to upload a calibration only. To upload a cal file to the F/IC,

click on file

and select “Upload Cal Only”. Select the file to upload and click open. Note:

When using the “Upload Cal Only” function, the software will overwrite the calibration in
the F/IC with the selected calibration.

Calibrating the F/IC:

When an F/IC is installed on a vehicle, it is necessary to calibrate the F/IC before

any tuning is performed. With the F/IC already connected, go to Setup>Calibration. The
calibration window will appear. See Figure 40.

Figure 40: F/IC calibration window
