Page 16

Saving a Calibration under a different name

With a Calibration open, go to File>Save As. Select a file name and location to

save the file in the

“Save As” pop-up window. See Figure 28.

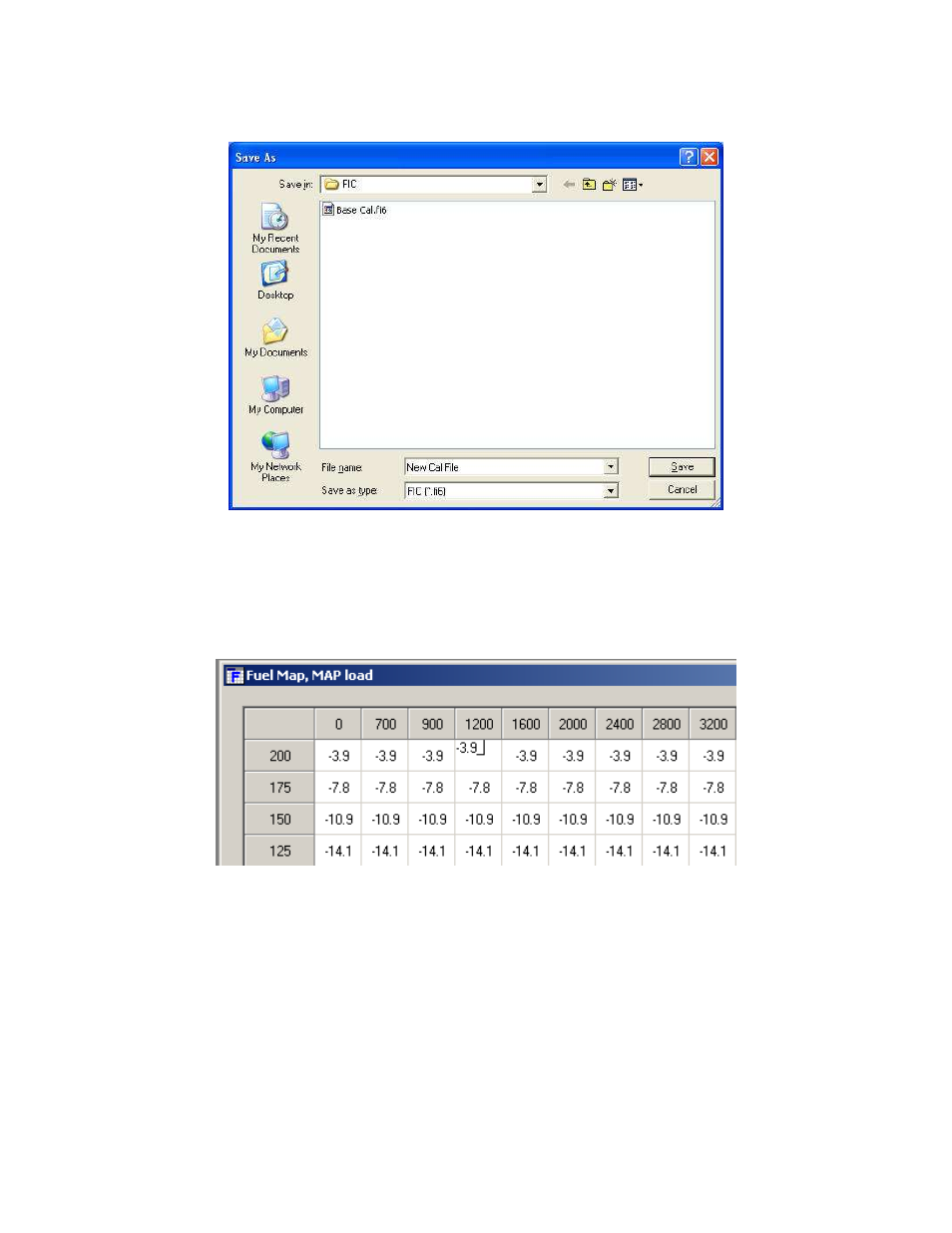

Figure 28: File Save As


Editing a Calibration

The F/IC has 6 user configurable maps. Each map is 21X17 and has user

configurable Load and RPM Breakpoints. The map cells have a white background, while
the Load and RPM Breakpoints have a gray background. See Figure 29.

Figure 29: Map cells and breakpoints
