Configuring the F/IC

With the F/IC software open, select Setup>System. See Figure 37.

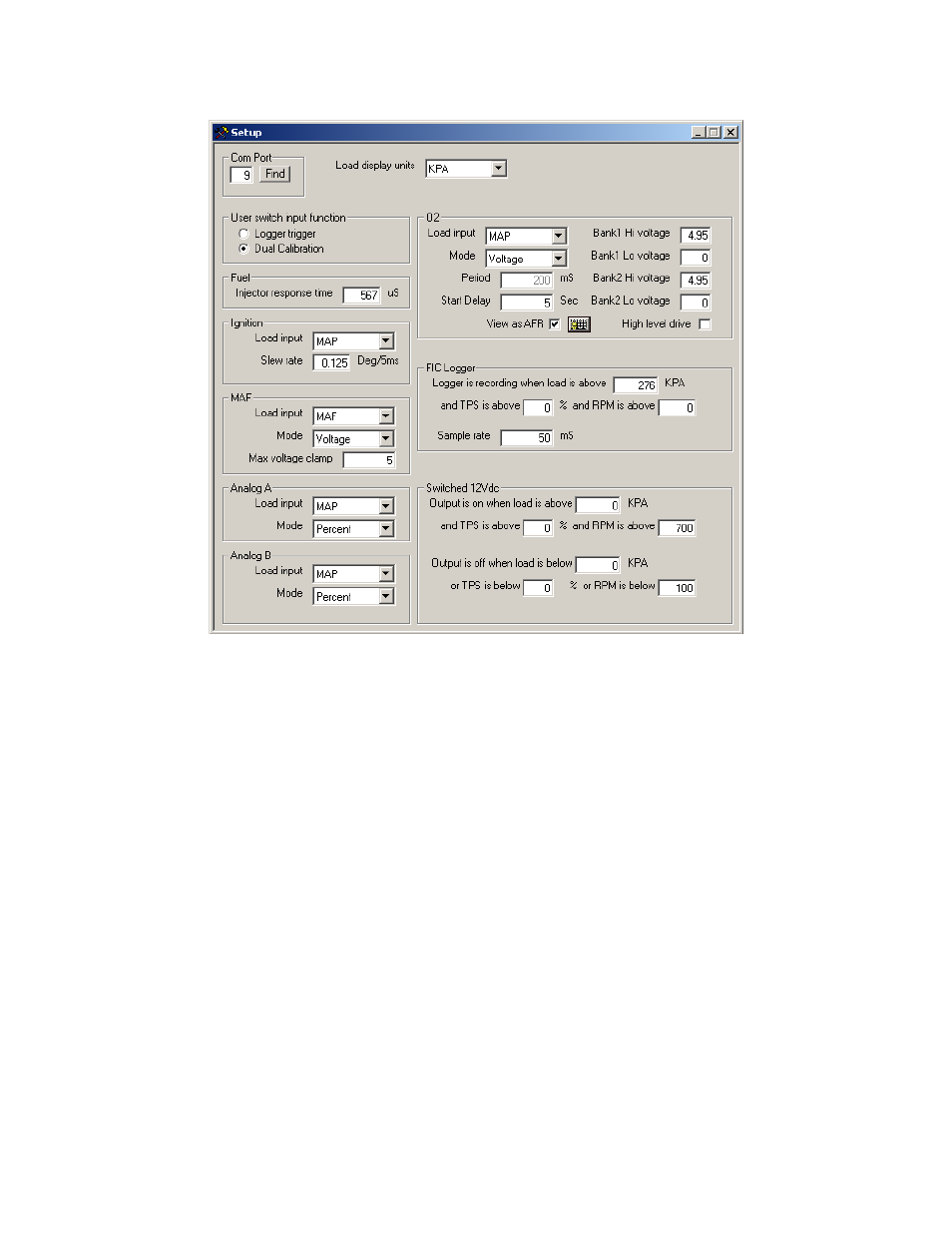

Figure 37: F/IC setup window


Com Port:

Displays the com port to which the F/IC is connected. This value will

automatically be entered once the F/IC is connected to the computer.

Load Display Units:

The on board map sensor reads load in absolute pressure. The load can

be displayed in PSI absolute or KPA absolute.

User Switch Input Function:

Select the functionality for the User Switch Input Function. The User

Switch Input either can be used to trigger the internal F/IC logger or switch
between calibrations in the dual calibration mode.

Injector Response Time
:

This is the amount of time by which the start of fuel flow lags the injector

open signal from the ECU. A typical value is 500

S.

Ignition:

Select the load input for the ignition map. Set the slew rate for the ignition

timing. A typical slew rate value is 0.125 degrees every 5 mS.
