FAA Approved Installation Manual for the

Report No 908

EDM-900 and EDM-930

Page 9 of 50 Rev J

Primary Engine Data Management System Date 5-24-14

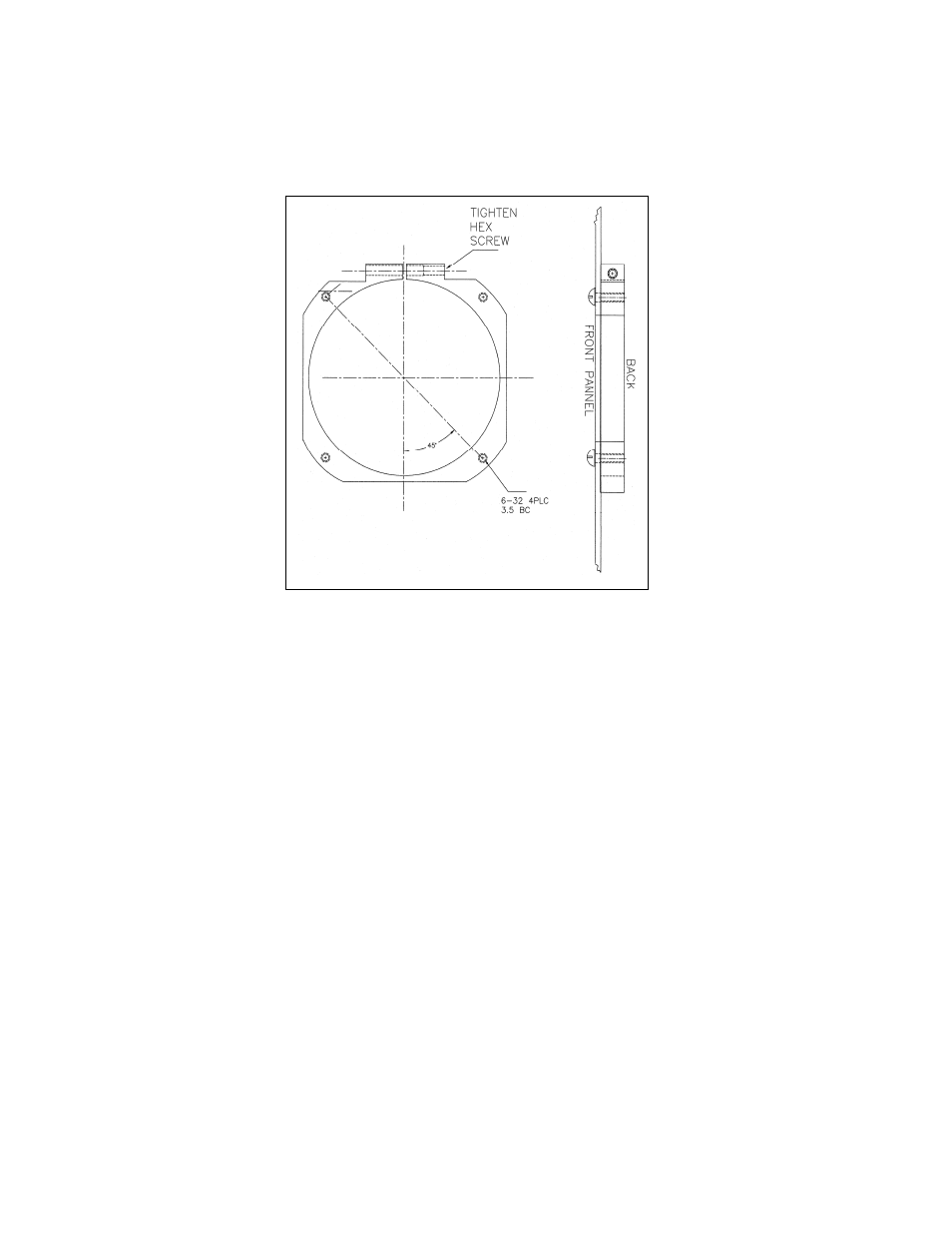

Mounting bracket for the EDM-900

EDM-900 Model:

Mounts in a standard 3.1/8” instrument hole. First, place the mounting bracket on the

instrument and tighten the clamp hex screw until you can just remove the instrument from the bracket. The
Mounting bracket is then placed behind the instrument panel hole and screwed (6-32 x ½” screws) in place using
the existing holes. Three screws should be used leaving one hole vacant on either side of the hex screw. Locate
the hex screw in a location that you can easily get to from the rear of the panel. The body of the instrument is 3.0
inches in diameter and 2.0 inches deep less connectors.
