FAA Approved Installation Manual for the Report No 908
EDM-900 and EDM-930 Page 3 of 50 Rev J
Primary Engine Data Management System Date 5-24-14
3. Instrument Labeling
The TSO label on the instrument is marked as to the instrument configuration.
The part number of the instrument is as follows:
Model designation system by part number for EDM-900/930
Model Number / Part Number Description
EDM-900 PN 790000-A- [XXX] TFT (liquid crystal) Type Display
EDM-930 PN 790000-C- [XXX] TFT (liquid crystal) Type Display
INSTRUMENTS THAT CAN BE PRIMARY IF IN POH NON-PRIMARY INSTRUMENTS
CHT
4-9
FUEL
FLOW
RAD
Alert Light EGT
4-9
Time to
empty
Fuel Remaining
Fule USED
OIL
TEMP
FUEL
PRESS
TIT OAT
CARB
Required
to WP
Shock Cooling
OIL
PRESS
RPM CDT Volts
Amps
Reserve at
WP
Differential EGT
Normalize
MAP FUEL
Quantity
IAT MPG Percent of HP
Example PN 790000-(X)-(XXX) (X) denotes EDM-900 or EDM-930, (XXX) denotes Part Number for a specific
aircraft with or without and engine STC. Each PN is specific to a Make and Model Aircraft with or without
STC. In which the information is gathered from the Aircraft POH or STC Data sheet.
Aircraft type
w/engine STC No. if
applicable
JPI assigned Data Base Part No. per
Limits found in the POH or engine STC
for a specific aircraft
Part No. Displayed on 930
RAD at Start-up or 900
message area
Cessna 182-P 534 790000-X-534
Cessna 182-P, STC12345NW 875 790000-X-875

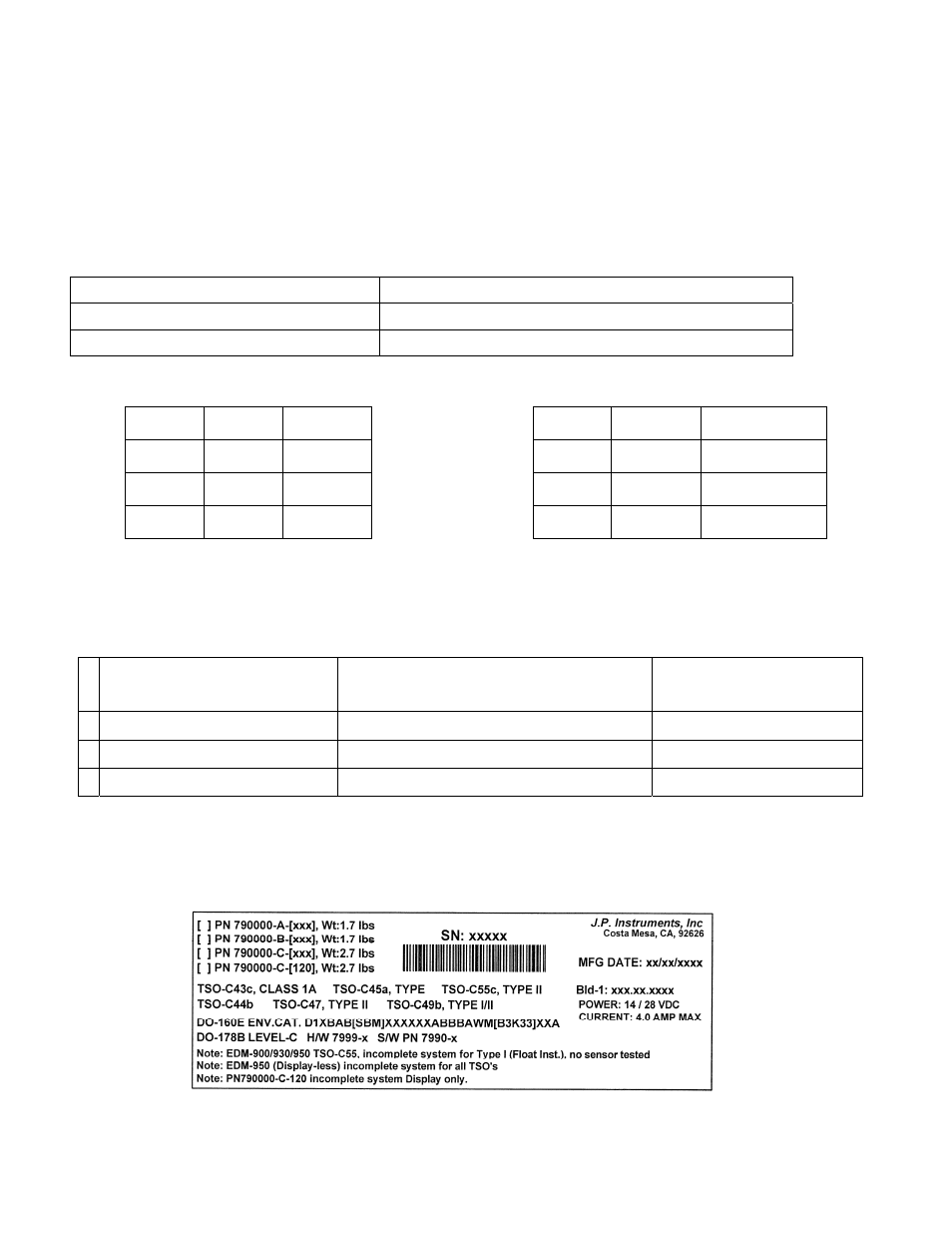

4. Primary TSO Label
