FAA Approved Installation Manual for the Report No 908
EDM-900 and EDM-930 Page 13 of 50 Rev J
Primary Engine Data Management System Date 5-24-14
13. Exhaust Gas Temperature Probe (EGT) Installation
Use the J2 connector harness 700700 or 700702 labeled E1 through E4 or E6. Remove the existing EGT gauge
and Probe. Replace with JPI probe M-111 in all exhaust stacks.
The Model M-111 Probe will fit any engines where
the existing holes in the exhaust stack are 1/8" to
1/4" in diameter. If no hole exists, it will require the
drilling of a 1/8" diameter hole and ream to fit. It is
important that each probe be mounted the same
distance from its exhaust stack flange. A nominal
distance of 2 to 4 inches from the exhaust flange is
recommended. If the recommended distance is
impractical because of obstructions, slip joints or
bends in the exhaust system then position the
probes a uniform distance from the flange as space
permits. Do not mount probes in slip joints. Be
certain to locate all holes BEFORE drilling to
ensure that nothing interferes with the probe,
clamp, screw or wire. Careful matching of probe
position will provide best temperature readings.

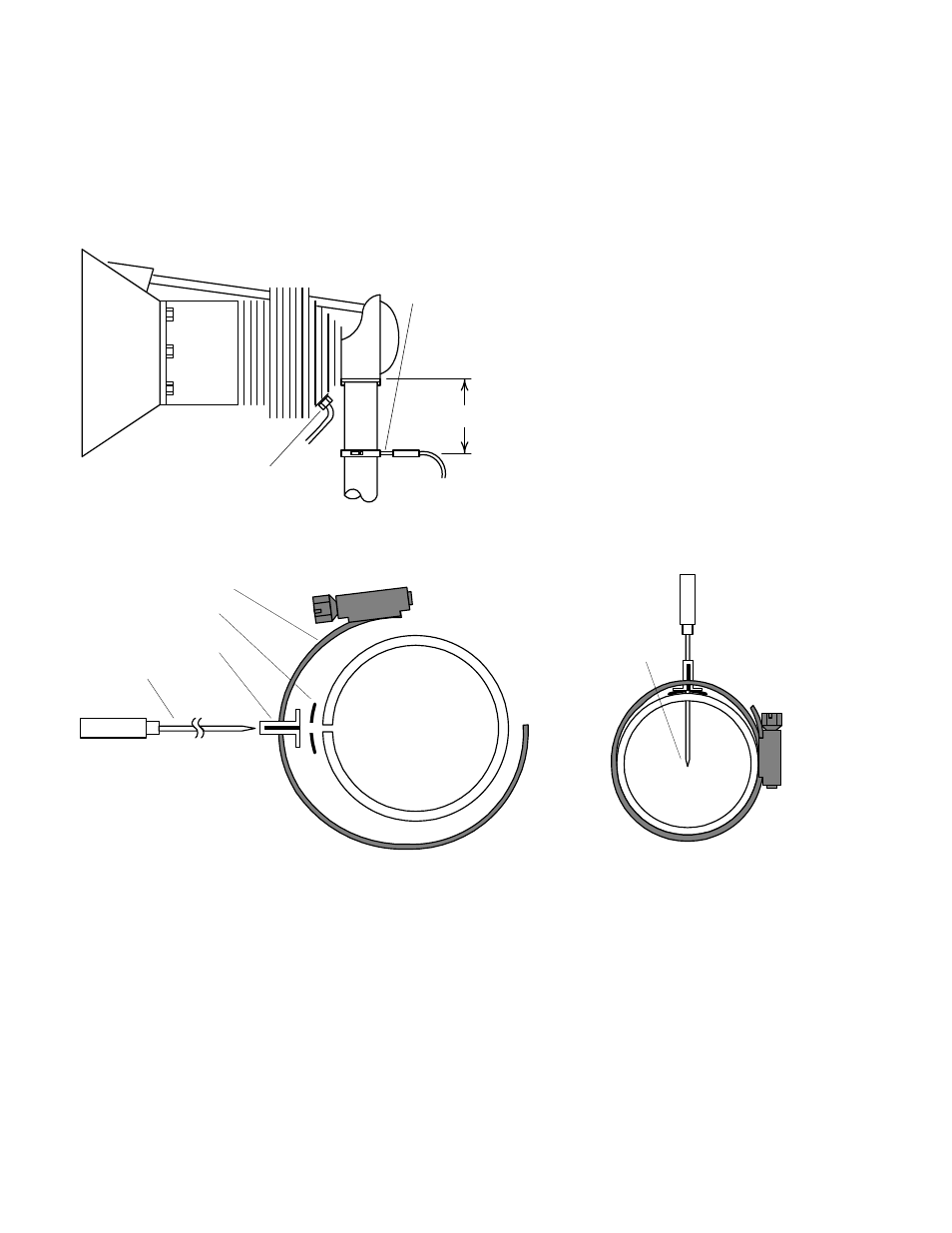

Insert the probe in the exhaust or previously drilled hole so that the tip of the probe is in the center of the exhaust
stream. Tighten the stainless steel clamp to a torque of 45 in/Lbs. Cut off the excess strap close to the screw.
Position probe
in approximate
center of
exhaust
Probe
Clamp
Thimble
note orientation of
slot
Seal Washer
13.1 R ADIAL Engine EGT
Radial engine exhaust, require a larger EGT clamp (supplied) to fit the 2.5 inch exhaust pipe. The EGT probe is installed in the
same fashion as a Lycoming or Continental engine and should be placed between the exhaust pipe flange and the accumulator
at a distance of 2 to 3 inches from the engine exhaust flange. Refer to the engine manufactures recommended location. Do not
route the EGT/CHT harness in with the ignition harness. Do not extend the yellow thermocouple leads with copper wire.
13.2 Turbine Inlet Temperature (TIT) Probe Installation (optional)
Use the J1 connector harness 790200 and insert the yellow wire into the connector pin 16 and the red wire into pin
17. The standard TIT probe PN M111-T with a #48 clamp is placed in the exhaust stack accumulator to a maximum
depth of 1/2 inch and approximately 4 inches from the turbine inlet if possible, on the waste-gate side of the turbine.
2" to 4"
EGT probe
Drill no. 40
pilot hole,
then no. 30
hole.
CHT probe
exhaust stack
