J.P. Instruments EDM 930 Primary Primary Installation Manual - Manual (Page 29)

FAA Approved Installation Manual for the Report No 908
EDM-900 and EDM-930 Page 29 of 50 Rev J
Primary Engine Data Management System Date 5-24-2014

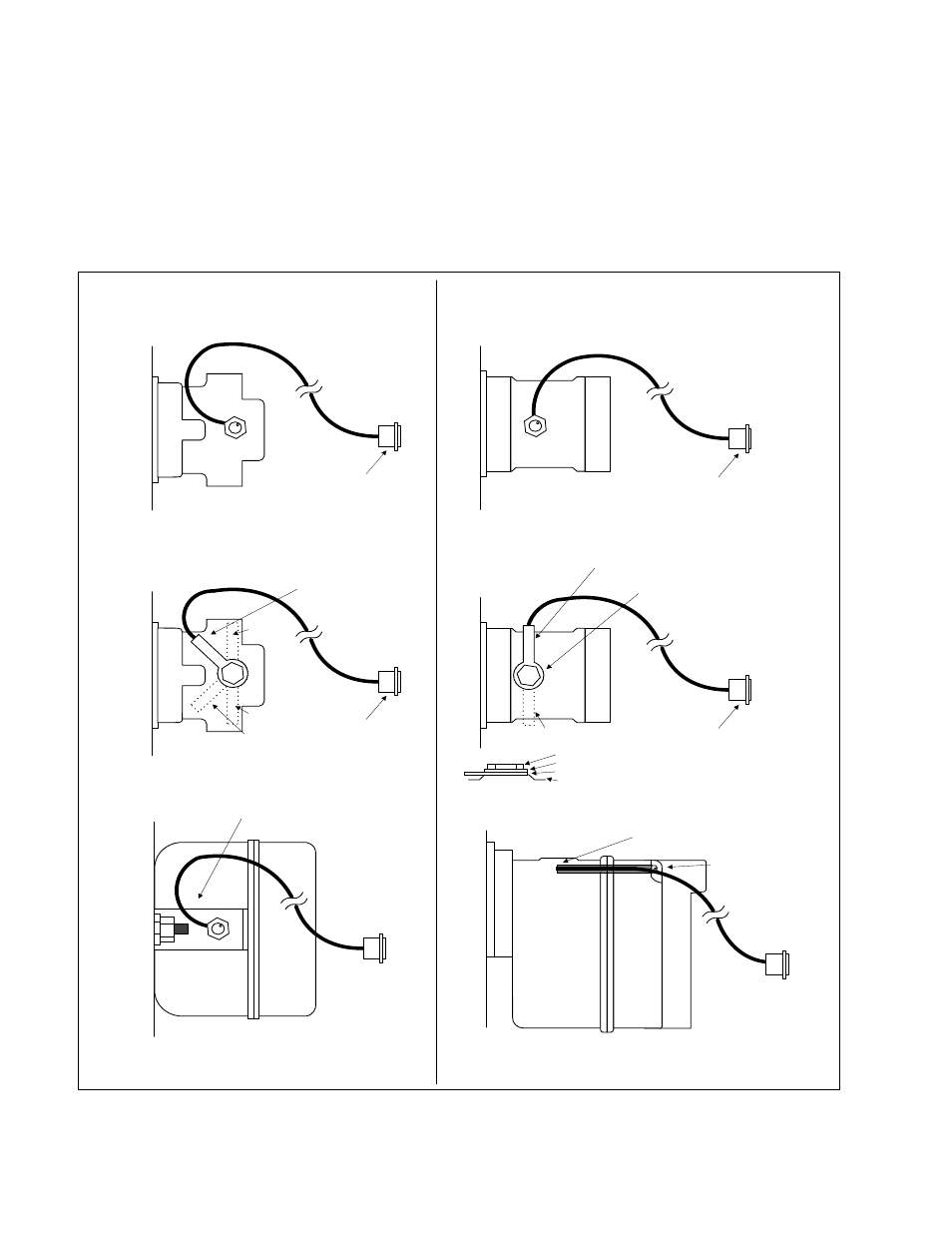

Bendix Magnetos Slick Magnetos
Bendix Dual Magneto
JPI PN 420808
non-pressurized
engine
Mount sensor side of bracket towards
magneto body
Bendix -20, -21, -200, 1200 series
non-pressurized
JPI 420815-2
Connector to harness
e
ngine
Connector to harness
Slick 6000, 4000 series
pressurized
JPI 420809
e
ngine
TO
P
Sensor ring munted under vent plug.
Stem at right angles to magneto center line
Mount sensor side of bracket towards
magneto body
Alternate bracket location
Vent plug
Spacer ring
Sensor ring bracket
Magneto body
Connector to harness
Slick 6000, 4000 series
non-pressurized
JPI 420815-1
e
ngine
Bendix 1200 series
pressurized
JPI 420807
Connector to harness
e
ngine
Alternate bracket locations
TO
P
position limit
position limit
Mount sensor side of bracket towards
magneto body, positioned over the magnet
armature
rev Dec 2010
en
gin
e
Slick 600 series
JPI PN 420806
non-pressurized
Sensor must be over
moving magnet armature
Remove this screw
to mount sensor
bracket
