FAA Approved Installation Manual for the Report No 908
EDM-900 and EDM-930 Page 23 of 50 Rev J
Primary Engine Data Management System Date 5-24-14
Getting Started…Collecting Fuel Level Calibration Data using the
EDM as a meter
.
1. With power off, hold in Button 4 (Button 1 being far left) and then turn on power. For each EDM
monitored tank, create a paper table with the desired number of calibration points (2 to 5) and at what
volume each will be. Number of calibration points to be entered into the system later. The zero gallon point
reading is always taken with unusable fuel in the tank. Example of a completed 3 point table for LEFT tank:
LEFT
F 39.0 GAL 1907
2 19.5 GAL 1154
E 0.0 GAL 685

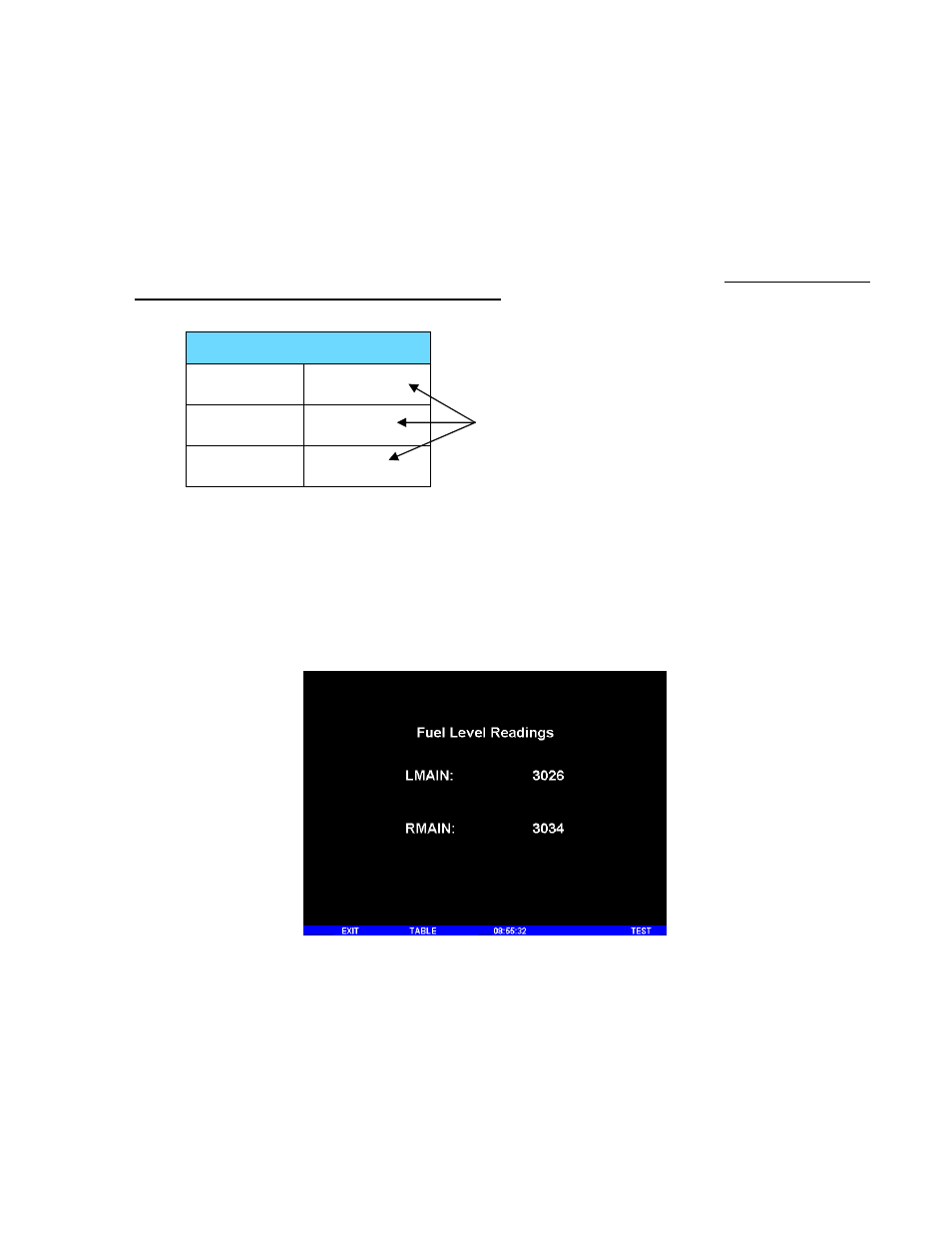

2. This screen shown below provides real-time readings of all active fuel level sensors. Verify readings look
normal. Reading are arbitrary whole numbers
3. Now add fuel as needed to match the required volume for a particular point. Cycle power between readings
(hold in button 4), then take a reading and record it on paper adjacent to that point.
4. Repeat this process until all points, 2 to 5, have been recorded for each tank.
With AUX it would
say LMAIN and
LAUX
Actual Screen Shot
Readings
