76 Model 6042 Origin 5/02
Operation

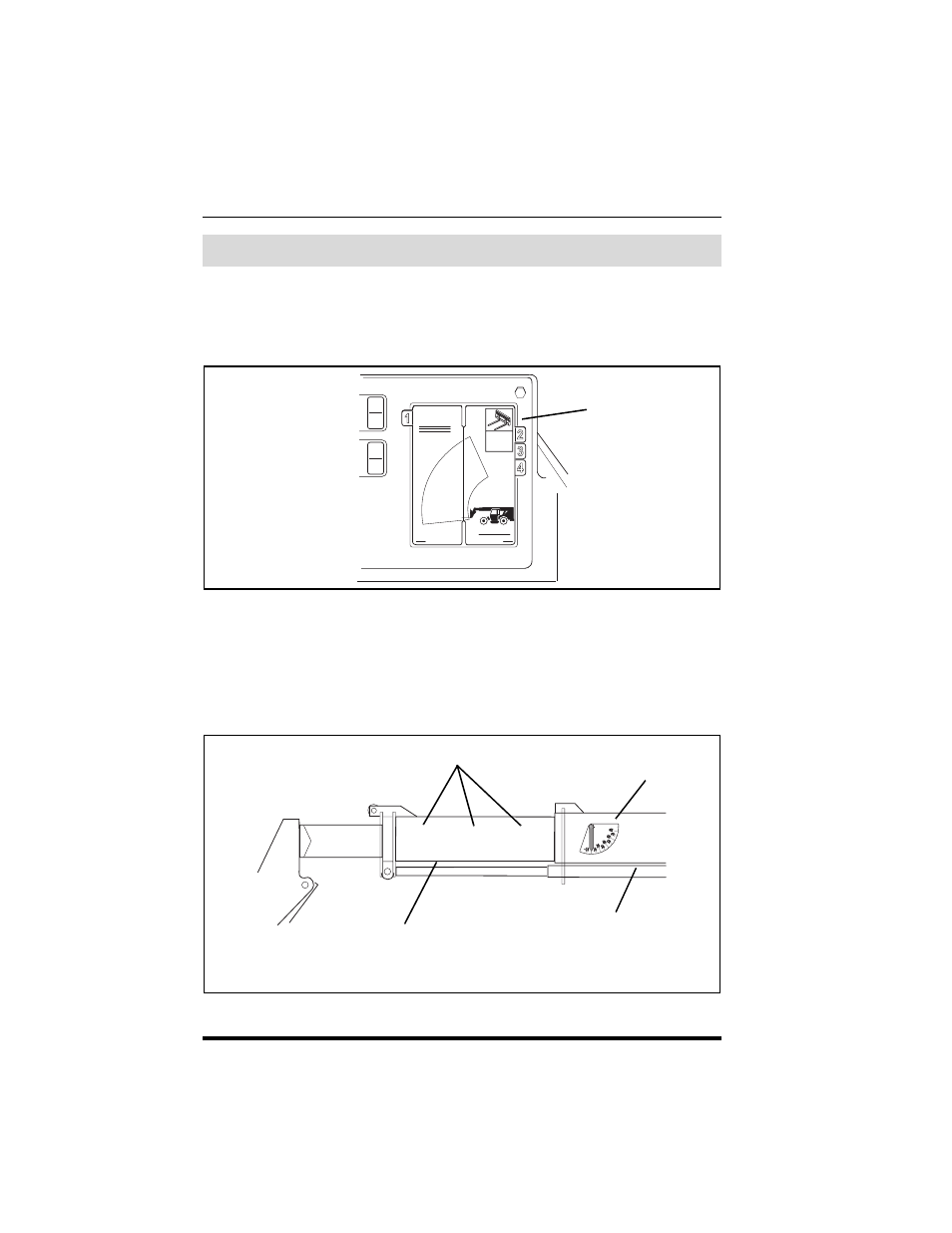

The individual capacity charts are located inside a booklet (Figure 51, 1) on
the right side of the front dash. Capacity charts are provided to assist the
operator in determining how far in front, how high and at what angle a
specific load can be safely handled with this vehicle.
Figure 51
The vehicle is equipped with two indicators that will assist the operator in
determining how to accurately use the capacity chart. These indicators are:
• Boom Extend Letters (Figure 52, 1) on the intermediate boom (2)
• Boom Angle Indicator (Figure 52, 3) on the outer boom (4)
Figure 52
Using The Capacity Chart
6042
OA1450
1
A B C A B C
OH1960
3
1
2
4
