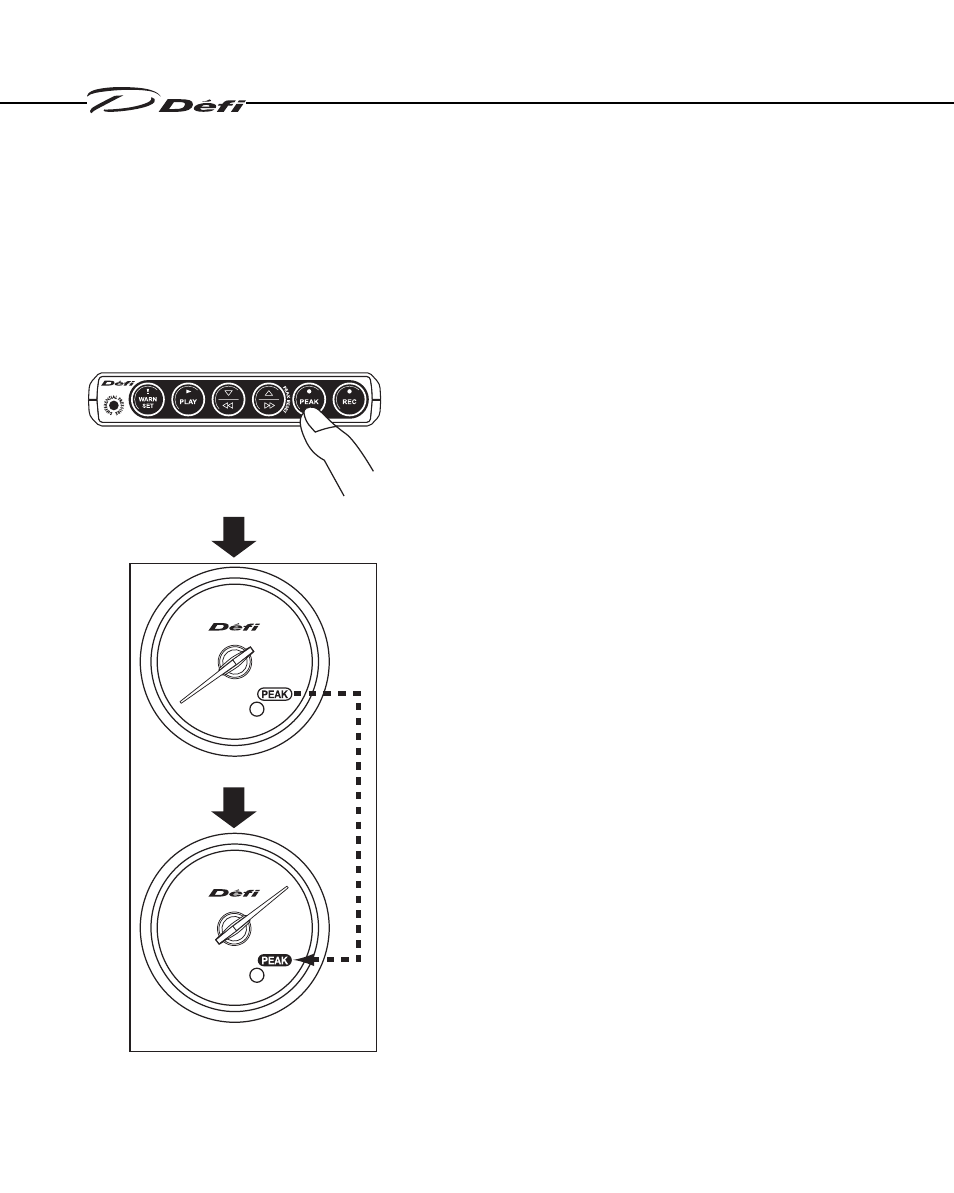

「REAL MODE」

The pointer displays the actual vehicle
condition in real time.

At the same time, the PEAK value is stored
in memory inside the Control Unit Ⅱ.

「PEAK MODE」

If the Control Unit Ⅱ PEAK switch is pressed
for less than 2 seconds, the PEAK LED is
illuminated.
This indicates PEAK MODE.

In PEAK MODE(PEAK LED is illuminated),
all meter pointers will display PEAK values
simultaneously.

The Control Unit Ⅱ records any new PEAK
values as they occur.(The memory function
is active even if the vehicle key is switched
OFF. Values stored in memory are not lost.)

If the PEAK switch is pressed again for less
than 2 seconds, the system will return to
REAL MODE.

If the UP switch is pressed in PEAK MODE,
all the PEAK LEDs flash and the peak values
of all meters are reset. Then all the meters
return to REAL MODE

.

「REAL MODE」

Control Unit Ⅱ

(B)Mode

「PEAK MODE」
