Double sided
tape b
91

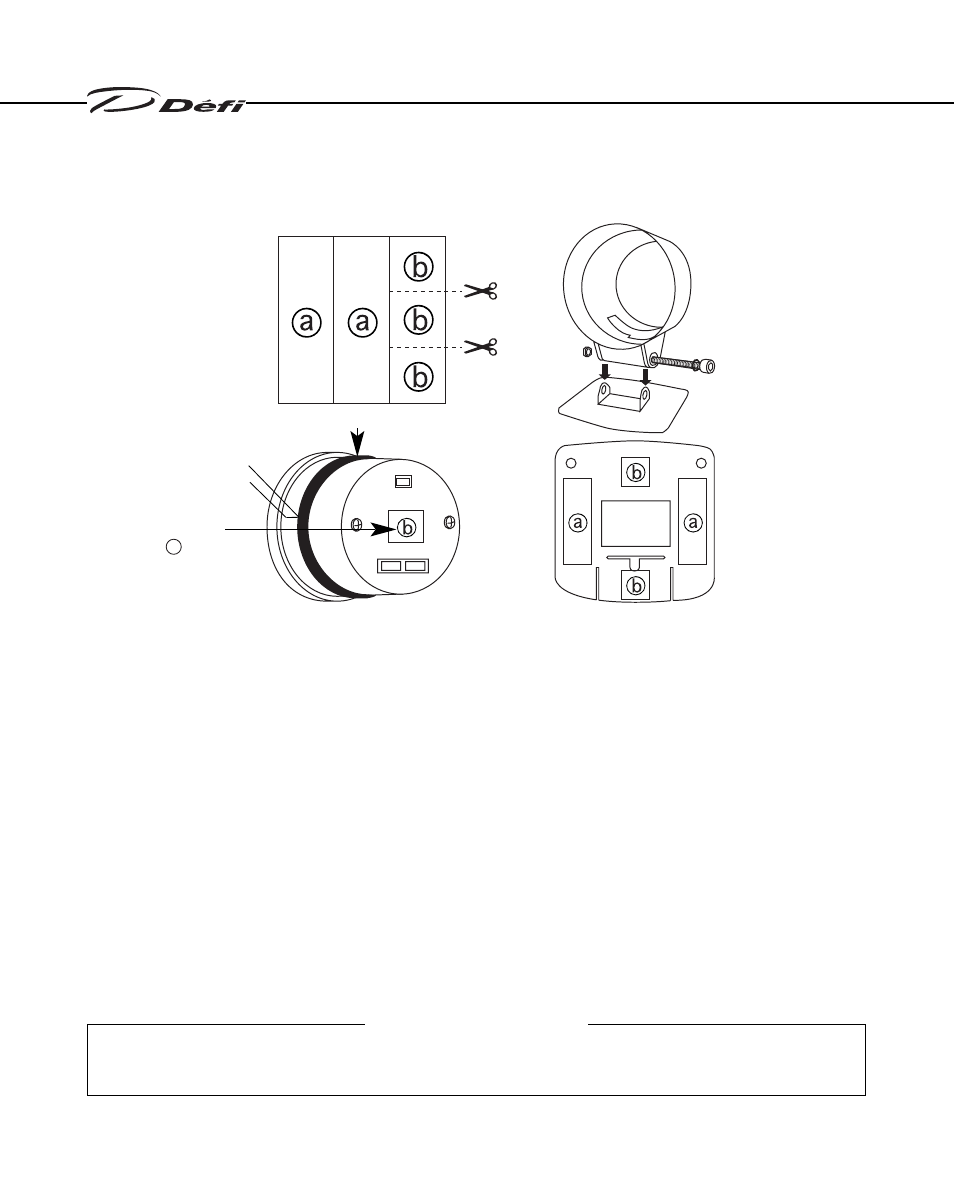

1.Cut the double sided tape as shown in figure 1.
2.Insert convex part of the mounting bracket over the legs of the meter cup.
Attach the mounting bracket to the meter cup with the nut and bolt included in
the kit as shown in figure 2.
3.Attach one piece of double sided tape and the buffer on the meter as shown in
figure 3.
4.Pass the meter wire through the hole of the meter cup and connect it to the
meter.
5.Place the meter in the meter cup making sure that the wire is not sandwiched.
6.Attach double sided tape on the back of the mounting bracket, bend the
mounting bracket to conform to the structure of the location where you intend
to attach it.
To avoid it falling off, use tapping screws (commercially available) to
permanently attach the mounting bracket.
Leave a space
from 2 to 5 mm
buffer
Mounting
bracket
(rear side）
●Use appropriate dashboard cleaning liquids (commercially available) to clean the
area where the double sided tape will be attached.
(A) 52mm, 60mm, 80mm meters, meter cup and meter cup holder
【figure 1】 【figure 2】
【figure 3】
【figure 4】
●HOW TO INSTALL METERS (for installation personnel)
CONFIRMATION
