96

Connector for meter wiring

(either side is OK)

WARNING LED(red)

PEAK LED

(Defi-Link Meter ――― green)
(Defi-Link Meter BF ― blue)

Connector for
Defi-Link Indicator

1

Bezel

Please read and understand the following before operating this instrument.

7.OPERATION(for customer)

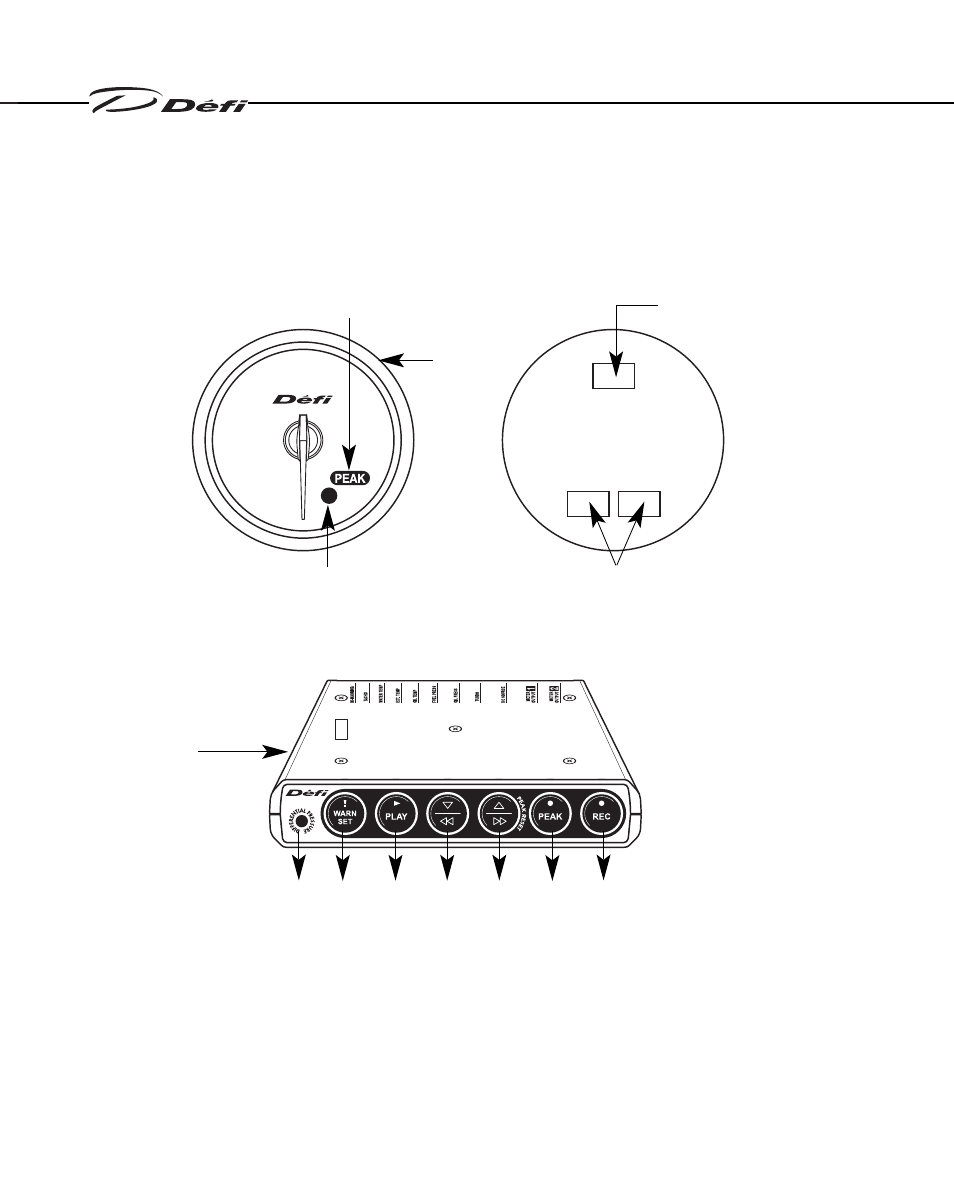

(A)Names of Parts

【Meter】

【Control Unit Ⅱ】

Meter output1 is for Defi-Link Meters

Meter output 2 is for Defi-Link Meter BFs

7 PLAY switch
8 DOWN switch
9 UP switch

10 PEAK switch
11 REC switch
12 M-WANING connector

5

6

7

8

9

10  1

12        

2 3 4

1 Cylinder selection switch
2 DC SOURCE (To power source)
3 Meter output1 connector
4 Meter output2 connector
5 Differential pressure mode LED
6 WARNING switch
