Underside
The following figure shows the underside of the computer.
Make sure the display is closed before turning over your computer.

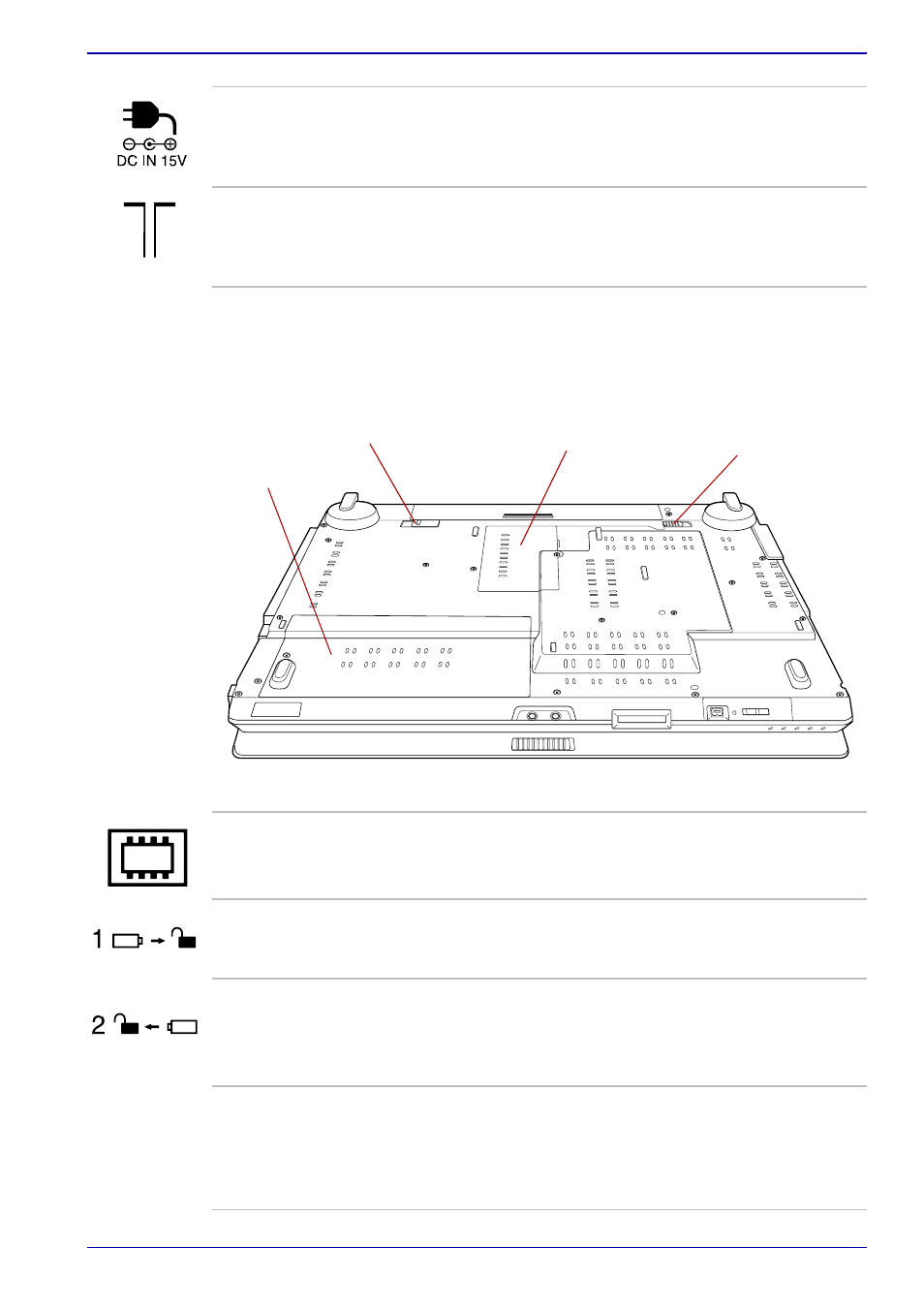

The underside of the computer
DC IN 15V jack The AC adaptor connects to this jack. Use only
the model of AC adaptor that comes with the
computer. Using the wrong adaptor can damage
your computer.
TV antenna port The TV antenna port is provided with some
models.
Connect the antenna adaptor to this port to watch
TV programs on your computer or record them.
Memory module cover
Battery lock
Battery release latch
Hard disk drive
Memory module
cover
This cover protects memory module sockets.
Refer to the Memory expansion section in
Chapter 9, Optional Devices .
Battery lock Slide the battery lock towards the release
position to make the battery release latch
movable.
Battery release
latch
Slide and hold this latch to release the battery
pack for removal.
For detailed information on removing the battery
packs, refer to Chapter 6, Power .
Hard disk drive This contains a Hard disk drive pack, which can
be removed and reinstalled. For more
information on how to remove or reinstall the
Hard disk drive pack , refer to the section on the
in Chapter 9, Optional Devices .
